LBitmap::TissueEqualize

Summary

Performs equalization between the hard tissue and the soft tissue in X-ray images, resulting in better quality for better interpretation and understanding of the image.

Syntax

#include "ltwrappr.h"

L_INT LBitmap::TissueEqualize(uFlags)

Parameters

L_UINT uFlags

Flags that indicate the type of processing. Possible values are:

Value Meaning
TISSUEEQUALIZE_INTENSIFY [0x00000002] Performs tissue equalization with contrast intensification.
TISSUEEQUALIZE_SIMPLIFY [0x00000001] Performs tissue equalization with simplification of intensity values across the image.

Returns

Value Meaning
SUCCESS The function was successful.
< 1 An error occurred. Refer to Return Codes.

Comments

If the bitmap has a region, the effect will be applied on the region only; otherwise the whole image will be processed.

This function supports DICOM images.

This function does not support 32-bit grayscale images. It returns the error code ERROR_GRAY32_UNSUPPORTED if a 32-bit grayscale image is passed to this function.

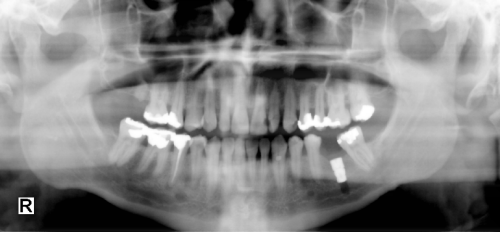

Tissue Equalize Function - Before

Tissue Equalize Function - Before

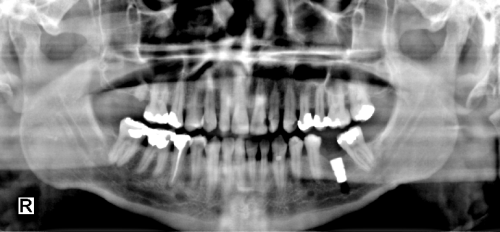

Tissue Equalize Function - After

Tissue Equalize Function - After

View additional platform support for this Tissue Equalize function.

Required DLLs and Libraries

Platforms

Win32, x64.

See Also

Functions

Topics

Example

L_INT LBitmap__TissueEqualizeExample()
{
   L_INT nRet;
   LBitmap LeadBitmap;

   nRet = LeadBitmap.Load(MAKE_IMAGE_PATH(TEXT("image2.dcm")), 0,ORDER_BGR);
   if(nRet !=SUCCESS)
      return nRet;


   nRet = LeadBitmap.TissueEqualize (TISSUEEQUALIZE_INTENSIFY);
   if(nRet !=SUCCESS)
      return nRet;

   return SUCCESS;
}
Help Version 22.0.2023.2.2
