LBitmap::GWireGetMinPath

Summary

Constructs a minimal path from the seed point to the target point and returns a pointer to L_POINT values that represents that path.

Syntax

#include "ltwrappr.h"

virtual L_INT LBitmap::GWireGetMinPath(hGWire, ptTarget, pOutPath, nOutLength)

Parameters

GWIREHANDLE hGWire

Pointer to the Gwire handle.

L_POINT ptTarget

Point structure that represent the end of minimal path.

L_POINT ** pOutPath

Pointer of a pointer to L_POINT values that represents the points along the minimal path.

L_INT* nOutLength

The length of the minimal path.

Returns

Value Meaning
SUCCESS The function was successful.
< 1 An error occurred. Refer to Return Codes.

Comments

This function is useful for extracting objects from an image. It works by constructing a minimal path between two input points (the seed point and the target point) that follows the edges of the image's objects. The minimal paths that are returned can be used to create a region covering the object of interest.

Call LBitmap::GWireInit and LBitmap::GWireSetSeedPoint before calling this function.

Free the path generated by this function by calling the LBitmap::FreeGWirePath function.

If the image contains a region the region is ignored. The GWire algorithm works on the entire image.

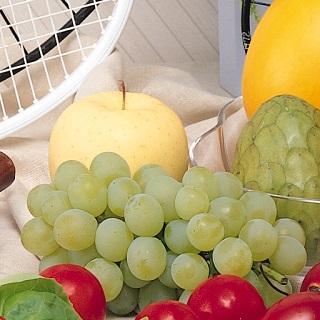

Gwire Tool Function - Before

Gwire Tool Function - Before

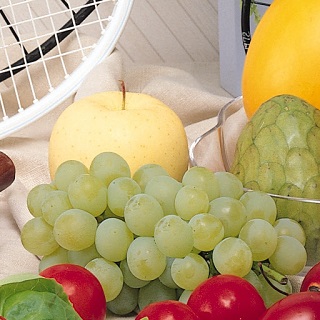

Gwire Tool Function - After

Gwire Tool Function - After

View additional platform support for this Gwire Tool function.

Required DLLs and Libraries

Platforms

Win32, x64.

See Also

Functions

Topics

Example

L_VOID FreeGWireData(LBitmap LeadBitmap,L_INT SeedPointsCount, L_POINT* PathsBuf[], GWIREHANDLE* pHGWire);

L_INT LBitmap__GWireExample()
{
   L_INT nRet;
   LBitmap LeadBitmap;   /* Bitmap handle to hold the loaded image. */

   /* Load the bitmap, keeping the bits per pixel of the file */
   nRet = LeadBitmap.Load(MAKE_IMAGE_PATH(TEXT("IMAGE3.dcm")), 0, ORDER_BGR);
   if(nRet !=SUCCESS)
      return nRet;

   pBITMAPHANDLE pBitmapHandle =  LeadBitmap.GetHandle();

   GWIREHANDLE HGWire ;
   L_INT       nExternalEnergy               = 90 ;
   const L_INT SeedPointsCount               = 9 ;
   L_POINT*    pOutPath[SeedPointsCount]     = {} ;
   L_INT       pOutLength[SeedPointsCount]   = {} ;
   L_POINT     SeedPoints[SeedPointsCount+1] ;
   L_INT       length                        = 0 ;

   nRet = LeadBitmap.GWireInit(&HGWire, nExternalEnergy);
   if (nRet != SUCCESS)
      return nRet ;

   SeedPoints[0].x = 200 ; SeedPoints[0].y = 163 ;
   SeedPoints[1].x = 245 ; SeedPoints[1].y = 195 ;
   SeedPoints[2].x = 289 ; SeedPoints[2].y = 163 ;
   SeedPoints[3].x = 282 ; SeedPoints[3].y = 188 ;
   SeedPoints[4].x = 304 ; SeedPoints[4].y = 314 ;
   SeedPoints[5].x = 247 ; SeedPoints[5].y = 271 ;
   SeedPoints[6].x = 201 ; SeedPoints[6].y = 315 ;
   SeedPoints[7].x = 228 ; SeedPoints[7].y = 199 ;
   SeedPoints[8].x = 199 ; SeedPoints[8].y = 175 ;
   SeedPoints[9].x = 200 ; SeedPoints[9].y = 163 ;

   // Loop over the list of SeedPoints to get the minimum path between each set of two points.
   // And add the minimum path between the two points to the AllPaths List.
   for (int index = 0 ; index < SeedPointsCount ; index++ )
   {
      // Set the seed point.

      nRet = LeadBitmap.GWireSetSeedPoint(HGWire, SeedPoints[index]);

      // Get the minimum path from the seed point to the target point.
      if(nRet == SUCCESS)
      {
         nRet = LeadBitmap.GWireGetMinPath(HGWire, SeedPoints[index+1], &(pOutPath[index]), &(pOutLength[index]));
         length += pOutLength[index] ;
      }

      if(nRet != SUCCESS)
      {
         FreeGWireData(LeadBitmap, SeedPointsCount, pOutPath, &HGWire);

         if(pBitmapHandle->Flags.Allocated)
            L_FreeBitmap(pBitmapHandle);

         return nRet ;
      }
   }

   L_POINT* pCombinedPaths = (L_POINT*) malloc((length)*sizeof(L_POINT));
   if(pCombinedPaths == NULL)
   {
      FreeGWireData(LeadBitmap,SeedPointsCount, pOutPath, &HGWire);

      //free bitmap
      if(pBitmapHandle->Flags.Allocated)
         L_FreeBitmap(pBitmapHandle);

      return ERROR_NO_MEMORY;
   }

   L_INT outIdx = 0 ;
   for(L_INT index = 0 ; index < 9 ; index++ )
   {
      memcpy(pCombinedPaths+outIdx, pOutPath[index], sizeof(L_POINT)*pOutLength[index]) ;
      outIdx += pOutLength[index] ;
   }

   FreeGWireData(LeadBitmap, SeedPointsCount, pOutPath, &HGWire) ;

   LBitmapRgn bitmapRgn;
   bitmapRgn.SetBitmap(&LeadBitmap) ;
   bitmapRgn.SetRgnPolygon(pCombinedPaths, length, L_POLY_WINDING);

   free(pCombinedPaths) ;

   if(nRet == SUCCESS)
   nRet = LeadBitmap.Save (MAKE_IMAGE_PATH(TEXT("Result.BMP")), FILE_BMP, 24, 0, NULL);
   if(nRet !=SUCCESS)
      return nRet;

   //free bitmap
   if(pBitmapHandle->Flags.Allocated)
      L_FreeBitmap(pBitmapHandle) ;

   return nRet ;
}

L_VOID FreeGWireData(LBitmap LeadBitmap,L_INT SeedPointsCount, L_POINT* PathsBuf[], GWIREHANDLE* pHGWire)
{
   for (int j = 0 ; j < SeedPointsCount ; j++)
   {
      LeadBitmap.FreeGWirePath(PathsBuf[j]);
   }

   LeadBitmap.DestroyGWireHandle(*pHGWire);
}
