LBitmap::PlasmaFilter

Summary

Applies color patterns that blend into each other like plasma.

Syntax

#include "ltwrappr.h"

L_INT LBitmap::PlasmaFilter(PlasmaInfo, uFlags = 0)

Parameters

pPLASMAINFO PlasmaInfo

Pointer to a PLASMAINFO structure that contains information about the plasma effect.

L_UINT32 uFlags

Reserved for future use. Must be 0.

Returns

Value	Meaning
SUCCESS	The function was successful.
< 1	An error occurred. Refer to Return Codes.

Comments

As an example, suppose you call the LBitmap::PlasmaFilter function, using a PLASMAINFO.uOpacity value of 0, which means that no image is to be used, and you use the following settings:

Parameter	Value
PLASMAINFO.uShift	0
PLASMAINFO.uOpacity	0
PLASMAINFO.uSize	1000
PLASMAINFO.uFlags	PLSTYP_RANDOM1 \| PLSCLR_RGB2

For an example, click here

To update a status bar or detect a user interrupt during execution of this function, refer to LBase::EnableStatusCallback.

This function supports 12 and 16-bit grayscale and 48 and 64-bit color images. Support for 12 and 16-bit grayscale and 48 and 64-bit color images is available only in the Document/Medical toolkits.

This function does not support signed data images. It returns the error code ERROR_SIGNED_DATA_NOT_SUPPORTED if a signed data image is passed to this function.

This function does not support 32-bit grayscale images. It returns the error code ERROR_GRAY32_UNSUPPORTED if a 32-bit grayscale image is passed to this function.

Plasma Function - Before

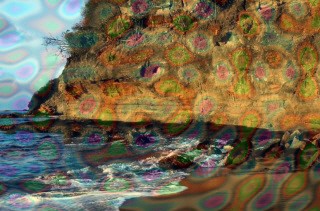

Plasma Function - After

View additional platform support for this Plasma function.

Required DLLs and Libraries

LTIMGSFX
For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application.

Platforms

Win32, x64.

Example

L_INT LBitmap__PlasmaFilterExample()
{
   L_INT nRet;
   PLASMAINFO PlasmaInfo;
   LBitmap LeadBitmap;
   PlasmaInfo.uStructSize = sizeof(PLASMAINFO);
   PlasmaInfo.uShift = 0;
   PlasmaInfo.uOpacity = 50;
   PlasmaInfo.uSize = 300;
   PlasmaInfo.uFlags = PLSTYP_DIAGONAL | PLSCLR_RGB2;

   nRet =LeadBitmap.Load(MAKE_IMAGE_PATH(TEXT("ImageProcessingDemo\\Image2.jpg")), 0,ORDER_BGR);
   if(nRet !=SUCCESS)
      return nRet;
   nRet =LeadBitmap.PlasmaFilter(&PlasmaInfo);
   if(nRet !=SUCCESS)
      return nRet;

   return SUCCESS;
}
