Barcode Demo Overview

This document describes how to use the basic features of the LEADTOOLS Barcode Demos, which demonstrate Barcode technology features. These enable you to:

To Start a LEADTOOLS Barcode Demo

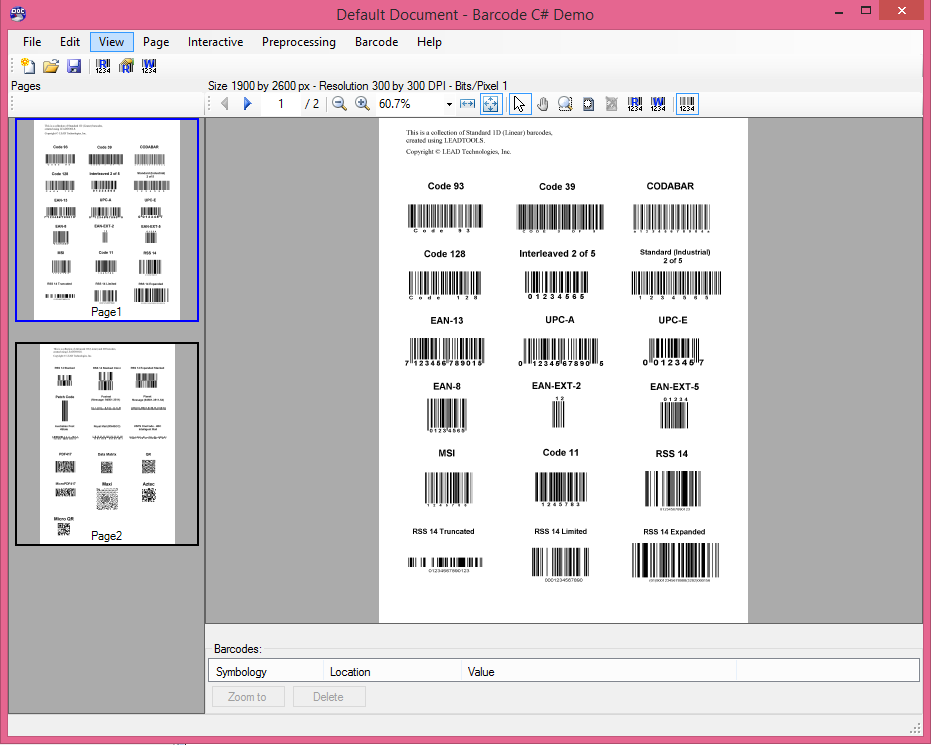

The LEADTOOLS Barcode Demo will launch and try to open the default sample barcode images (Barcode1.tif and Barcode2.tif) that ship with LEADTOOLS:

You can load your own image by accessing the "File/Open" menu item or "File/Scan/Acquire".

Reading Barcodes

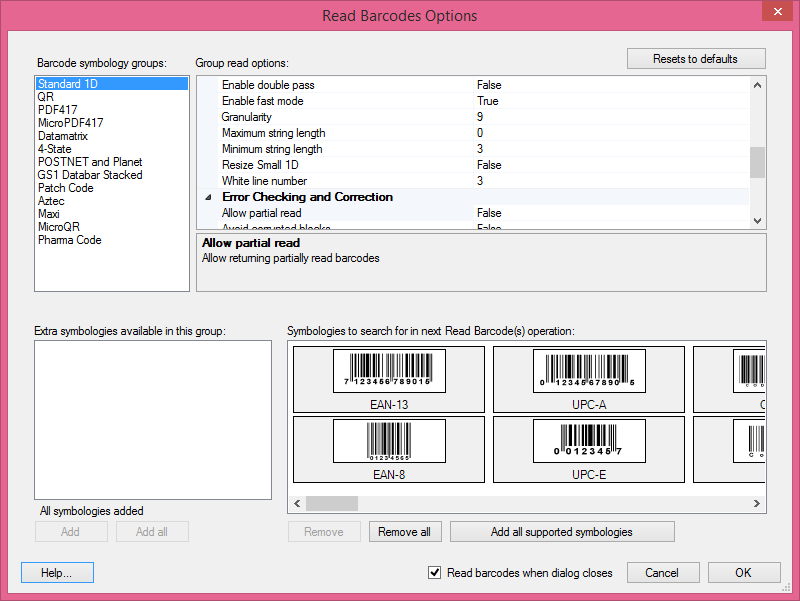

When you are ready for reading barcodes, select the "Barcode/Read Symbologies Options" to set up the read options. From this dialog, select which symbologies to read (by default all symbologies are selected). You can drill down to the individual symbology or group of symbologies read options and fine-tune the options to your needs:

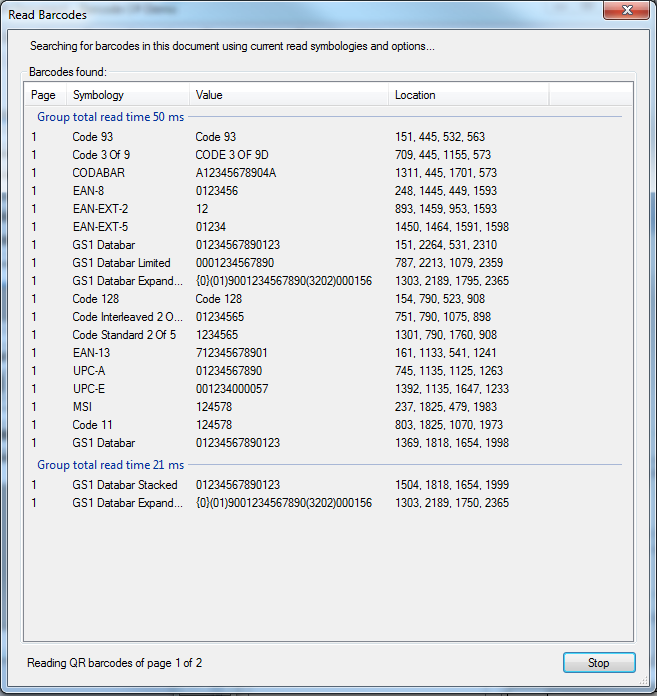

When you are satisfied with these options, click OK and the demo will automatically start reading the barcodes in the current open document. You can also read the barcodes at any time using the "Barcode/Read Barcodes" menu item (or hit the F5 keyboard shortcut). The demo will use the BarcodeReader.ReadSymbology event to show the barcodes as they are being read from the document:

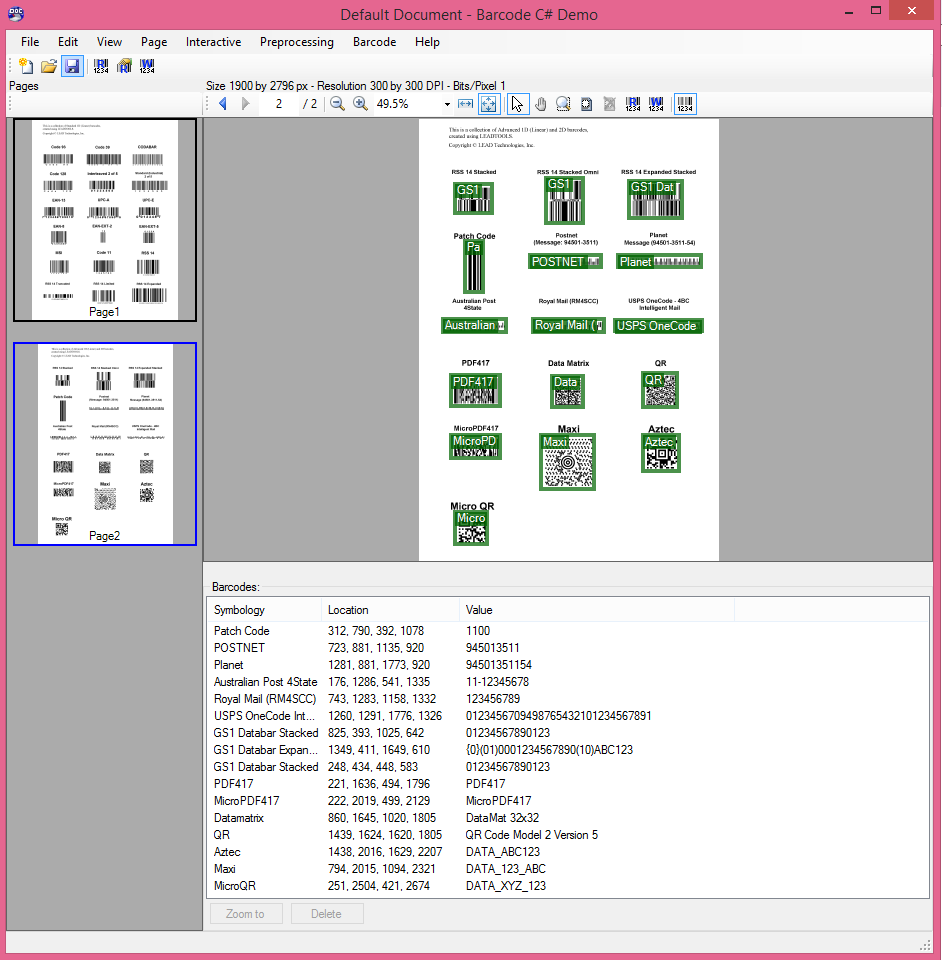

When the dialog finishes reading the barcodes, click OK and the demo will add the barcodes that have been read to the "Barcodes" list view, which is below the main view of the current page. Also, the demo will draw the barcodes on top of the image and will allow you to select specific barcodes to examine their properties using the mouse:

You can also read barcode(s) from a specific area of the page by either adding a region of interest ("Interactive/Region of interest" menu item) or directly rubber-banding the area of interest ("Interactive/Read barcode" menu item)

Writing Barcodes

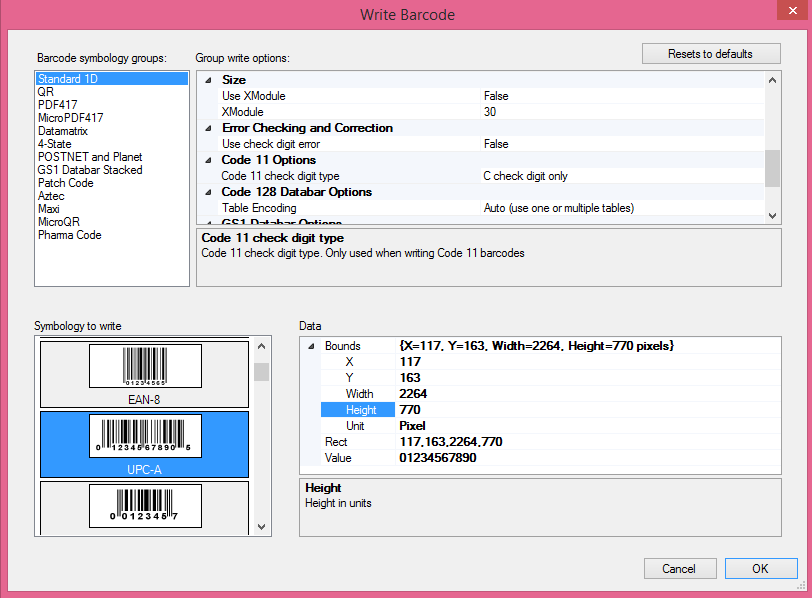

To write a barcode to the current open document page, select Barcode/Write barcode from the main menu (or select Interactive/Write barcode menu item). The following write barcode dialog will appear:

From this dialog, select the barcode symbology, its data and any extra options. In the example above, we selected to write a UPC Version A barcode with data equal to "01234567890" and at location (117, 163, 2264, 770 pixels).

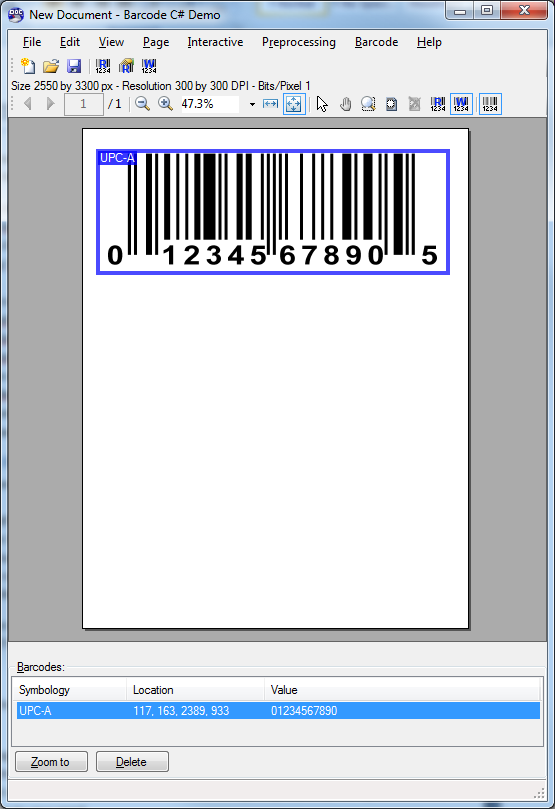

After clicking OK, the toolkit will try to write the specified barcode. If successful, the demo will add this new barcode to the Barcodes list view and draw it on top of the image:

The demo contains additional functionality such as loading/saving options or barcode data, zooming in and out, panning, and more.
