L_CompareBitmap

Summary

Compares two images for additions, deletions, and changes and generates an image with the differences highlighted.

Syntax

#include "l_bitmap.h"

L_LTIMGCOR_API L_INT L_CompareBitmap(pReferenceBitmap, pModifiedBitmap, pOutputBitmap, pAlignment, pOptions)

Parameters

pBITMAPHANDLE pReferenceBitmap

Pointer to the reference (original) bitmap.

pBITMAPHANDLE pModifiedBitmap

Pointer to the modified bitmap.

pBITMAPHANDLE pOutputBitmap

Pointer to a bitmap to be populated with the comparison results. See the comments below for more information.

L_MATRIX *pAlignment

Optional pointer to a transformation matrix used to overlay the modified bitmap onto the reference bitmap. If NULL is passed, no transformation will be performed and the images will be aligned to the top-left.

pCOMPAREOPTIONS pOptions

Pointer to the comparison options.

Returns

Value Meaning
SUCCESS The function was successful.
< 1 An error occurred. Refer to Return Codes.

Comments

The output image (pOutputBitmap) will be 3 bits-per-pixel. The first six entries of its palette are populated from the COMPAREOPTIONS structure (pOptions):

Index Value
0 pOptions->crOutputExternal
1 pOptions->crOutputBackground
2 pOptions->crOutputMatch
3 pOptions->crOutputAddition
4 pOptions->crOutputDeletion
5 pOptions->crOutputChange

Required DLLs and Libraries

Platforms

Win32, x64, Linux.

Example

This example shows how to compare an image to its modified and rotated version.

L_INT CompareBitmapExample(L_VOID)
{
   L_INT nRet = SUCCESS;
   BITMAPHANDLE ReferenceBitmap = { 0 }; // The original image
   BITMAPHANDLE ModifiedBitmap = { 0 }; // The modified image
   BITMAPHANDLE OutputBitmap = { 0 }; // The generated image
   COMPAREOPTIONS Options = { 0 }; // The comparison options
   L_MATRIX Alignment = { 0 }; // The alignment transformation for the modified image
   L_RECT RemoveRect = { 0 }; // The region to remove from an image

   // Load the original image
   nRet = L_LoadBitmap(MAKE_IMAGE_PATH(TEXT("ocr1.tif")), &ReferenceBitmap, sizeof(BITMAPHANDLE), 0, ORDER_BGRORGRAY, NULL, NULL);
   if (nRet != SUCCESS)
      goto cleanup;

   // Use the same image for the "modified" image
   nRet = L_CopyBitmap(&ModifiedBitmap, &ReferenceBitmap, sizeof(BITMAPHANDLE));
   if (nRet != SUCCESS)
      goto cleanup;

   // Remove the last paragraph of the reference image
   L_Rect_Make(&RemoveRect, 290, 2470, 1930, 360);
   nRet = L_SetBitmapRgnRect(&ReferenceBitmap, NULL, &RemoveRect, L_RGN_SET);
   if (nRet != SUCCESS)
      goto cleanup;
   nRet = L_FillBitmap(&ReferenceBitmap, RGB(255, 255, 255));
   if (nRet != SUCCESS)
      goto cleanup;
   nRet = L_FreeBitmapRgn(&ReferenceBitmap);
   if (nRet != SUCCESS)
      goto cleanup;

   // Remove the title from the modified image
   L_Rect_Make(&RemoveRect, 290, 300, 810, 110);
   nRet = L_SetBitmapRgnRect(&ModifiedBitmap, NULL, &RemoveRect, L_RGN_SET);
   if (nRet != SUCCESS)
      goto cleanup;
   nRet = L_FillBitmap(&ModifiedBitmap, RGB(255, 255, 255));
   if (nRet != SUCCESS)
      goto cleanup;
   nRet = L_FreeBitmapRgn(&ModifiedBitmap);
   if (nRet != SUCCESS)
      goto cleanup;

   // Rotate the modified image for demonstration (angle measured in hundredths of a degree)
   nRet = L_RotateBitmap(&ModifiedBitmap, 340 * 100, ROTATE_RESIZE, RGB(0, 0, 0));
   if (nRet != SUCCESS)
      goto cleanup;

   // Update the transformation to align/reverse the above rotation
   L_Matrix_Identity(&Alignment);
   L_Matrix_Translate(&Alignment, -ModifiedBitmap.Width * 0.5, -ModifiedBitmap.Height * 0.5);
   L_Matrix_Rotate(&Alignment, 20.0);
   L_Matrix_Translate(&Alignment, ReferenceBitmap.Width * 0.5, ReferenceBitmap.Height * 0.5);

   // Setup the comparison options
   Options.uStructSize = sizeof(COMPAREOPTIONS);
   Options.uThreshold = 0; // The images are bitonal, no need for measuring color distance
   Options.crReferenceBackground = RGB(255, 255, 255); // White
   Options.crReferenceForeground = RGB(0, 0, 0); // Black
   Options.crModifiedBackground = RGB(255, 255, 255); // White
   Options.crModifiedForeground = RGB(0, 0, 0); // Black
   Options.crOutputExternal = RGB(128, 128, 255); // Light blue
   Options.crOutputBackground = RGB(255, 255, 255); // White
   Options.crOutputMatch = RGB(64, 64, 64); // Dark gray
   Options.crOutputAddition = RGB(0, 255, 0); // Green
   Options.crOutputDeletion = RGB(255, 0, 0); // Red
   Options.crOutputChange = RGB(255, 255, 0); // Yellow

   // Compare the images
   nRet = L_CompareBitmap(&ReferenceBitmap, &ModifiedBitmap, &OutputBitmap, &Alignment, &Options);
   if (nRet != SUCCESS)
      goto cleanup;

   // Save the results
   nRet = L_SaveBitmap(MAKE_IMAGE_PATH(TEXT("CompareBitmap_Output.png")), &OutputBitmap, FILE_PNG, 0, 0, NULL);
   if (nRet != SUCCESS)
      goto cleanup;

   // Save the two input images, for reference
   nRet = L_SaveBitmap(MAKE_IMAGE_PATH(TEXT("CompareBitmap_Reference.png")), &ReferenceBitmap, FILE_PNG, 0, 0, NULL);
   if (nRet != SUCCESS)
      goto cleanup;
   nRet = L_SaveBitmap(MAKE_IMAGE_PATH(TEXT("CompareBitmap_Modified.png")), &ModifiedBitmap, FILE_PNG, 0, 0, NULL);
   if (nRet != SUCCESS)
      goto cleanup;

cleanup:

   // Free the loaded images
   if (ReferenceBitmap.Flags.Allocated)
      L_FreeBitmap(&ReferenceBitmap);
   if (ModifiedBitmap.Flags.Allocated)
      L_FreeBitmap(&ModifiedBitmap);
   if (OutputBitmap.Flags.Allocated)
      L_FreeBitmap(&OutputBitmap);

   return nRet;
}

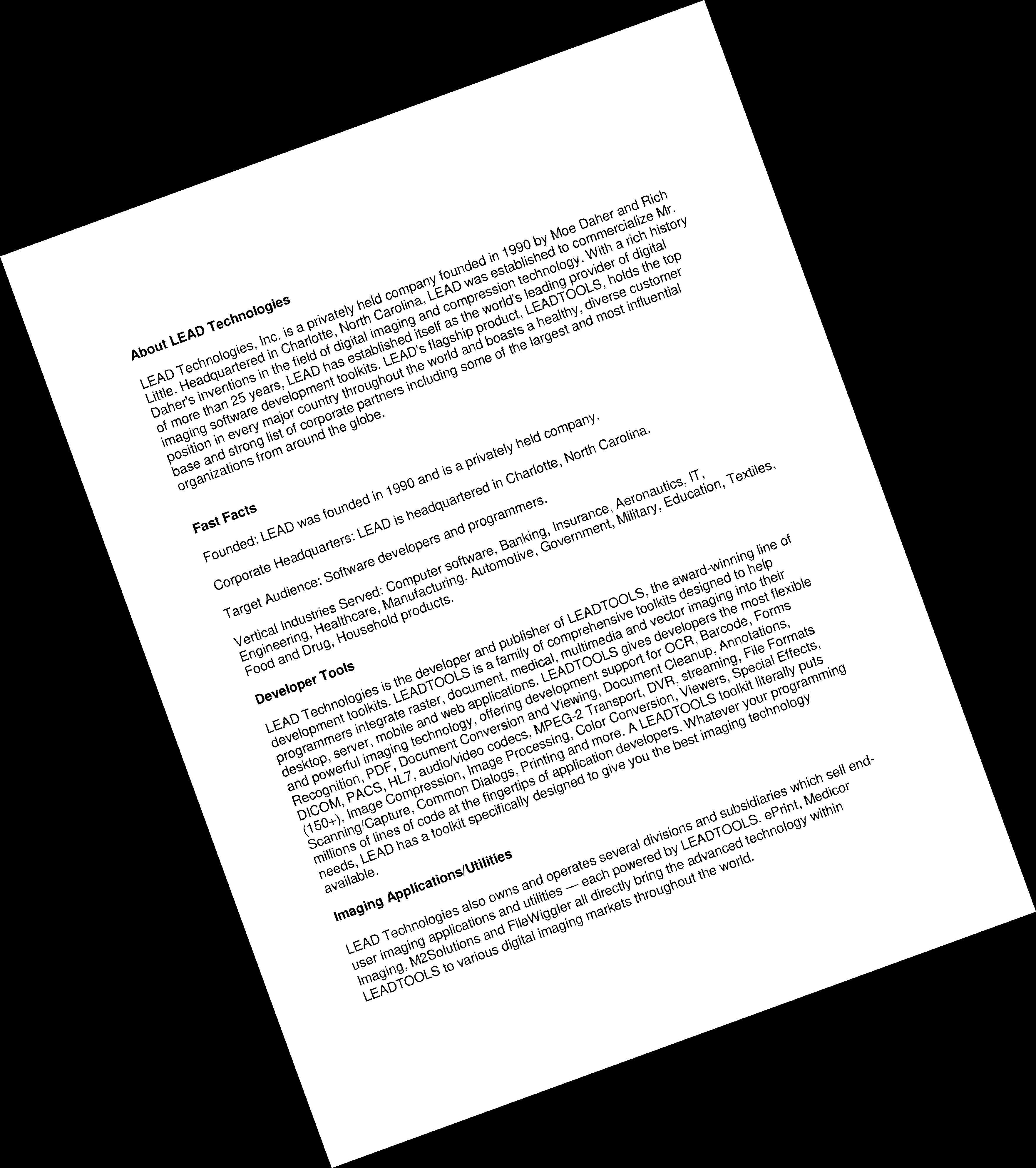

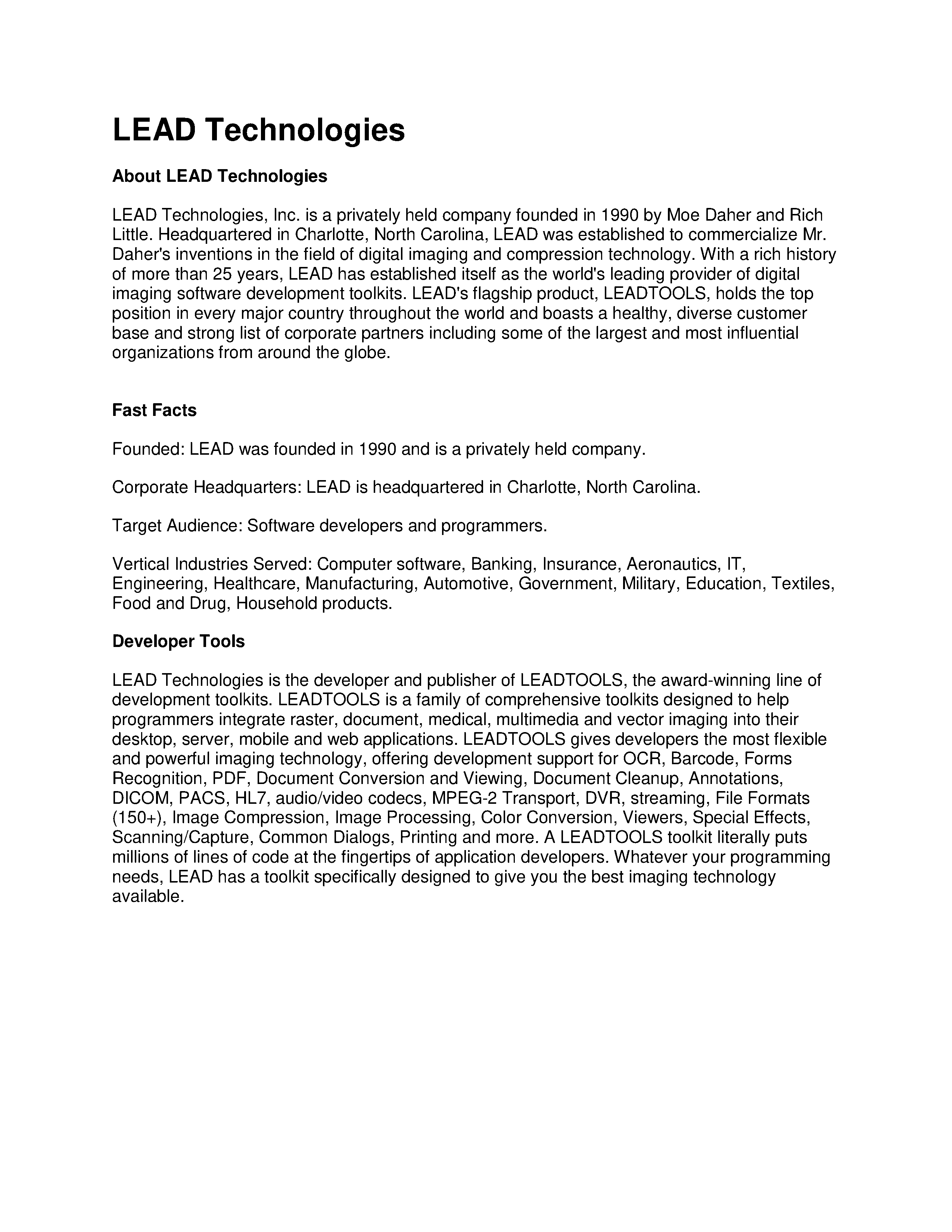

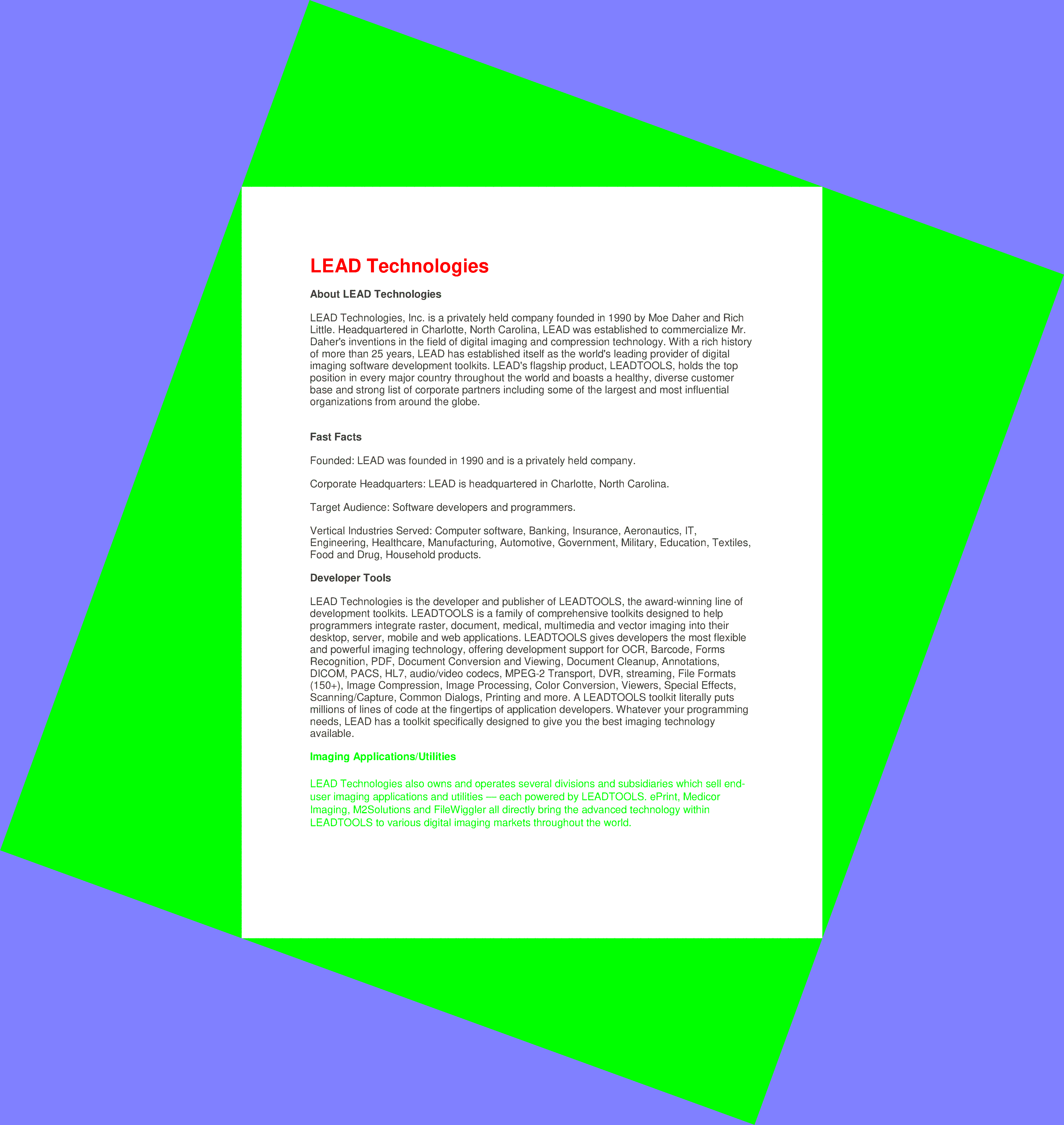

Reference, Modified, and Output Images

The following images are generated when the example is run:
