Removes the distortion in an image of a cylindrical object, as if removing a label from off of the cylinder and flattening it out.


#include "Ltimgcor.h"

L_LTIMGCOR_API L_INT L_UnWarp(pInputBitmap, pOutputBitmap, pPoints, uFlags)



Pointer to the input bitmap handle.


Pointer to the output bitmap handle.

L_POINT * pPoints

Pointer to an array of L_POINT structures that represents the locations of the input points on the distorted image.

L_UINT uFlags

Reserved for future use.


Value Meaning
SUCCESS The function was successful.
< 1 An error occurred. Refer to Return Codes.

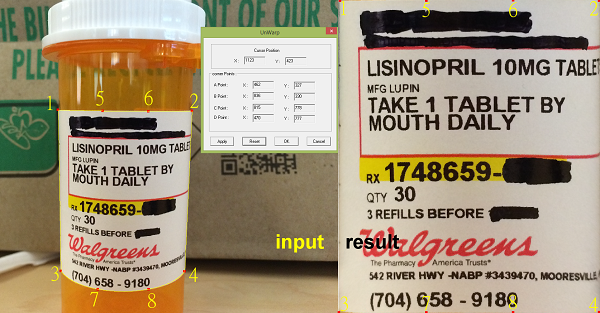

Typically, this function is used in preprocessing images from digital cameras. This function requires an array of 8 points. An Invalid Parameters Exception will be thrown if no array of 8 points is passed. The following image shows the use of this function to flatten a label from a pill bottle. The numbers on the label represent the points in the array. The four corners (1, 2, 3, and 4) are fixed points. The interior points on the label (5, 6, 7, and 8) are the ones that are moved to flatten the image.


Use the L_UnWarp function if the image contains a distortion of a cylindrical object. Use the L_ManualPerspectiveDeskew, L_PerspectiveDeskew / L_PerspectiveDeskewExt, or L_Keystone function if there is a planar deformation along all three axes. Use the L_DeskewBitmap function if there is deformation along both the x- and y- axes.

This function supports 24- and 36-bit color images, 8-bit grayscale images, and 1-bit binarized images.

This function supports signed/unsigned images.

UnWarp Function - Before

UnWarp Function - Before

UnWarp Function - After

UnWarp Function - After

View additional platform support for this UnWarp function.

Required DLLs and Libraries


Win32, x64, Linux.

See Also




#define MAKE_IMAGE_PATH(pFileName) TEXT("C:\\LEADTOOLS22\\Resources\\Images\\")pFileName
extern "C" L_INT UnWarpExample(L_VOID)
   L_INT nRet;
   BITMAPHANDLE inputBitmap;    /* Bitmap handle for the initial image */
   BITMAPHANDLE OutputBitmap = { 0 }; /* Pointer to bitmap handle for the output image */
   L_POINT pPoints[8];          /* Points that define how to unwarp the image */
   /* Load the input bitmap */
   nRet = L_LoadBitmap(MAKE_IMAGE_PATH(TEXT("UnWarp1.JPG")), &inputBitmap, sizeof(BITMAPHANDLE), 0, ORDER_BGR, NULL, NULL);
   if (nRet != SUCCESS)
      return nRet;
   /* Populate the pPoints list */
   L_Point_Make(pPoints + 0, 1205, 852); // Top left
   L_Point_Make(pPoints + 1, 2176, 853); // Top right
   L_Point_Make(pPoints + 2, 2128, 1998); // Bottom right
   L_Point_Make(pPoints + 3, 1217, 1997); // Bottom left
   L_Point_Make(pPoints + 4, 1528, 853); // Top left third
   L_Point_Make(pPoints + 5, 1853, 853); // Top right third
   L_Point_Make(pPoints + 6, 1520, 2159); // Bottom left third
   L_Point_Make(pPoints + 7, 1825, 2162); // Bottom right third
   /* Perform the unwarp */
   nRet = L_UnWarp(&inputBitmap, &OutputBitmap, pPoints, 0);
   if (nRet != SUCCESS)
      return nRet;
   /* Save the result */
   nRet = L_SaveBitmap(MAKE_IMAGE_PATH(TEXT("Result.BMP")), &OutputBitmap, FILE_BMP, 0, 0, NULL);
   /* Free the bitmaps */
   return SUCCESS;
