PosterizeCommand Class

Summary

Imposes a poster effect on an image by quantizing the image's colors to a specified number of color levels per plane. For example, two levels means two of red, two of green, and two of blue.

Syntax

C#

Objective-C

C++/CLI

Java

Python

public class PosterizeCommand : RasterCommand

@interface LTPosterizeCommand : LTRasterCommand

public class PosterizeCommand
    extends RasterCommand

public ref class PosterizeCommand : public RasterCommand

class PosterizeCommand(RasterCommand):

Remarks

This command supports 12 and 16-bit grayscale and 48 and 64-bit color images. Support for 12 and 16-bit grayscale and 48 and 64-bit color images is available only in the Document/Medical toolkits.
This command does not support 32-bit grayscale images.

If the image has a LUT and you want to work on the image data, set RasterImage.UseLookupTable to false. Then, after calling the method, reset the UselookupTable property to true, as follows:

rasterImage.UseLookupTable = false;
Method(rasterImage);
rasterImage.UseLookupTable = true;

For more information, refer to Applying Artistic Effects.

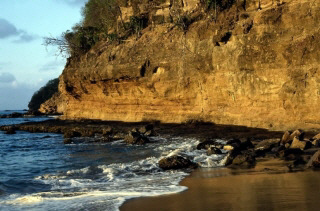

Posterize Function - Before

Posterize Function - Before

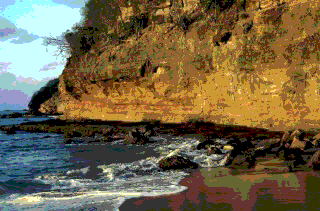

Posterize Function - After

Posterize Function - After

View additional platform support for this Posterize function.

Example

Run the PosterizeCommand on an image and posterize it.

C#

Java

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.Color;


public void PosterizeCommandCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "IMAGE1.CMP"));

   // Prepare the command
   PosterizeCommand command = new PosterizeCommand();
   //Apply a poster effect with twelve color levels per plane.
   command.Levels = 12;
   command.Run(image);
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS23\Resources\Images";
}


import java.io.File;
import java.io.IOException;

import org.junit.*;
import org.junit.runner.JUnitCore;
import org.junit.runner.Result;
import org.junit.runner.notification.Failure;
import static org.junit.Assert.assertTrue;

import leadtools.*;
import leadtools.codecs.*;
import leadtools.imageprocessing.color.PosterizeCommand;


public void posterizeCommandCommandExample() {

   final String LEAD_VARS_IMAGES_DIR = "C:\\LEADTOOLS23\\Resources\\Images";
   final String OUTPUT_FILE_PATH = combine(LEAD_VARS_IMAGES_DIR, "Result.jpg");

   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.setThrowExceptionsOnInvalidImages(true);

   RasterImage image = codecs.load(combine(LEAD_VARS_IMAGES_DIR, "IMAGE1.CMP"));

   // Prepare the command
   PosterizeCommand command = new PosterizeCommand();
   // Apply a poster effect with twelve color levels per plane.
   command.setLevels(12);
   command.run(image);
   codecs.save(image, OUTPUT_FILE_PATH, RasterImageFormat.JPEG, 0);

   System.out.println("Command run and image saved to " + OUTPUT_FILE_PATH);
   assertTrue(new File(OUTPUT_FILE_PATH).exists());

}

Requirements

Target Platforms

See Also

Reference

PosterizeCommand Members

Leadtools.ImageProcessing.Color Namespace

Applying Artistic Effects
