OffsetCommand Class

Summary

Shifts the image data horizontally and vertically.

Syntax

Objective-C

C++/CLI

Java

Python

public class OffsetCommand : RasterCommand

@interface LTOffsetCommand : LTRasterCommand

public class OffsetCommand
    extends RasterCommand

public ref class OffsetCommand : public RasterCommand

class OffsetCommand(RasterCommand):

Remarks

This command supports 12 and 16-bit grayscale and 48 and 64-bit color images. Support for 12 and 16-bit grayscale and 48 and 64-bit color images is available only in the Document/Medical toolkits.
This command does not support signed data images.
This command does not support 32-bit grayscale images.

For more information, refer to Applying Artistic Effects.

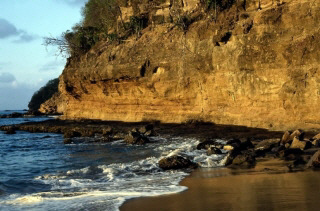

Offset Function - Before

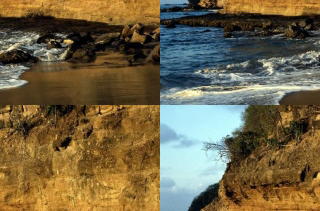

Offset Function - After

View additional platform support for this Offset function.

Example

Run the OffsetCommand on an image.

Java

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.Effects;


public void OffsetCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, @"ImageProcessingDemo\NaturalFruits.jpg"));

   // Prepare the command
   OffsetCommand command = new OffsetCommand();
   command.HorizontalShift = image.Width / 2;
   command.VerticalShift = image.Height / 2;
   command.BackColor = new RasterColor(128, 128, 128);
   command.Type = OffsetCommandType.Color;
   //Apply offset on the image.
   command.Run(image);
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS23\Resources\Images";
}


import java.io.File;
import java.io.IOException;

import org.junit.*;
import org.junit.runner.JUnitCore;
import org.junit.runner.Result;
import org.junit.runner.notification.Failure;
import static org.junit.Assert.*;

import leadtools.*;
import leadtools.codecs.*;
import leadtools.imageprocessing.effects.*;


public void offsetCommandExample() {
   final String LEAD_VARS_IMAGES_DIR = "C:\\LEADTOOLS23\\Resources\\Images";

   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.setThrowExceptionsOnInvalidImages(true);

   RasterImage image = codecs.load(combine(LEAD_VARS_IMAGES_DIR, "NaturalFruits.jpg"));

   // Prepare the command
   OffsetCommand command = new OffsetCommand();
   command.setHorizontalShift(image.getWidth() / 2);
   command.setVerticalShift(image.getHeight() / 2);
   command.setBackColor(new RasterColor(128, 128, 128));
   command.setType(OffsetCommandType.COLOR);

   // Apply offset on the image.
   int change = command.run(image);
   assertTrue(change != RasterImageChangedFlags.NONE);

   codecs.save(image, combine(LEAD_VARS_IMAGES_DIR, "Result.jpg"), RasterImageFormat.JPEG, 24);
   System.out.println("Command run, image saved to " + combine(LEAD_VARS_IMAGES_DIR, "Result.jpg"));
}
