ChangeIntensityCommand Class

Summary

Changes the intensity (brightness) of the image.

Syntax

Objective-C

C++/CLI

Java

Python

public class ChangeIntensityCommand : RasterCommand

@interface LTChangeIntensityCommand : LTRasterCommand

public class ChangeIntensityCommand
    extends RasterCommand

public ref class ChangeIntensityCommand : public RasterCommand

class ChangeIntensityCommand(RasterCommand):

Remarks

This command supports 12 and 16-bit grayscale and 48 and 64-bit color images. Support for 12 and 16-bit grayscale and 48 and 64-bit color images is available only in the Document/Medical toolkits.
This command does not support 32-bit grayscale images.
This command supports signed/unsigned data images.

If the image has a LUT and you want to work on the image data, set RasterImage.UseLookupTable to false. Then, after calling the method, reset the UselookupTable property to true, as follows:

rasterImage.UseLookupTable = false;
Method(rasterImage);
rasterImage.UseLookupTable = true;

For more information, refer to Correcting Colors.

For more information, refer to Changing Brightness and Contrast.

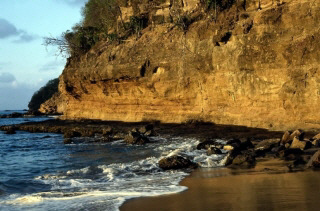

Change Intensity Function - Before

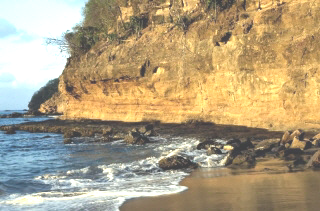

Change Intensity Function - After

View additional platform support for this Change Intensity function.

Example

Run the ChangeIntensityCommand on an image and increase its intensity.

Java

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.Color;


public void ChangeIntensityCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "ImageProcessingDemo\\Image1.jpg"));

   // Prepare the command
   ChangeIntensityCommand command = new ChangeIntensityCommand();
   //Increase the brightness by 25 percent  of the possible range.
   command.Brightness = 250;
   command.Run(image);
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS23\Resources\Images";
}


import java.io.File;
import java.io.IOException;

import org.junit.*;
import org.junit.runner.JUnitCore;
import org.junit.runner.Result;
import org.junit.runner.notification.Failure;
import static org.junit.Assert.*;

import leadtools.*;
import leadtools.codecs.*;
import leadtools.imageprocessing.color.ChangeIntensityCommand;


public void changeIntensityCommandExample() {

    final String LEAD_VARS_IMAGES_DIR = "C:\\LEADTOOLS23\\Resources\\Images";

    // Load an image
    RasterCodecs codecs = new RasterCodecs();
    codecs.setThrowExceptionsOnInvalidImages(true);

    RasterImage image = codecs.load(combine(LEAD_VARS_IMAGES_DIR, "Image1.jpg"));

    // Prepare the command
    ChangeIntensityCommand command = new ChangeIntensityCommand();

    // Increase the brightness by 25 percent of the possible range
    command.setBrightness(250);
    command.run(image);
    codecs.save(image, combine(LEAD_VARS_IMAGES_DIR, "Result.jpg"), RasterImageFormat.JPEG, 24);

    assertTrue(new File(combine(LEAD_VARS_IMAGES_DIR, "Result.jpg")).exists());
    System.out.println("Command run and image saved to " + combine(LEAD_VARS_IMAGES_DIR, "Result.jpg"));

}
