BinaryFilterCommand Class

Summary

Imposes a binary filter on an image. This command is available in the Document/Medical Toolkits.

Syntax

Objective-C

C++/CLI

Java

Python

public class BinaryFilterCommand : RasterCommand

@interface LTBinaryFilterCommand : LTRasterCommand

public class BinaryFilterCommand
    extends RasterCommand

public ref class BinaryFilterCommand : public RasterCommand

class BinaryFilterCommand(RasterCommand):

Remarks

This command supports 12-bit and 16-bit grayscale and 48 and 64-bit color images. Support for 12-bit and 16-bit grayscale and 48-bit and 64-bit color images is available only in the Document/Medical toolkits.
This command does not support 32-bit grayscale images.
This command supports signed/unsigned data images.

For more information, refer to Removing Noise.

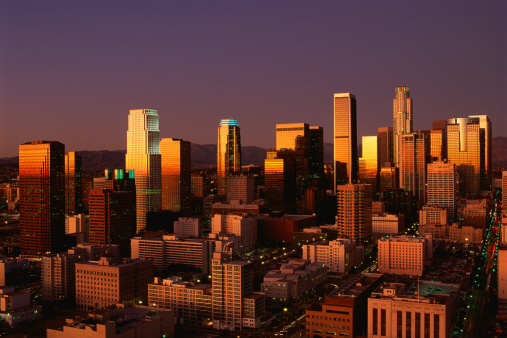

Binary Filter Function - Before

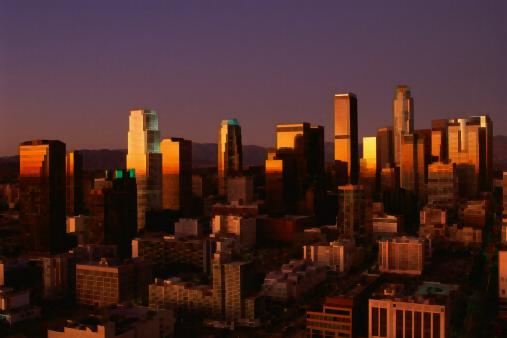

Binary Filter Function - After

View additional platform support for this Binary Filter function.

Example

Runs the BinaryFilterCommand on an image to dilate black objects.

Java

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.Effects;


public void BinaryFilterCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "ImageProcessingDemo\\Image1.jpg"));

   // Prepare the command
   BinaryFilterCommand command = new BinaryFilterCommand(BinaryFilterCommandPredefined.DilationOmniDirectional);
   //Dilate black objects.
   command.Run(image);
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS23\Resources\Images";
}


import java.io.File;
import java.io.IOException;

import org.junit.*;
import org.junit.runner.JUnitCore;
import org.junit.runner.Result;
import org.junit.runner.notification.Failure;
import static org.junit.Assert.*;

import leadtools.*;
import leadtools.codecs.*;
import leadtools.imageprocessing.effects.*;


public void binaryFilterCommandExample() {
   // Load an image
   final String LEAD_VARS_IMAGES_DIR = "c:\\LEADTOOLS23\\Resources\\Images";
   RasterCodecs codecs = new RasterCodecs();
   codecs.setThrowExceptionsOnInvalidImages(true);
   RasterImage image = codecs.load(combine(LEAD_VARS_IMAGES_DIR, "Image1.jpg"));

   // Prepare the command
   BinaryFilterCommand command = new BinaryFilterCommand(BinaryFilterCommandPredefined.DILATION_OMNI_DIRECTIONAL);

   // Dilate black objects
   int change = command.run(image);
   assertTrue(change != RasterImageChangedFlags.NONE);

   codecs.save(image, combine(LEAD_VARS_IMAGES_DIR, "Result.jpg"), RasterImageFormat.JPEG, 24);
   System.out.println("Command run and image saved to " + combine(LEAD_VARS_IMAGES_DIR, "Result.jpg"));
}
