Write AAMVA Driver's License Barcode - Java

This tutorial shows how to create a Java application that utilizes writing PDF417 AAMVA standard barcodes using the LEADTOOLS SDK.

Overview
Summary This tutorial covers how to use LEADTOOLS AAMVA Builder SDK technology in a Java application.
Completion Time 30 minutes
Project Download tutorial project (3 KB)
Platform Java Application
IDE Eclipse
Development License Download LEADTOOLS
Try it in another language

Required Knowledge

Get familiar with the basic steps of creating a project by reviewing the Add References and Set a License and Load and Save an Image tutorials, before working on the Write AAMVA Driver's License Barcode - Java tutorial.

Create the Project and Add LEADTOOLS References

Start with a copy of the project created in the Load and Save an Image - Java tutorial. If the project is not available, create it by following the steps in that tutorial.

The references needed depend upon the purpose of the project. The following JAR files are needed for this tutorial:

The JAR files are located at <INSTALL_DIR>\LEADTOOLS22\Bin\Java

Set the License File

The License unlocks the features needed for the project. It must be set before any toolkit function is called. For details, including tutorials for different platforms, refer to Setting a Runtime License.

There are two types of runtime licenses:

Note

Adding LEADTOOLS references and setting a license are covered in more detail in the Add References and Set a License tutorial.

Create the AAMVAID Class

With the project created, the references added, the license set, and the load and save code added, coding can begin.

In the Package Explorer, open the _Main.java class and make sure the following import statements are in the the import block at the top.

Java
import java.io.IOException;
import java.nio.file.Files;
import java.nio.file.Paths;

import leadtools.*;
import leadtools.barcode.*;
import leadtools.codecs.*;

import java.time.LocalDateTime;
import java.time.format.DateTimeFormatter;

Add a new method to the _Main class called SetAAMVAIDInformation(). Modify the run() method to call the new method so that it becomes as follows:

Java
public static void main(String[] args) throws IOException
{
	new _Main().run(args);
}
private void run(String[] args) {
	try {
		   Platform.setLibPath("C:\\LEADTOOLS22\\Bin\\CDLL\\x64");
		   Platform.loadLibrary(LTLibrary.LEADTOOLS);
		   Platform.loadLibrary(LTLibrary.CODECS);
		   Platform.loadLibrary(LTLibrary.BARCODE);

		   SetLicense();

		   // Create the image and write barcode
		   AAMVAID id = SetAAMVAIDInformation();
		   RasterImage image = RasterImage.create(1700, 2200, 24, 200, RasterColor.WHITE);
		   WriteAAMVABarcode(image, id);

		   // Save the image to disk file
		   String outputFile = "C:\\LEADTOOLS22\\Resources\\Images\\testAAMVA.jpg";
		   RasterCodecs codecs = new RasterCodecs();
		   SaveImage(image, outputFile, codecs);
	}
	catch(Exception ex) {
		System.err.println(ex.getMessage());
		ex.printStackTrace();
	}
}

Add the below code to set the AAMVA ID information.

Java
AAMVAID SetAAMVAIDInformation()
{
   int subFilesCount = 1;

   LocalDateTime Now = LocalDateTime.now();
   LocalDateTime birthday = Now.minusYears(16);
   DateTimeFormatter formatterMMddyyyy = DateTimeFormatter.ofPattern("MMddyyyy");

   String[][] driversLicenseData = new String[][] {{"DDF", "N"},          // First name truncation (N = not truncated)
                                             {"DDE", "N"},                // Last name truncation (N = not truncated)
                                             {"DCG", "USA"},              // Country identification
                                             {"DCF", "NONE"},             // Document discriminator
                                             {"DAQ", "1234567890"},       // ID Number
                                             {"DAK", "123456     "},      // Postal code
                                             {"DAJ", "PA"},               // Address Jurisdiction Code
                                             {"DAI", "Any Town"},         // Address City
                                             {"DAG", "123 Main Street"},  // Address Street 1
                                             {"DAU", "072 in"},           // Height (inches or centimeters)
                                             {"DAY", "BRO"},              // Eye color
                                             {"DBC", "1"},                // Sex (Male = 1, Female = 2, 9 = Not specified)
                                             {"DBB", birthday.format(formatterMMddyyyy)},         // Date of Birth
                                             {"DBD", Now.format(formatterMMddyyyy)},     // Document Issue Date
                                             {"DAD", "NONE"},             // Middle Name
                                             {"DAC", "John"},             // First name
                                             {"DCS", "Doe"},              // Last name
                                             {"DBA", Now.plusYears(6).format(formatterMMddyyyy)},// Expiration date
                                             {"DCD", "M"},                // Jurisdiction-specific endorsement codes
                                             {"DCB", "NONE"},             // Jurisdiction-specific restriction codes
                                             {"DCA", "C"},                // Jurisdiction-specific vehicle class
                                             {"DDJ", birthday.plusYears(21).format(formatterMMddyyyy)},  // Under 21 until
                                             {"DDI", birthday.plusYears(19).format(formatterMMddyyyy)},  // Under 19 until
                                             {"DDH", birthday.plusYears(18).format(formatterMMddyyyy)},  // Under 18 until
                                             {"DAZ", "BRO"}};             // Hair color

   AAMVAIDBuilder builder = new AAMVAIDBuilder();
   builder.setJurisdiction(AAMVAJurisdiction.NORTH_CAROLINA,  AAMVAID.lookupIssuerIdentificationNumber(AAMVAJurisdiction.NORTH_CAROLINA));
   builder.setVersion(AAMVAVersion.VERSION_2016);
   builder.setJurisdictionVersion("00");
   builder.setNumberOfEntries(subFilesCount);

   builder.setSubfileType(subFilesCount - 1, AAMVASubfileType.DL, "DL");

   for (int i = 0; i < driversLicenseData.length; i++)
      builder.addDataElementToSubfile(0, driversLicenseData[i][0], driversLicenseData[i][1]);

   return builder.build();
}

Add the AAMVA PDF417 Write Barcode Code

Once the above code has been added, create a new method WriteAAMVABarcode(RasterImage _image, AAMVAID _driversLicenseID and call the method inside the run() method. See above run() method for where to place this new method. Add the below code to write the PDF417 barcode to a RasterImage.

Java
void WriteAAMVABarcode(RasterImage _image, AAMVAID _driversLicenseID)
{
   BarcodeEngine bcEngine = new BarcodeEngine();

   PDF417BarcodeData _data = new PDF417BarcodeData();
   _data.setSymbology(BarcodeSymbology.PDF417);
   _data.setData(_driversLicenseID.getBytes());

   PDF417BarcodeWriteOptions pdf417WriteOptions = (PDF417BarcodeWriteOptions)bcEngine.getWriter().getDefaultOptions(BarcodeSymbology.PDF417);
   pdf417WriteOptions.setXModule(15);
   pdf417WriteOptions.setXModuleAspectRatio(3);
   pdf417WriteOptions.setECCLevel(PDF417BarcodeECCLevel.LEVEL5);
   pdf417WriteOptions.setSymbolWidthAspectRatio(4);

   bcEngine.getWriter().calculateBarcodeDataBounds(LeadRect.getEmpty(), _image.getXResolution(), _image.getYResolution(), _data, pdf417WriteOptions);

   bcEngine.getWriter().writeBarcode(_image, _data, pdf417WriteOptions);
}

Run the Project

Run the project by selecting Run -> Run.

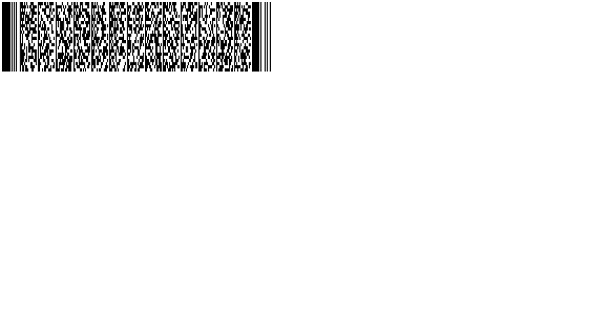

If the steps were followed correctly, the application will write a PDF417 barcode on the blank RasterImage containing the specified AAMVA data, and will be saved to a file. The output result should look like this:

Output barcode image

Wrap-Up

This tutorial showed how to use the BarcodeWriter, AAMVAID and AAMVAIDBuilder classes.
