Set up LEADTOOLS .NET 6 Document Service in a Docker Container

This tutorial shows how to set up the LEADTOOLS .NET 6 Document Service in a Docker container.

Overview
Summary This tutorial covers how to set up the LEADTOOLS Document Service using Docker.
Completion Time 30 minutes
Platform ASP.NET Application using Docker
IDE Visual Studio 2022
Development License Download LEADTOOLS

Required Knowledge

You will need these resources:

Note

Docker has recently changed their licensing policy to: "Docker Desktop remains free for small businesses (fewer than 250 employees and less than $10 million in annual revenue), personal use, education, and non-commercial open source projects."

Additionally, following the steps in this tutorial will require ~20 gigabytes of free space on your machine.

Setting the License File

The first step is to set up the license file. Open the ServiceHelper.cs file located in ...\DocumentServiceDotNet\src\Tools\Helpers\. Go to the line where the SetLicense() function is defined. Replace the entire code inside the SetLicense() function with the following code:

C#
public static void SetLicense()
{
    var licString = "[License]\n" + "License = <doc><ver>2.0</ver>`PASTE YOUR LICENSE CONTENTS HERE`</doc>";
    var developerKey  = "PASTE YOUR DEVELOPER KEY HERE";
    byte[] licBytes = System.Text.Encoding.UTF8.GetBytes(licString);
    RasterSupport.SetLicense(licBytes, developerKey);
    IsLicenseChecked = !RasterSupport.KernelExpired;
}

The only portion of the LEADTOOLS.lic file that is required for this tutorial is the text between the "code" tags. Copy the entire line and paste it where indicated in the above code.

The LEADTOOLS developer key is in the LEADTOOLS.lic.key file. Copy and paste the entire contents of this file into the developerKey variable as indicated in the above code.

Making the Necessary Project Modifications

Before deploying the .NET 6 Document Service to a Docker Container, the project must be slightly modified to accommodate this scenario.

Open the ServiceHelper.cs file located in *...\DocumentServiceDotNet\src\Tools\Helpers*. Go to the CreateOCREngine function and comment out the entire second try/catch block and add the following code below:

C#
runtimeDirectory = Path.Combine(
    Path.GetDirectoryName(System.Reflection.Assembly.GetExecutingAssembly().Location),
        "OcrLEADRuntime");

    // Start up OCR engine
    ocrEngine.Startup(null, null, null, runtimeDirectory);
    _ocrEngine = ocrEngine;
    _OcrEngineStatus = OcrEngineStatus.Ready;
    _ocrEngineRuntimeDirectory = runtimeDirectory;

Next, it is necessary to ensure both the appsettings.json file and the entire wwwroot directory get copied to the output directory when building the project.

Open the DocumentService_Nuget.csproj file located in ..\DocumentServiceDotNet\net\. Find the <ItemGroup> that starts with:

<Content Include="..\src\appsettings.json" Link="appsettings.json" />

All entries in this item group with a Link attribute to the wwwroot folder can be commented out. The next item group can be commented out entirely.

In the first item group, which should now only contain four entries for XML files, add the following lines:

<None Include="..\src\appsettings.json" Link="appsettings.json">
    <CopyToOutputDirectory>Always</CopyToOutputDirectory>
</None>

<None Include="wwwroot/**">
    <CopyToOutputDirectory>Always</CopyToOutputDirectory>
</None>

Creating the Docker File

Open the DocumentServiceDotNet folder. Create a new file named Dockerfile. This file will contain all the instructions for Docker to build the Document Service. The Dockerfile instructs Docker to install the required dependencies within the container.

Setup Project Files

This section of the Dockerfile will set up the project files to be ran in the container. First, it installs the SDK required by the application (change to match accordingly, information found at https://hub.docker.com/_/microsoft-dotnet-sdk).

Next, it sets the container's current directory to /app and copies all the files in the local directory to the container's app directory. Then it restores and publishes the DocumentService_Nuget.csproj found in the net folder into the app directory in the container.

Add the following code to the Dockerfile:

### Building the project (hub.docker.com/_/microsoft-dotnet-sdk)

FROM mcr.microsoft.com/dotnet/sdk:6.0 AS build-env
WORKDIR /app

# Copy everything and build
COPY . ./
RUN dotnet restore net/DocumentService_Nuget.csproj \
    && dotnet publish -c Release -o ../out net/DocumentService_Nuget.csproj

Setup Runtime Environment

This next section of the Dockerfile will set up the runtime environment in the container.

First, it installs the runtime required by the application (change to match accordingly, information found at https://hub.docker.com/_/microsoft-dotnet-aspnet). It then sets the container's current directory to temp and adds the Debian package source to the sources.list file to be able to utilize and pull required dependencies via apt-get. Next, it sets a container environment DEBIAN_FRONTEND to non-interactive to prevent any confirmations or optional inputs to be requested by installing dependencies. Finally, it updates the apt-get and installs the apt-utils and wget to further facilitate installation of the other dependencies.

Add the following code to the Dockerfile:

### Building the runtime image (hub.docker.com/_/microsoft-dotnet-aspnet)

FROM mcr.microsoft.com/dotnet/aspnet:6.0
WORKDIR /temp

# Add package source

RUN echo "deb http://archive.debian.org/debian stretch main contrib" >> /etc/apt/sources.list

# Generate the APT cache

ENV DEBIAN_FRONTEND noninteractive
RUN apt-get update \
    && apt-get install -y apt-utils wget \

Setup LEADTOOLS Dependencies

This next section of the Dockerfile will set up the dependencies in the container.

To accomplish the above, add the following code to the Dockerfile:

# Install the LEAD dependencies (https://www.leadtools.com/help/sdk/v22/main/api/getting-started-with-the-leadtools-linux-libraries-and-demo-projects.html)

    uuid-dev uuid-runtime gcc g++ libc-dev-bin \
    linux-libc-dev libx11-6 libx11-dev libxt6 \
    libxt-dev sqlite3 libsqlite3-dev libfreetype6 \

# Install Microsoft fonts (http://askubuntu.com/a/25614)

    && echo "ttf-mscorefonts-installer msttcorefonts/accepted-mscorefonts-eula select true" | debconf-set-selections \
    && apt install -y fontconfig ttf-mscorefonts-installer \

# Install wkhtmltopdf (http://wkhtmltopdf.org)
    && wget -q https://github.com/wkhtmltopdf/packaging/releases/download/0.12.6-1/wkhtmltox_0.12.6-1.stretch_amd64.deb \
    && apt install -y --allow-unauthenticated \
    ./wkhtmltox_0.12.6-1.stretch_amd64.deb \
    && ldconfig \

# Clean up APT cache

    && rm -rf /var/lib/apt/lists/*

Final Setup

In this section we perform the final clean up, final setup, and initialize the application.

Set the containers current directory to app and remove the temp directory made above, as it is no longer needed. Next, copy the contents of the /app/out directory in the container that was stored in the buid-env section to the app folder. Lastly, set the command, ENTRYPOINT ["dotnet", "DocumentService.dll"], to be ran when we start the container which triggers the application to run.

Add the following code to the Dockerfile:

# Delete the temp files
WORKDIR /app
RUN rm -rf /temp

#EXPOSE 80

# Copy and deploy application

COPY --from=build-env ../out ./
ENTRYPOINT ["dotnet", "DocumentService.dll"]

Create a Docker Ignore File

Next, create a file called .dockerignore in the DocumentServiceDotNet directory. This file is used by Docker to ignore specified documents. This will reduce the amount of time Docker takes to build the project, since it will not have to migrate the entire project into the container when it is being built. Copy and paste the following into the .dockerignore file:

net\bin\
net\obj\
net\.vs\
.\vs\
.\vscode\
fx

For your reference, you can download the sample .dockerignore and Dockerfile here

Build the Docker Container

Next, open the Terminal and migrate to the DocumentServiceDotNet folder. Use the command below:

docker build -t documentservice .

It may take a few minutes for Docker to complete. Once completed the image can be run.

Run the Docker Container

Once the Docker image is ready to run, use the following command:

docker run -p 30000:80 documentservice

The -p flag binds the container port 30000:80 to localhost:30000. Port 30000 is used because the Document Viewer assumes that this port will be available to service its requests.

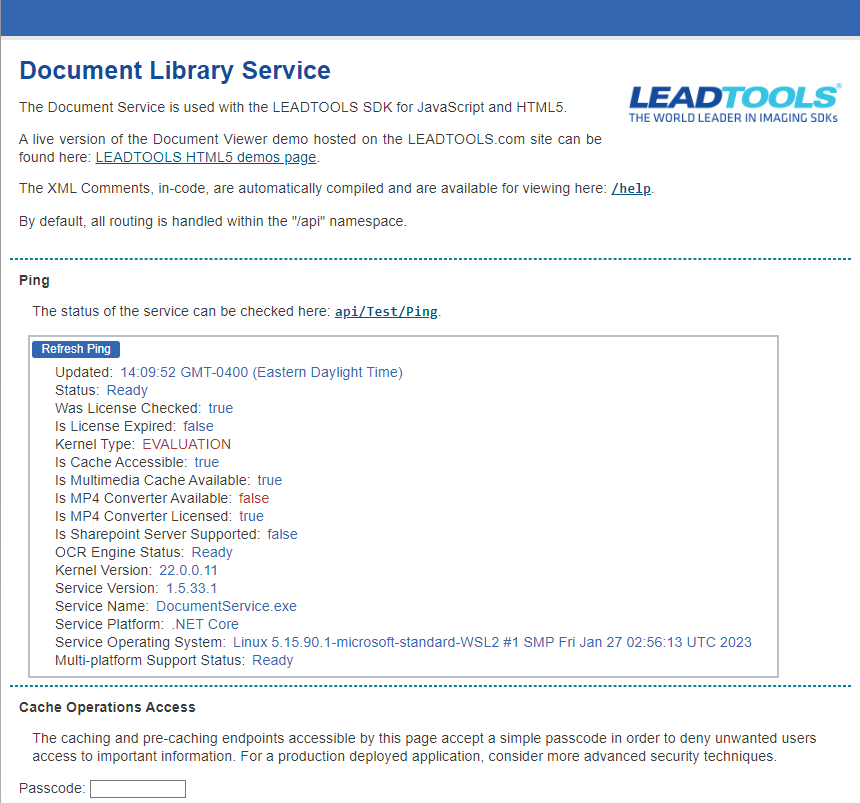

Go to the browser and navigate to http://localhost:30000. The following page should be displayed.

Document Service Landing Page

Wrap-up

This tutorial showed how to set up the .NET 6 LEADTOOLS Document Service in a Docker Container and run on local host.
