ExtractCheck - Python

This tutorial shows how to extract check data from an image using the LEADTOOLS Cloud Services in a Python application.

Overview
Summary	This tutorial covers how to make `ExtractCheck` requests and process the results using the LEADTOOLS Cloud Services in a Python application.
Completion Time	30 minutes
Project	Download tutorial project (1 KB)
Platform	LEADTOOLS Cloud Services API
IDE	Visual Studio
Language	Python
Development License	Download LEADTOOLS
Try it in another language	C#: .NET 6+ (Console) HTML5: HTML5 Node.JS Python: Python

Required Knowledge

Be sure to review the following sites for information about LEADTOOLS Cloud Services API.

Application ID and Password

Create an Account with LEADTOOLS Hosted Cloud Services to obtain both Application ID and Password strings.

Service Plans

LEADTOOLS Service Plan offerings:

Service Plan	Description
Free Trial	Free Evaluation
Page Packages	Prepaid Page Packs
Subscriptions	Prepaid Monthly Processed Pages

To further explore the offerings, refer to the LEADTOOLS Hosted Cloud Services page.

To obtain the necessary Application ID and Application Password, refer to Create an Account and Application with the LEADTOOLS Hosted Cloud Services.

Add the ExtractCheck Code

With the project created and the requests package added, coding can begin.

In the Solution Explorer, open ExtractCheck.py. Add the following variables at the top.

Note

Where it states Replace with Application ID and Replace with Application Password, be sure to place your Application ID and Password accordingly.

#Simple script to make and process the results of an ExtractCheck request to the LEADTOOLS Cloud Services.
import requests
import sys
import time

servicesUrl = "https://azure.leadtools.com/api/"

# The application ID.
appId = "Replace with Application ID"

# The application password.
password = "Replace with Application Password"

# The first page in the file to mark for processing
firstPage = 1

# Sending a value of -1 will indicate to the services that the rest of the pages in the file should be processed.
lastPage = -1

# We will be uploading the file via a URl.  Files can also be passed by adding a PostFile to the request.  Only 1 file will be accepted per request.
# The services will use the following priority when determining what a request is trying to do GUID > URL > Request Body Content
fileURL = 'http://demo.leadtools.com/images/cloud_samples/micr_sample.jpg'
baseRecognitionUrl = '{}Recognition/ExtractCheck?firstPage={}&lastPage={}&fileurl={}'
formattedRecognitionUrl = baseRecognitionUrl.format(
    servicesUrl, firstPage, lastPage, fileURL)

Add a request.post call to process the ExtractCheck request and capture the GUID from the resulting request.text, then provide it to the next section. This sends an ExtractCheck request to the LEADTOOLS Cloud Services API, if successful, a unique identifier (GUID) will be returned and then a query using this GUID will be made.

request = requests.post(formattedRecognitionUrl, auth=(appId, password))

# If uploading a file alongside the HTTP request
#baseRecognitionUrl ='{}Recognition/ExtractCheck?firstPage={}&lastPage={}'
#formattedRecognitionUrl = baseRecognitionUrl.format(
#    servicesUrl,firstPage, lastPage)
#file = {'file' : open('path/to/file', 'rb')}
#request = requests.post(
#    formattedRecognitionUrl, auth=(appId, password), files = file)

if request.status_code != 200:
    print("Error sending the conversion request")
    print(request.text)
    sys.exit()

# Grab the GUID from the Request
guid = request.text
print("Unique ID returned by the services: " + guid + "\n")

Next, create a Query request that utilizes the GUID provided by ExtractCheck request. If successful the response will contain all the request data in JSON format.

# Now, we need to Query the results
print("Now Querying Results....")
baseQueryUrl = '{}Query?id={}'
formattedQueryUrl = baseQueryUrl.format(servicesUrl, guid)

while True:  # Poll the services to determine if the request has finished processing
    request = requests.post(formattedQueryUrl, auth=(appId, password))
    returnedData = request.json()
    if returnedData['FileStatus'] != 100 and returnedData['FileStatus'] != 123:
        break
    time.sleep(5)

print("File finished processing with file status: " +
      str(returnedData['FileStatus']))

if returnedData['FileStatus'] != 200:
    sys.exit()

Finally, parse the JSON data into a readable format.

try:
    print("Results:")
    returnedJson = returnedData['RequestData']
    for requestObject in returnedJson:
        print("Service Type: " + requestObject['ServiceType'])
        if requestObject['ServiceType'] == 'Recognition' and requestObject['RecognitionType'] == 'MICR':
            print("MICR Data:")
            for micrObject in requestObject['data']:
                for micrResult in micrObject:
                    print(micrResult + ":")
                    print("Text: " + micrObject[micrResult]['Text'])
                    print("Bounds: " + micrObject[micrResult]['Bounds'])
                    print()
except Exception as e:
    print("Failed to Parse JSON")
    print(str(e))

Run the Project

Run the project by pressing Ctrl + F5, or by selecting Debug -> Start Debugging.

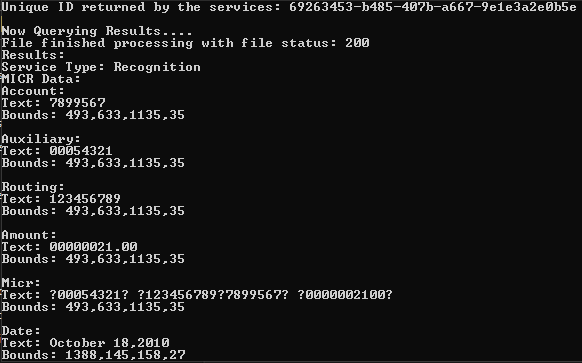

If the steps were followed correctly, the console appears and the application displays the parsed check information from the returned JSON data.

Wrap-up

This tutorial showed how to extract check information via the LEADTOOLS Cloud Services API.
