Read and Write Bytes in a Barcode - Console C#

This tutorial shows how to create a C# Windows Console application that creates a barcode by encoding raw binary data, then how to decode that data from the barcode using the LEADTOOLS SDK. This can be useful when using characters from extended character sets.

Required Knowledge

Get familiar with the basic steps of creating a project by reviewing the Add References and Set a License tutorial, before working on the Read and Write Bytes in a Barcode - Console C# tutorial.

Create the Project and Add LEADTOOLS References

Start with a copy of the project created in the Add References and Set a License tutorial. If you do not have that project, follow the steps in that tutorial to create it.

The references needed depend upon the purpose of the project. References can be added by one or the other of the following two methods (but not both). For this project, the following references are needed:

If using NuGet references, this tutorial requires the following NuGet package:

• Leadtools.Barcode

If local DLL references are used, the following DLLs are needed. The DLLs are located at <INSTALL_DIR>\LEADTOOLS22\Bin\Dotnet4\x64:

• Leadtools.dll
• Leadtools.Barcode.dll
• Leadtools.Barcode.QrRead.dll
• Leadtools.Barcode.QrWrite.dll
• Leadtools.Codecs.dll
• Leadtools.Codecs.Fax.dll
• Leadtools.Codecs.Tif.dll

For a complete list of which DLL files are required for your application, refer to Files to be Included in your Application.

This tutorial uses QR Barcodes. For a complete list of which DLLs are required for other barcode symbologies, refer to Barcode Support.

Set the License File

The License unlocks the features needed for the project. It must be set before any toolkit function is called. For details, including tutorials for different platforms, refer to Setting a Runtime License.

There are two types of runtime licenses:

• Evaluation license, obtained at the time the evaluation toolkit is downloaded. It allows the toolkit to be evaluated.
• Deployment license. If a Deployment license file and developer key are needed, refer to Obtaining a License.

Note

Adding LEADTOOLS NuGet and local references and setting a license are covered in more detail in the Add References and Set a License tutorial.

Add the Barcode Encoding and Decoding Code

With the project created, the references added, and the license set, coding can begin.

In the Solution Explorer, open Program.cs. Add the following statements to the using block at the top.

// Using block at the top
using System;
using System.Text;
using System.IO;
using Leadtools;
using Leadtools.Barcode;

Add two new methods called CreateBarcode(string data) that returns a RasterImage and ReadBarcode(RasterImage barcodeImage) that returns a string value. Add the below code to write and read bytes in a barcode.

// Add these two methods
private static RasterImage CreateBarcode(string data)
{
   byte[] chars = Encoding.Unicode.GetBytes(data);

   RasterImage image = RasterImage.Create(2200, 3300, 24, 300, RasterColor.White);

   BarcodeEngine eng = new BarcodeEngine();
   QRBarcodeData qrBarcodeData = new QRBarcodeData();

   qrBarcodeData.SetData(chars);
   eng.Writer.WriteBarcode(image, qrBarcodeData, null);

   return image;
}

private static string ReadBarcode(RasterImage barcodeImage)
{
   BarcodeEngine eng = new BarcodeEngine();
   BarcodeData[] data = eng.Reader.ReadBarcodes(barcodeImage, LeadRect.Empty, 0, eng.Reader.GetAvailableSymbologies());

   if (data.Length > 0)
   {
      byte[] chars = data[0].GetData();
      string value = Encoding.Unicode.GetString(chars);

      return value;
   }

   return string.Empty;
}

Add the below code inside the Main method to call the CreateBarcode method and the ReadBarcode method.

static void Main(string[] args)
{
   SetLicense();

   // Create barcode and write barcode to image
   RasterImage barcodeImage = CreateBarcode("Unicode-encoded data");

   // Read barcode on image and display to console
   string decodedText = ReadBarcode(barcodeImage);

   // Console output
   Console.WriteLine(decodedText);
}

Run the Project

Run the project by pressing F5, or by selecting Debug -> Start Debugging.

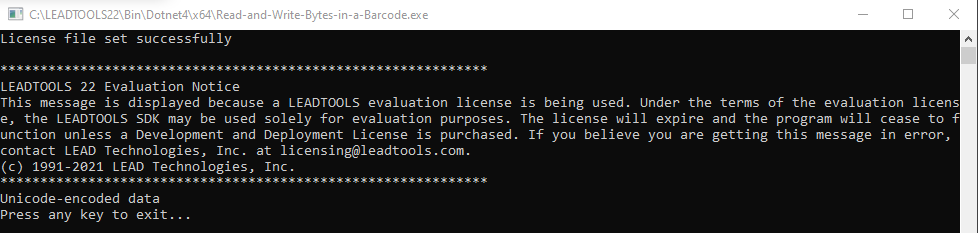

If the steps were followed correctly, the application runs and creates a new barcode using raw byte data, then decode that barcode and converts the raw byte data back to readable text, which is then displayed on the command line.

Wrap-up

This tutorial showed how to create a barcode from raw byte data, then decode that barcode back into the raw byte data it was created from. This raw byte data can be either binary information or a string converted from a different character set. Also it covered how to use the BarcodeEngine and BarcodeData classes.
