Add Transparency to an Image - Windows C DLL

This tutorial shows how to create a transparent area in an image using two different techniques then save the image and transparency information to file in a Windows C/C++ API application using the LEADTOOLS SDK.

Overview
Summary This tutorial covers how to add transparency to images in a Windows C DLL application.
Completion Time 30 minutes
Visual Studio Project Download tutorial project (18 KB)
Platform Windows C DLL Application
IDE Visual Studio 2017, 2019
Development License Download LEADTOOLS
Try it in another language

Required Knowledge

Get familiar with the basic steps of creating a project and loading/displaying an image by reviewing the Add References and Set a License and Load, Display, and Save Images tutorials, before working on the Add Transparency to an Image - Windows C DLL tutorial.

Create the Project and Add LEADTOOLS References

Start with a copy of the project created in the Add References and Set a License tutorial. If the project is not available, create it by following the steps in that tutorial.

Open the pre-compiled header file (either pch.h or stdafx.h, depending on the version of Visual Studio used) and ensure the below lines are added.

#define LTV22_CONFIG
#include "C:\LEADTOOLS22\Include\L_Bitmap.h" // use the actual path where LEADTOOLS is installed

#pragma comment (lib, "C:\\LEADTOOLS22\\Lib\\CDLL\\x64\\Ltkrn_x.lib")
#pragma comment (lib, "C:\\LEADTOOLS22\\Lib\\CDLL\\x64\\Ltdis_x.lib") // needed for region processing
#pragma comment (lib, "C:\\LEADTOOLS22\\Lib\\CDLL\\x64\\Ltfil_x.lib") // file loading and saving

Note

For a complete list of DLLs that are required for specific application features, refer to Files to be Included with your Application - C API

Set the License File

The License unlocks the features needed for the project. It must be set before any toolkit functionality is called. For details, including tutorials for different platforms, refer to Setting a Runtime License.

There are two types of runtime licenses:

Note

Adding LEADTOOLS references and setting a license are covered in more detail in the Add References and Set a License tutorial.

Add the Code to Create Alpha Channel Transparency

With the project created, the references added, the license set, and the load image code added, coding can begin.

Open the project's CPP file and add a new function called AddAlphaTransparency() that takes and image and sets all white and near-white areas in it as transparent by manipulating the image's alpha channel. Place this function above the WndProc() function.

// modify the input bitmap by adding an alpha channel with transparent white areas
void AddAlphaTransparency(BITMAPHANDLE *pBitmap)
{
   // createa an 8-bit image to use later as Alpha channel
   BITMAPHANDLE alpha = { 0 };
   L_CreateBitmap(&alpha, sizeof BITMAPHANDLE, TYPE_CONV, BITMAPWIDTH(pBitmap), BITMAPHEIGHT(pBitmap),
      0, // zero siginfies 8-bit grayscale
      ORDER_RGB, NULL, pBitmap->ViewPerspective, NULL, NULL);
   L_COLORREF colorNearWhite = RGB(245, 245, 245), colorWhite = RGB(255, 255, 255);
   // Fill the alpha channel with white to cause all pixels to be opaque
   L_FillBitmap(&alpha, colorWhite);
   // find pixels from near-white to white in the input image and create region from them
   L_SetBitmapRgnColorRGBRange(pBitmap, colorNearWhite, colorWhite, L_RGN_SET);
   // copy the region to the alpha image
   L_HRGN hRgn = NULL;
   L_GetBitmapRgnHandle(pBitmap, NULL, &hRgn);
   L_SetBitmapRgnHandle(&alpha, NULL, hRgn, L_RGN_SET);
   // fill the region with black to represent transparent pixels.
   L_FillBitmap(&alpha, RGB(0, 0, 0));
   DeleteObject(hRgn);
   L_FreeBitmapRgn(pBitmap);
   L_FreeBitmapRgn(&alpha);
   // Re-insert the modified 8-bit image as the main image's alpha channel
   L_SetBitmapAlpha(pBitmap, &alpha);
   L_FreeBitmap(&alpha);
}

Add the Code to Set a Specific Color as Transparent

Add a new function called AddTransparentColor() that takes and image and converts all white and near-white areas to pure white, then marks the white color as transparent. Place this function above the WndProc() function.

void AddTransparentColor(BITMAPHANDLE *pBitmap)
{
   // find pixels from near-white to white in the input image and create region from them
   L_COLORREF colorNearWhite = RGB(245, 245, 245), colorWhite = RGB(255, 255, 255);
   L_SetBitmapRgnColorRGBRange(pBitmap, colorNearWhite, colorWhite, L_RGN_SET);

   // Fill the region with a single white color to enable setting it as a unique transparent color
   L_FillBitmap(pBitmap, colorWhite);
   L_FreeBitmapRgn(pBitmap);
   pBitmap->Flags.Transparency = true;
   pBitmap->Transparency = colorWhite;
}

Add the Code to Load an Image and Save it With Transparency

In the Solution Explorer, double-click the resources file (.rc).

Add a new &Add Transparency menu item to the File drop-down menu and move it above the Exit and Save items. Leave the new menu item's ID as ID_FILE_ADDTRANSPARENCY.

Load a base image to have transparency added to it and pass it to the 2 methods created above:

Open the project's CPP file and navigate to the WndProc function. Under the switch (wmId) statement that is below the WM_COMMAND case, add a new case and the code below.

switch (wmId)
{
   case ID_FILE_ADDTRANSPARENCY:
   {
      BITMAPHANDLE bmp = { 0 };
      L_LoadBitmap((L_TCHAR*)TEXT("C:\\LEADTOOLS22\\Resources\\Images\\testframe1.jpg"), &bmp, sizeof BITMAPHANDLE, 24, ORDER_BGR, NULL, NULL);
      AddAlphaTransparency(&bmp); // create alpha channel with transparent parts corresponding to all near-white parts
      // Save as 32-bit PNG to include alpha in output image
      L_SaveBitmap((L_TCHAR*)TEXT("imagePlusAlpha.png"), &bmp, FILE_PNG, 32, 9, NULL);
      AddTransparentColor(&bmp); // make all near-white parts a single color and mark it as transparent
      // Save as 8-bit GIF which supports transparent color, but not Alpha channel.
      L_SaveBitmap((L_TCHAR*)TEXT("imageWithTranspColor.gif"), &bmp, FILE_GIF, 8, 0, NULL);
      L_FreeBitmap(&bmp);
   }
   break;
   // Keep rest of the code as is

Run the Project

Run the project by pressing F5, or by selecting Debug -> Start Debugging.

If the steps are followed correctly, the application runs and loads a JPEG image, adds transparency to it in two different ways and saves the resulting images with transparency to two different files.

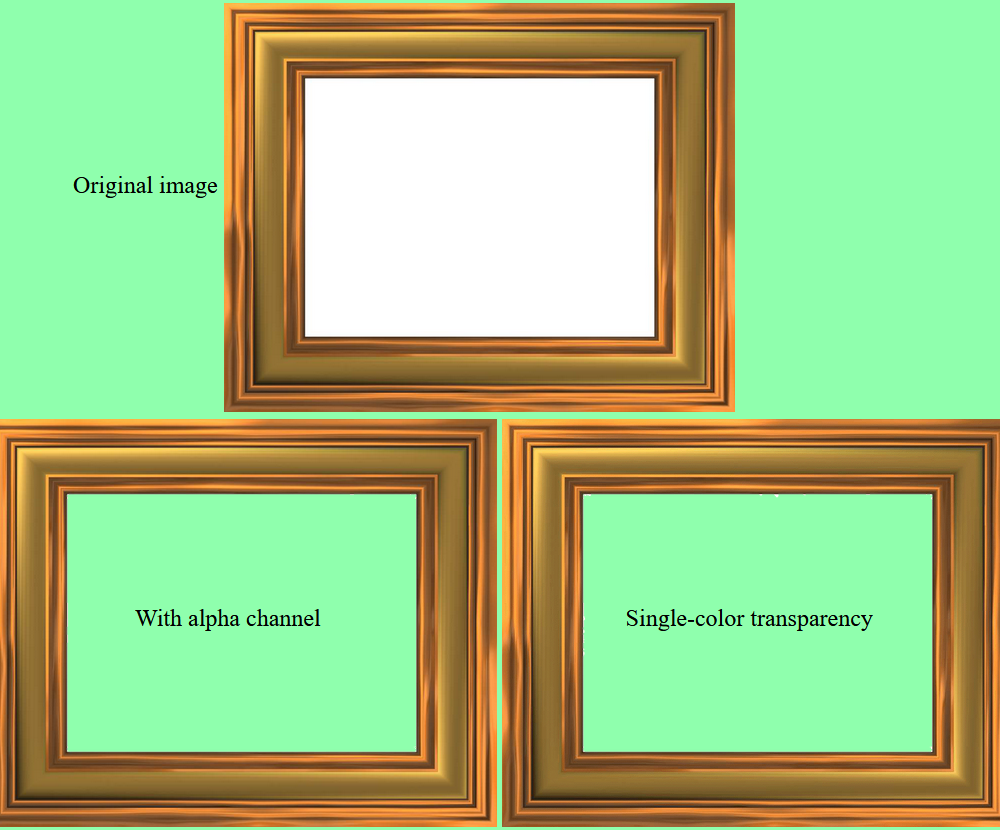

This image can be used for input. The screenshot below shows how the input image is displayed along with the two resulting images that contain trasparency information when all three images are placed in a web page that has color background.

Result Display

Wrap-up

This tutorial showed how to use the various LEADTOOLS functions to load, process and save an image to add transparency information to bitmaps.
