Testing the Tools

Step 2 - Testing the Tools of the LEAD Sample External Store add-in

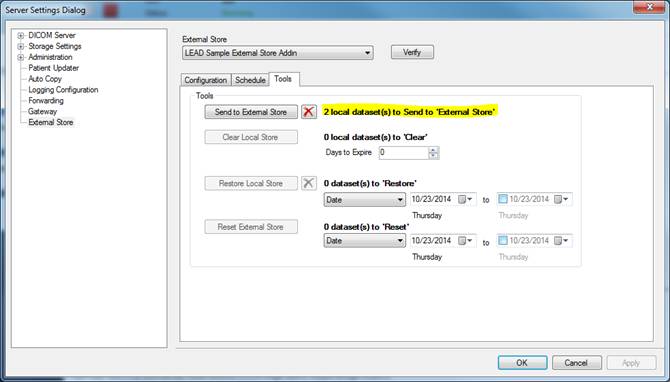

1. Click the Send to External Store button, then click the Yes button to copy the two datasets to the LEAD Sample External Store.

   The datasets should now be stored on the LEAD Sample External Store.

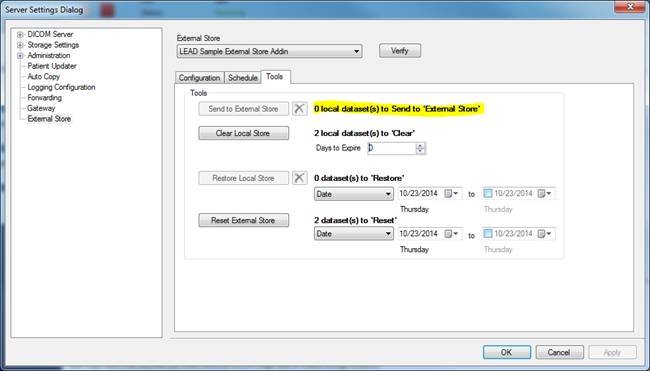

   Verify this is true by seeing that there are 0 local datasets to Send to "External Store"

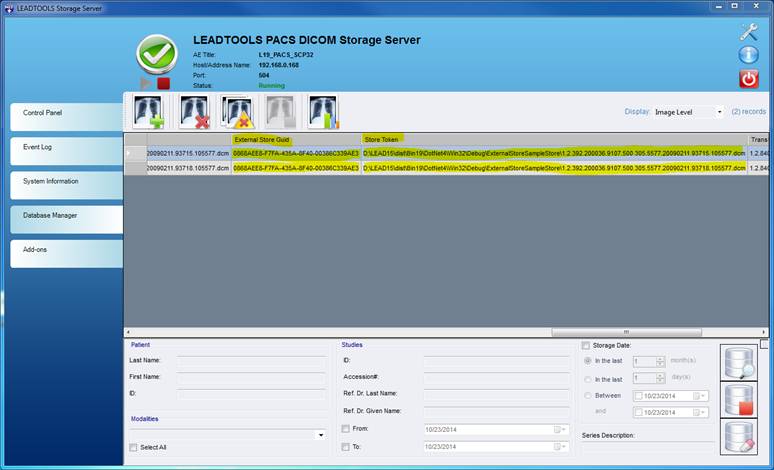

   Verify this also by opening the Database Manager and seeing that there is a valid External Store Guid and Store Token for both datasets.

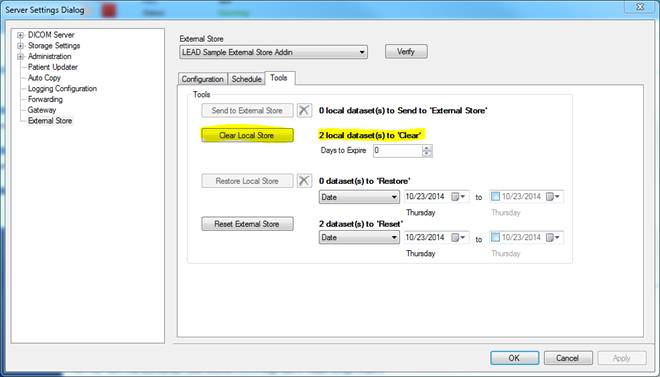

2. Go to the Tools tab of the External Store settings.

   You should see that you can Clear two datasets. This means that they will be permanently removed from the local store.

   Click the Clear Local Store button to remove the datasets from the local store.

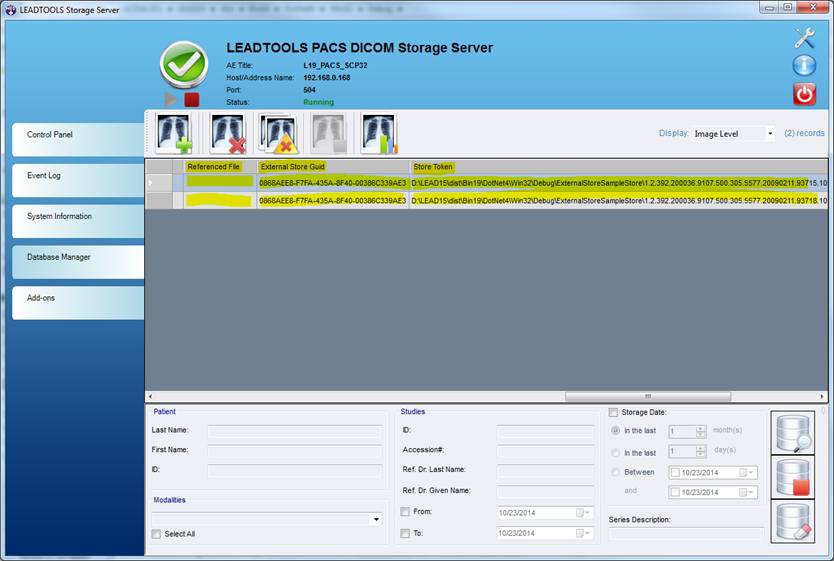

   Verify that the datasets exist on the external store, but no longer exist on the local store by opening the Database Manager.

   • Verify the datasets exists on the external store
     • There is a valid External Store Guid and Store Token for both datasets.

   • Verify the datasets do NOT exist in the local store

     • Referenced file is empty

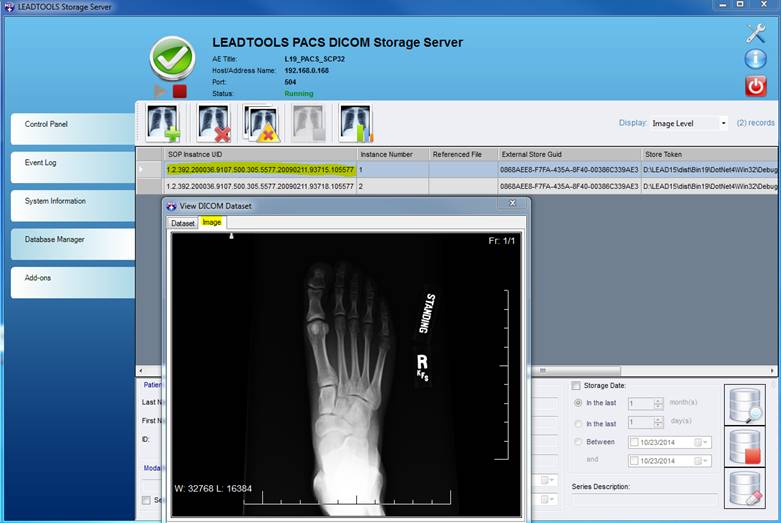

   • Verify that the datasets can be read from the cloud

     • Double click either of the rows to open the corresponding dataset
     • Click the image tab

     • Successfully viewing the image verifies that the datasets were read from the cloud

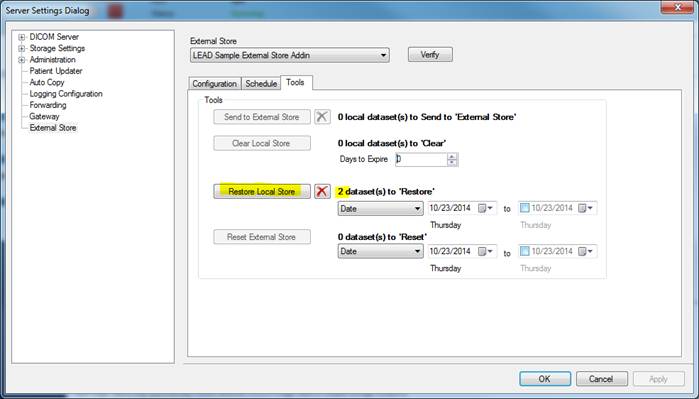

3. Go to the Tools tab of the External Store settings.

   You should see that you can restore two datasets, which means the datasets will be copied from the external store to the local store.

   Click the Restore Local Store button to copy the datasets back to the local store.

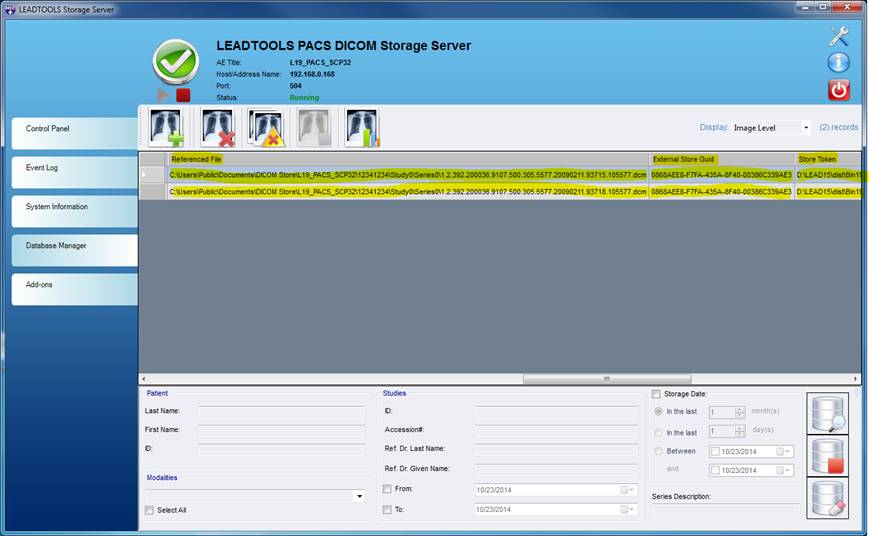

   Verify that the datasets exist on the external store and also exist on the local store by opening the Database Manager.

   • Verify the datasets exist on the external store
     • There is a valid External Store Guid and Store Token for both datasets.

   • Verify the datasets exist in the local store

     • Referenced file contains path to the local file

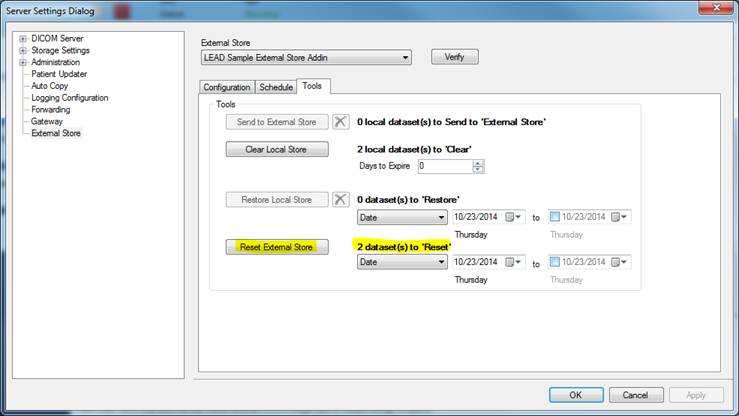

4. Go to the Tools tab of the External Store settings.

   You should see that you can reset two datasets, which means the datasets will be marked so that they can be again sent to the external store.

   After the Reset, the datasets still exist on the external store, but they can be stored again on the external store (i.e. overwritten).

   This is useful when modifying DICOM datasets (i.e. with the CSDicomHighlevelPatientUpdaterDemo.exe)

   Click the Reset Local Store.



   • Verify that the datasets can again be sent to the external store (i.e overwrite the external store)



   • Verify that the datasets still exist on the external store by opening the Database Manager

     • There is a valid External Store Guid and Store Token for both datasets.
