Common Configuration Class
Common Configuration Class
The common configuration class is a class that derives from the abstract class ExternalStoreAddinConfigAbstract. This class contains configuration settings common to all external store add-ins.

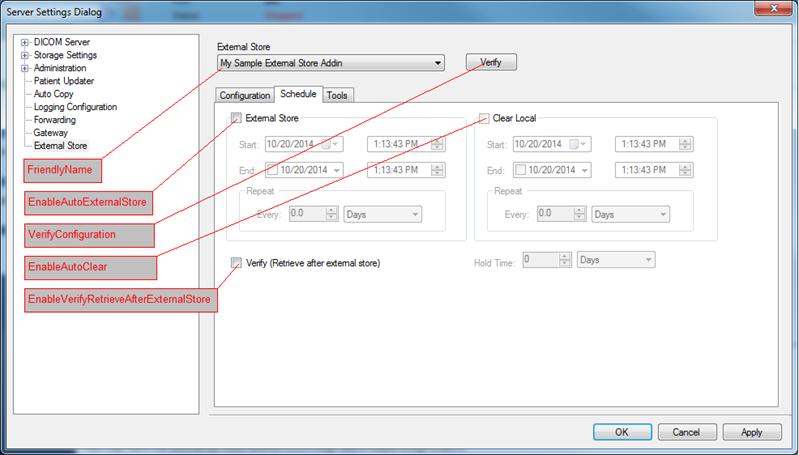

In the following figure, you can see how each member of the abstract class ExternalStoreAddinConfigAbstract affects the External Store settings' dialog in the StorageServerManagerDemo_Original.exe.

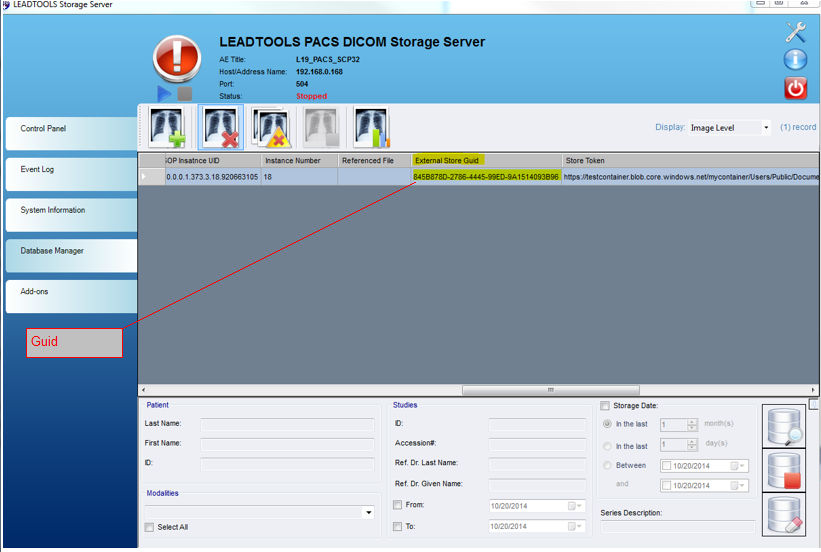

The Guid member of the abstract class ExternalStoreAddinConfigAbstract is displayed under the External Store Guid column Database Manager of the CSStorageServerManger.exe
