Azure Cloud Storage

(External Store Add-in)

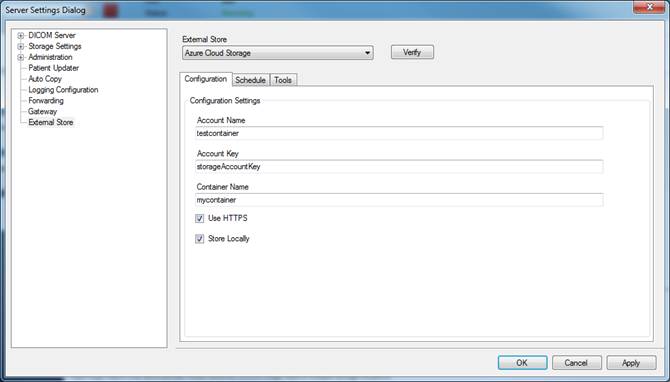

Select Azure Cloud Storage in the External Store drop down to see the configuration options:


The following table explains each of the configuration options. After obtaining Microsoft Azure cloud storage credentials (Account Name, Account Key, and Container Name), configure the Azure External store add-in and click the Apply button.

Setting

Value

Account Name

You must obtain an account name from Microsoft

Account Key

You must obtain an account key from Microsoft

Container Name

You must obtain a container name from Microsoft

Use HTTPS

unchecked

Timeout

100

Store Locally

Checked

The choices are as follows:

  • Checked
    • When storing datasets (either through the Database Manager, or using a DICOM SCU Client demo), the DICOM datasets are initially stored locally, and not directly to the external store
    • DICOM datasets are then configured to be stored on the cloud and cleaned locally through the external store scheduler options
  • Unchecked
    • When DICOM datasets are stored, they are copied directly to the cloud (and not copied to the local store)

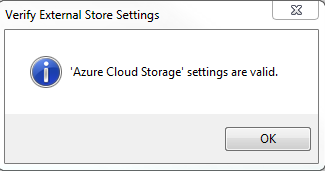

Click the Verify button. You should receive a message indicating that the settings are valid, as follows:
