LEAD Video EFX Dizzy Filter User Interface

The Video EFX Dizzy Filter applies changes to the video that simulate a dizzy feeling. The property page is shown in the following figure:

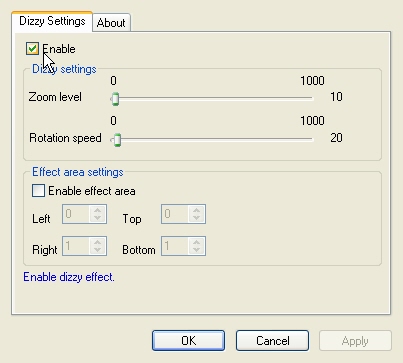

Video EFX Dizzy Filter property page

The Video EFX Dizzy Filter property page provides a user interface for changing the filter's attributes.

Changes will be applied directly to the streaming media with the ability to set them permanently by selecting Apply or OK, or to abandon changes by selecting Cancel. Positioning the mouse pointer over a control displays general information for that control. The following table shows the controls and their descriptions:

Control

Description

Enable check box

Enables/Disables the effect.

Zoom level slider

Value that represents the zoom level used to create the dizziness effect. Range: 0 to 1000.

Rotation speed slider

Value that represents the rotation speed used to create the dizziness effect. Range: 0 to 1000.

Enable effect area check box

Enables/Disables the effect for a cropped video area. Area limits are set using the Left, Top, Right and Bottom controls.

Left spin edit control

Left boundary of the effect area.

Top spin edit control

Top boundary of the effect area.

Right spin edit control

Right boundary of the effect area.

Bottom spin edit control

Bottom boundary of the effect area.

Enable effect area check box

Enables/Disables the effect for a cropped video area. Area limits are set using the Left, Top, Right and Bottom controls.
