SkeletonCommand Class

Summary
Finds the skeleton of objects or regions in the image. This command is available in the Document/Medical Toolkits.
Syntax
C#
C++/CLI
Python
public class SkeletonCommand : RasterCommand
public ref class SkeletonCommand : public RasterCommand
class SkeletonCommand(RasterCommand):
Remarks
  • This command finds the skeleton of regions or objects in a binary image. The white color represents the objects and the black color represents the background. If the image is not a 1-bit image, the Threshold will be used to transform the image into a binary image before finding the skeleton.
  • If the image has a region, this command works only on the region.
  • This command supports 12 and 16-bit grayscale and 48 and 64-bit color images. Support for 12 and 16-bit grayscale and 48 and 64-bit color images is available only in the Document/Medical toolkits.
  • This command does not support 32-bit grayscale images.

For more information, refer to Detecting and Enhancing Edges and Lines.

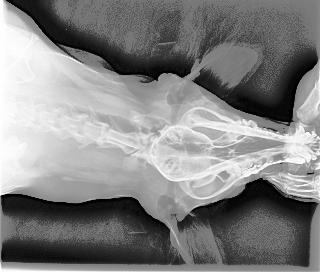

Skeleton Function - Before

Skeleton Function - Before

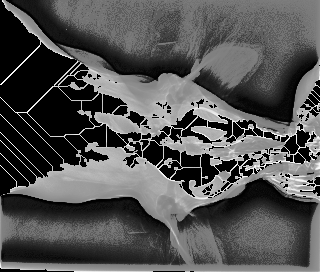

Skeleton Function - After

Skeleton Function - After

View additional platform support for this Skeleton function.

Example

Run the SkeletonCommand on an image.

C#
using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.Effects;


public void SkeletonCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample5.cmp"));

   // Prepare the command
   SkeletonCommand command = new SkeletonCommand();
   command.Threshold = 128;
   command.Run(image);
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS23\Resources\Images";
}
