EdgeDetectStatisticalCommand Class

Summary
Detects edges by examining the variation of colors in all directions using statistical indices.
Syntax
C#
Objective-C
C++/CLI
Java
Python
public class EdgeDetectStatisticalCommand : RasterCommand
@interface LTEdgeDetectStatisticalCommand : LTRasterCommand
public class EdgeDetectStatisticalCommand
    extends RasterCommand
public ref class EdgeDetectStatisticalCommand : public RasterCommand
class EdgeDetectStatisticalCommand(RasterCommand):
Remarks
  • The edges are detected by applying a statistical filter that analyzes the variations of colors in all directions around each pixel.
  • This command supports 12 and 16-bit grayscale and 48 and 64-bit color images. Support for 12 and 16-bit grayscale and 48 and 64-bit color images is available only in the Document/Medical toolkits.
  • This command does not support 32-bit grayscale images.

For more information, refer to Detecting and Enhancing Edges and Lines.

Edge Detect Statistical Function - Before

Edge Detect Statistical Function - Before

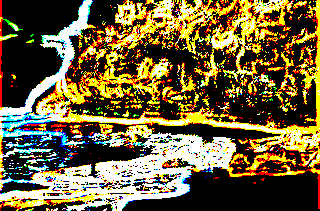

Edge Detect Statistical Function - After

Edge Detect Statistical Function - After

View additional platform support for this Edge Detect Statistical function.

Example

Run the EdgeDetectStatisticalCommand on an image.

C#
Java
using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.Effects;


public void EdgeDetectStatisticalCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "ImageProcessingDemo\\NaturalFruits.jpg"));

   // Prepare the command
   EdgeDetectStatisticalCommand command = new EdgeDetectStatisticalCommand();
   command.Dimension = 15;
   command.Threshold = 128;
   command.EdgeColor = new RasterColor(255, 255, 255);
   command.BackGroundColor = new RasterColor(0, 0, 0);
   // Apply an edge detector statistical command.
   command.Run(image);
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS23\Resources\Images";
}

import java.io.File;
import java.io.IOException;

import org.junit.*;
import org.junit.runner.JUnitCore;
import org.junit.runner.Result;
import org.junit.runner.notification.Failure;
import static org.junit.Assert.assertTrue;

import leadtools.*;
import leadtools.codecs.*;
import leadtools.imageprocessing.effects.EdgeDetectStatisticalCommand;


public void edgeDetectStatisticalCommandExample() {
   final String LEAD_VARS_IMAGES_DIR = "C:\\LEADTOOLS23\\Resources\\Images";

   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.setThrowExceptionsOnInvalidImages(true);

   RasterImage image = codecs.load(combine(LEAD_VARS_IMAGES_DIR, "NaturalFruits.jpg"));

   // Prepare the command
   EdgeDetectStatisticalCommand command = new EdgeDetectStatisticalCommand();
   command.setDimension(15);
   command.setThreshold(128);
   command.setEdgeColor(new RasterColor(255, 255, 255));
   command.setBackGroundColor(new RasterColor(0, 0, 0));

   // Apply an edge detector statistical command.
   int change = command.run(image);
   assertTrue(change != RasterImageChangedFlags.NONE);

   codecs.save(image, combine(LEAD_VARS_IMAGES_DIR, "naturalFruitsResult.jpg"), RasterImageFormat.JPEG, 24);
   System.out.println("Command run, image saved to " + combine(LEAD_VARS_IMAGES_DIR, "naturalFruitsResult.jpg"));
}
Requirements

Target Platforms

Help Version 23.0.2024.3.3
