Overview of the LEADTOOLS Patient Updater

The LEADTOOLS Patient Updater handles the following cases:

Using the LEADTOOLS Patient Updater

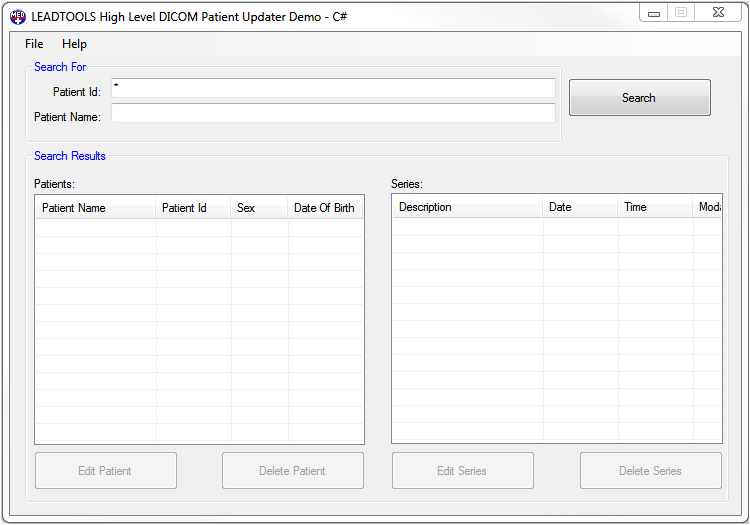

Updating patient records begins with searching the server to find the patient record to be updated. Two search fields are available: Patient ID and Patient Name. The main window of the LEADTOOLS Patient Updater is shown in the following figure:

The following fields are on the main window of the LEADTOOLS Patient Updater:

Search For group

Search Results group

Editing Patient Data

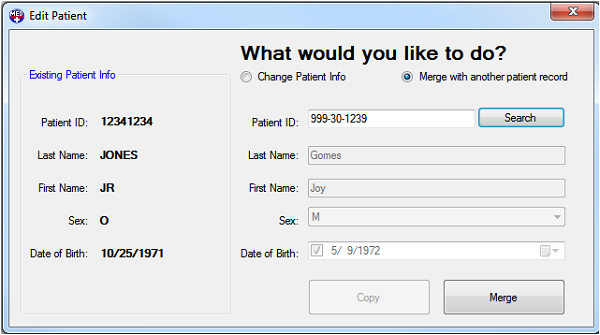

To edit patient data, select an entry in the Patients list view of the Search Results group. Doing so fills the Series list view with those Series associated with that patient. It also enables the Edit Patient and Delete Patient buttons.

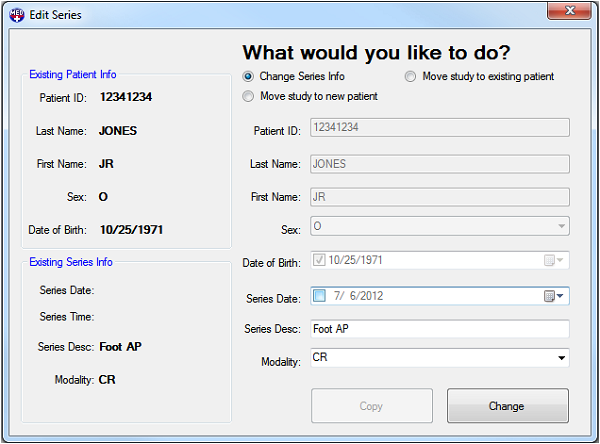

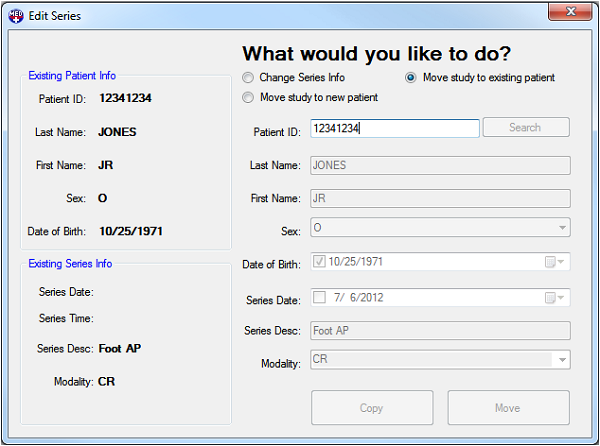

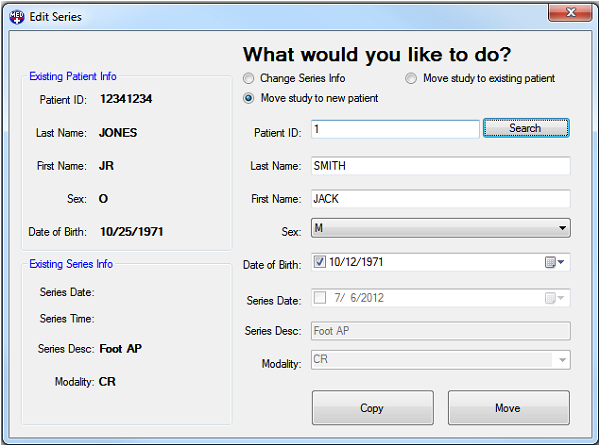

If you want to work on a specific series, select it. Selecting a Series enables the Edit Series and Delete Series buttons.

Deleting Series Data

Begin deleting patient data by selecting an entry in the Patients list view. Selecting a patient record starts a search and the Series list view fills with those Series associated with that patient. It also enables the Edit Patient and Delete Patient buttons. Next, select the series you want to delete. Selecting a Series enables the Edit Series and Delete Series buttons.

Confirmation Process

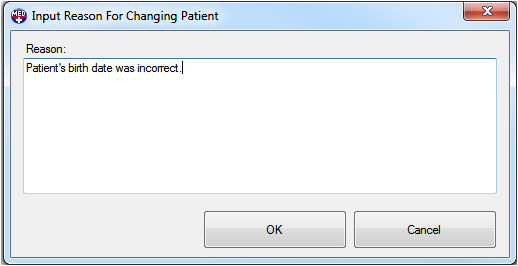

Confirmation is required for database changes. Before committing the changes to the database, the Input Reason For Changing Patient dialog appears. Enter the reason for making the changes and click OK.

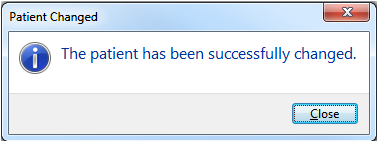

After you click OK, the server logs the reason along with the necessary patient information changes. After logging is complete, a confirmation dialog displays. If you deleted a patient record that record disappears from the Patients list view.
