Use the Gateway Button ( Storage Server Gateway Button) to configure multiple LEADTOOLS Storage Servers from different locations into one query source. This simplifies the client communication, allowing the client to send, query and receive requests to and from the gateway and have it relay the requests to other servers. Clicking the Gateway button on the Control Panel of the LEADTOOLS Storage Server main window opens the Server Settings dialog with the Gateway branch selected in the tree view showing the following page:

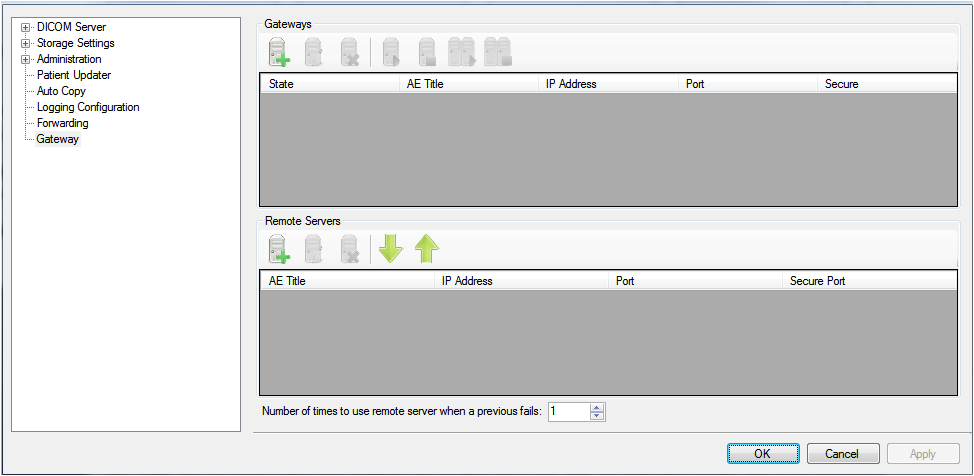

Storage Server Gateway Page

Gateways group

Remote Servers group

Number of times to use remote server when a previous fails: spinner box

Sets the number of times the Gateway will attempt to query the Remote Server before moving to the next Remote Server in the list.

Gateway Configuration for Storage Server 2.0

Perform the following steps in order to configure a gateway for Storage Server 2.0:

The Gateway tab is shown in the following figure:

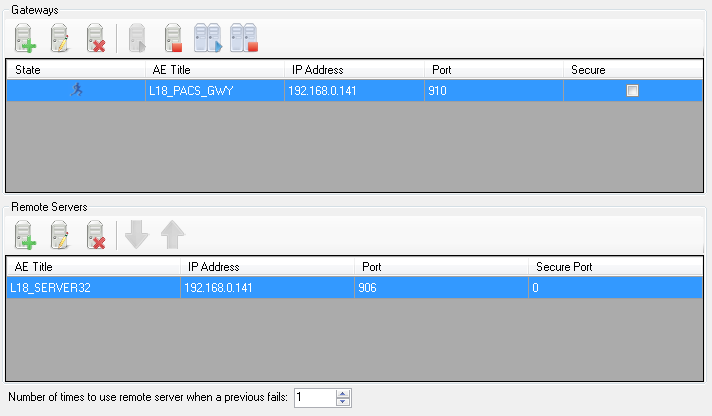

Gateway for Storage Server 2.0
  1. Set up the Gateway name by clicking the Add Gateway Server button (highlighted in yellow in the following figure):

    Add Gateway

    The following dialog appears:

    Create Gateway Server Dialog for Storage Server 2.0
    • AETitle

      Gateway Title, generally the server name with "GW" appended.

    • Address

      IPv4 address of the gateway server.

    • Port

      Gateway port-- this should be different from the server port.

  2. Next, set up the remote server information (the server the gateway will be querying). To do so, click the Add Remote Server Button (highlighted in the following figure).

    Add Remote Server

    The following dialog appears:

    Add Remote Server Dialog for Storage Server 2.0
    • AETitle

      Remote Server Title.

    • Address

      IPv4 address of the remote server.

    • Port

      Port of the remote server.

    Now that the gateway is configured, add in the AE titles on both the gateway server and the remote server to facilitate image transfers.

  3. Gateway Server

    On the gateway server, enter the remote server's AE title. When connecting to a server created with the PACS Config demo the remote server will already be in the list, as shown in the following figure:

    Gateway Server for Storage Server 2.0
    • AETitle

      Remote Server AE Title.

    • Port

      Port of the remote server.

  4. Remote Server

    On the remote server, enter the AE title for the gateway into the remote server's AE title list, as shown in the following figure:

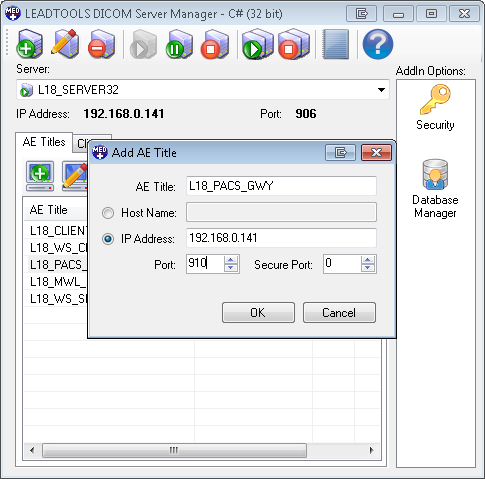

    Add AE Title Dialog for Storage Server 2.0
