Displaying Images Using Microsoft Expression Blend

In this quick tutorial, using the LEADTOOLS for WPF ImageViewer with Microsoft Expression Blend, you will design a layout and create an application that mounts a digital picture inside a digital frame. The entire XAML application can be created in a couple of minutes.

You can use the ImageViewer control to display almost any kind of image, anywhere in your window. In this case, we will use it to add a "picture frame" image. You can even display images on top of one another! In this project, we will use that feature to put a picture into the frame.

  1. Create a project in Microsoft Expression Blend and set it up to use LEADTOOLS WPF controls.
  2. Open the XAML and clear its content then paste the below code instead:
    MainWindow.xaml
    <Window xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:Leadtools_Controls_Wpf="clr-namespace:Leadtools.Controls;assembly=Leadtools.Controls.Wpf"
        x:Class="MyProject.MainWindow"
        x:Name="Window"
        Title="PictureIt!"
        Width="660"
        Height="500">
        <Grid x:Name="LayoutRoot" Margin="0,-2.619,0,2.619">
            <Leadtools_Controls_Wpf:ImageViewer x:Name="_imageViewer" Width="Auto" Height="Auto" Loaded="ImageViewer_Loaded"/>
            <Leadtools_Controls_Wpf:ImageViewer x:Name="_pictureViewer" Width="Auto" Height="Auto" Margin="99,82,97,83"/>
        </Grid>
    </Window>
  3. Open the code behind file and clear its content then paste the code below instead:
    MainWindow.xaml.cs
    using Leadtools.Codecs;
    using Leadtools.Controls;
    using System.IO;
    using System.Windows;

    namespace MyProject
    {
        /// <summary>
        /// Interaction logic for MainWindow.xaml
        /// </summary>
        public partial class MainWindow : Window
        {
            public MainWindow()
            {
                InitializeComponent();
            }

            static class LEAD_VARS
            {
                public const string ImagesDir = @"C:\Users\Public\Documents\LEADTOOLS Images";
            }

            private void ImageViewer_Loaded(object sender, RoutedEventArgs e)
            {
                _imageViewer.Zoom(ControlSizeMode.Stretch, 1.0, _imageViewer.DefaultZoomOrigin);
                _pictureViewer.Zoom(ControlSizeMode.Stretch, 1.0, _imageViewer.DefaultZoomOrigin);

                using (RasterCodecs codecs = new RasterCodecs())
                {
                    _imageViewer.Image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, @"TestFrame1.JPG"));
                    _pictureViewer.Image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, @"ImageProcessingDemo\Fruits.jpg"));
                }
            }
        }
    }
  4. Press F5 to build your application. This will take a few seconds.

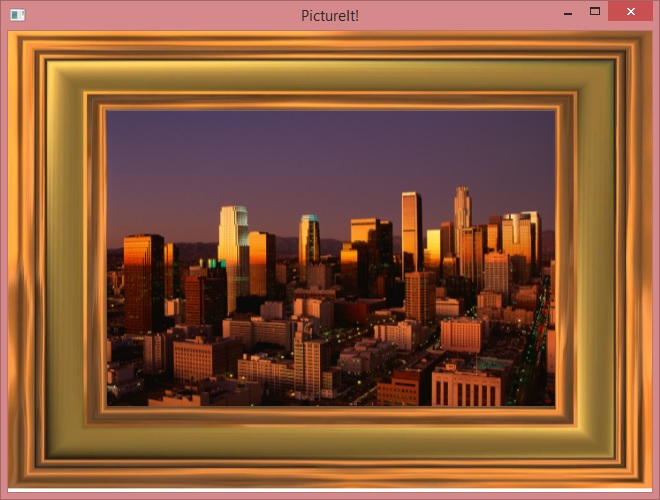

    When it is done, you'll have a "framed" digital picture that you can resize like any window, with the "frame" and the "picture" resized together, but treated as separate objects:


Window Title
