Illustration of the Polygon Fill Mode for Annotations

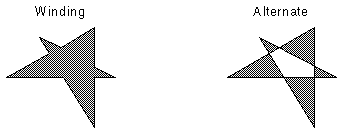

[Deprecated, use Leadtools.Annotations.Engine] Note: This topic is for Document/Medical only. The following polygon annotation objects illustrate the available polygon fill modes:

Value Meaning
Winding The area inside the resulting exterior lines is filled.
Alternate The filled area includes the area between odd-numbered and even-numbered polygon sides on each scan line.
