LEAD Video Emboss Filter User Interface

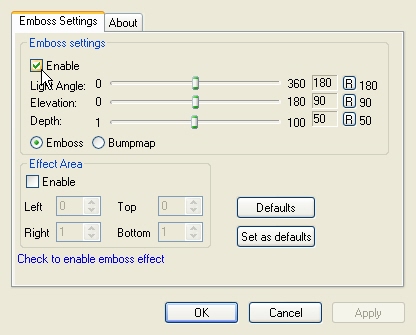

The Video Emboss Filter gives the video an embossed or raised look. The effect can be applied to a limited area (rectangle) of the video by changing the "Effect Area" attributes in the property page. Its property page is shown in the figure below:

The Video Emboss Filter property page provides a user interface for changing the Emboss Video effect.

Changes will be applied directly to the streaming media with the ability to set them permanently using the Apply button or abandon them by pressing the Cancel button. The OK button has the same effect as the Apply.

Control	Description
Enable check box	Enables/Disables the effect.
Light Angle slider	The light Angle, 0 to 360 degrees, this parameter will control the light direction.
Elevation slider	Elevation angle, 0 to 180 degrees, 0 value will have outer embossing, 180 will have inner embossing effect.
Depth slider	Depth of emboss effect, 1 to 100.
Emboss radio button	If selected, emboss without a bump map.
Bumpmap radio button	If selected, emboss with a bump map.
