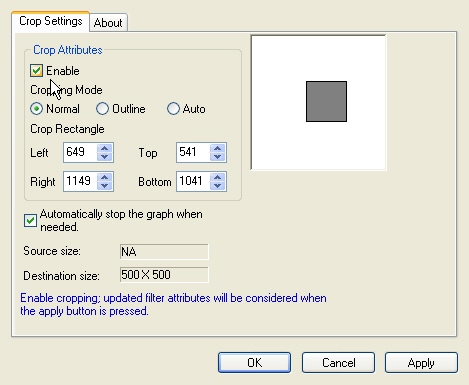

The Crop Video filter lets you play, capture or convert only a specific rectangular area within the video. The cropped rectangle can be as small as 1x1. The property page is shown in the following figure:
Changes will be applied directly to the streaming media by selecting Apply or OK, or abandoned by selecting Cancel. Positioning the mouse pointer over a control displays general information for that control. The following table shows the controls and their descriptions:
Control | Description |
---|---|
Enable check box | Enables/Disables the effect. |
Normal Radio Button | The filter operates the default way. |
Outline Radio Button | Highlight the cropping area with a rectangle. |
Auto Radio Button | The filter automatically detects the cropping coordinates. |
Left spin edit box | The left coordinate of the cropped rectangle. |
Top spin edit box | The top coordinate of the cropped rectangle. |
Right spin edit box | The right coordinate of the cropped rectangle. |
Bottom spin edit box | The bottom coordinate of the cropped rectangle. |
Automatically Stop check box | If selected, allows stopping of the graph automatically. This is needed when the dimensions change while the graph is running. You must re-run the graph after the change is applied. |
