PACS Workstation Framework SDK Technology

The LEADTOOLS PACS Workstation Framework is a set of .NET (C# & VB) PACS components that can be used to build a fully featured PACS Workstation application. This comprehensive framework is the result of more than a decade of development experience from direct collaboration with medical institutions working to meet the requirements of hospitals and practices.

Overview of LEADTOOLS PACS Workstation Framework

  • 2D and 3D Workstation Viewer
  • Real-world tools used by radiologists and other health care professionals
  • Modular design features fully customizable components to build an entire PACS or replace individual pieces of an existing system
    • PACS Client and Server
    • Database and Data Access Layer
    • Media Creation Management
  • Works out of the box, but source code is provided for easy customization, localization, and branding

LEADTOOLS PACS Workstation Framework Components

The LEADTOOLS PACS Workstation Framework is divided into several components built with the LEADTOOLS High-level PACS Framework. These workstation components include default implementations that can be replaced or customized to meet the specific needs of your organization. The object oriented and componentized design facilitates piecemeal or whole development of PACS Workstation systems.

DICOM Client

Any LEADTOOLS or third-party DICOM client can communicate with the LEADTOOLS PACS Workstation Framework, using Study Root Query and Retrieve, Storage and Storage Commitment, and Find and Move Services.

DICOM PACS Server

With the LEADTOOLS High-level DICOM PACS Server component, LEADTOOLS and third-party DICOM clients can query, retrieve, and store to a workstation database.

DICOM PACS Workstation Add-ins

Because every system and organization is different, it is impossible to create a product that would meet every need out of the box. For this reason, the LEADTOOLS PACS Workstation Framework leverages add-ins that developers can quickly implement to perform various tasks. All DICOM requests are delegated to the add-ins for processing. The LEADTOOLS PACS Workstation Framework includes source code for several add-in implementations.

DICOM PACS Workstation Data Access Layer

The LEADTOOLS PACS Workstation Data Access Layer (DAL) ensures maximum flexibility for data storage. Developers can inherit from a LEADTOOLS PACS Workstation DAL implementation for virtually any database system, including SQL server, Oracle, and MySQL.

Database

By implementing the respective data access layer, any database system can be used with the LEADTOOLS PACS Workstation Framework. The default DAL included with the LEADTOOLS PACS Workstation Framework supports SQL Server and SQL CE.

DICOM PACS Workstation User Controls

The LEADTOOLS PACS Workstation includes all user interface controls needed to build a DICOM Workstation. Provided controls include an image viewer, search, service manager, log viewer, and configuration. All of the controls can be easily customized to meet the specific needs of your users.

DICOM PACS Workstation Client

The LEADTOOLS PACS Workstation Framework uses DAL components to query, retrieve, and store images in a local database. The PACS Workstation Client uses the LEADTOOLS PACS Framework to query, retrieve, and store images in remote DICOM PACS servers.

DICOM PACS Workstation Loader

The LEADTOOLS PACS Workstation Loader retrieves study, series, and image information from the Workstation Client and loads that information into the LEADTOOLS Medical Viewer control.

DICOM PACS High-level Client Framework

The LEADTOOLS DICOM PACS High-level Client Framework builds upon the LEADTOOLS PACS Framework to facilitate communication between PACS Workstation clients and any DICOM PACS server.

Remote DICOM PACS Server

The LEADTOOLS PACS Workstation Framework can communicate with any DICOM PACS server.

Additional Workstation Components and Add-ins

LEADTOOLS Medical Workstation Viewer

The LEADTOOLS Medical Workstation Viewer is a high-end Medical end-user application that is currently being used in the health care industry. The viewer provides developers with the functionality and features required by medical professionals, device manufacturers, research facilities, or anyone that requires to view, retrieve, store, and analyze 2D and 3D DICOM images.

  • Medical Image Viewers
    • Flexible display layouts for studies, series, and images
    • Display DICOM images and DICOM Encapsulated PDF
    • Create, load, and save annotations with any image
    • Create modality-specific window level presets to quickly adjust the display for specific tissues and pathologies
    • Automated tools to zoom, pan, window level, orient, and more
    • Configurable image orientation based on Patient Position, Modality, or any other DICOM Tag
  • Patient history with a chronological timeline with thumbnails of studies and series saves reviewers' time
  • Advanced 3D visualization with LEADTOOLS Medical 3D SDK Technology
  • DICOM SCU Query/Retrieve, and Store
  • DICOM SCP service provides Query/Retrieve, Store, and Storage Commit
  • Export DICOM data sets and DICOMDIRs with optional anonymization
  • DICOM Media Creation
  • DICOM Transaction Logging
  • User Access Control

The LEADTOOLS Medical Workstation Viewer uses the LEADTOOLS high-level medical image viewer control to provide unconstrained display layouts, stacking, cine, synchronized scrolling, reference lines, and interactive mouse tools such as window level, zoom, pan, annotation, measurement, and region of interest.

The LEADTOOLS 3D engine adds 3D volume generation from 2D CT, MRI, and PET stacks, and MIP, MinMIP, VRT, and SSD rendering into the LEADTOOLS Medical Workstation Viewer. The LEADTOOLS 3D engine can also generate an MIP slab from 2D slices, and orthogonal MPR, arbitrary single and double cut planes.

The source code is provided for easy customization, localization, and branding. Developers may completely customize the look and feel, functionality, and capabilities of the workstation, or use the Medical Workstation as-is and brand it with their own logo.

LEADTOOLS PACS Workstation Framework Add-ins

The LEADTOOLS PACS Workstation Framework includes source code for several add-in implementations, including:

  • Study Root Find SCP Service
  • Study Root Move SCP Service
  • Storage Service
  • Storage Commit Service
  • DICOM Transaction Log to Database
  • Media Creation Management

DICOM Media Creation Management (CD/DVD Burning)

The LEADTOOLS Workstation Framework supports the DICOM Media Creation Management IOD and Service Classes. Users can submit Media Creation requests to any DICOM Media Creation station to burn DICOM studies, series, and images to CDs, DVDs, or any other media. Additionally, LEADTOOLS includes a stand-alone Workstation Viewer that can run from portable media to read a DICOM Directory.

Media Creation Management features can be used to manually burn media discs on any Workstation Client or queue up requests to a centralized media burner station. LEADTOOLS can directly interface with Primera Bravo devices to automatically burn DICOM CD and DVD media. Add-in source code is provided to customize support for any burner device.

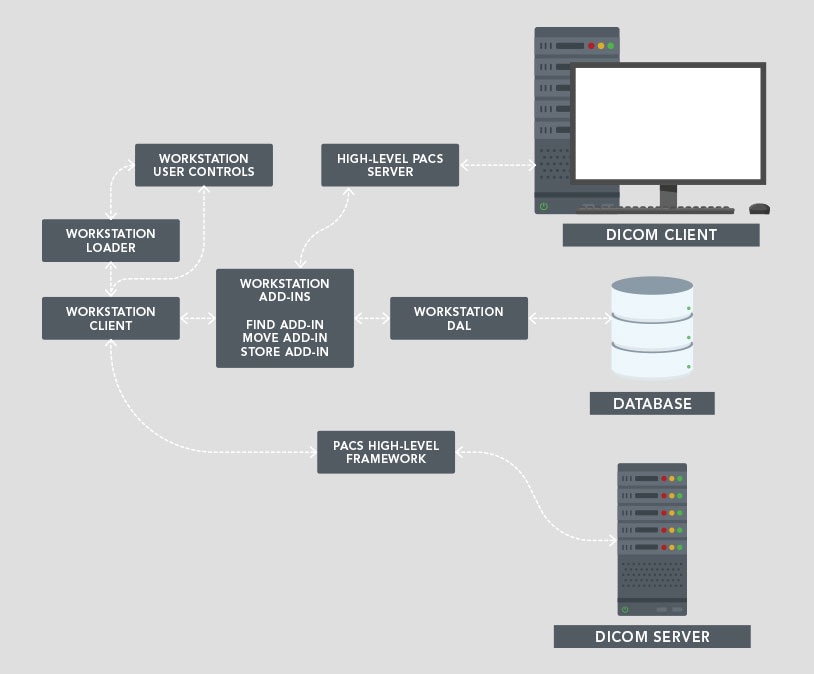

DICOM Client Workstation User Controls Workstation Loader Workstation Client Workstation Add-ins Workstation DAL PACS High-level Framework Database DICOM Server High-level PACS Server
