LeadFillMode Enumeration

Summary

Specifies how a polygonal shape with crossing lines is filled.

Syntax

Objective-C

C++/CLI

Java

Python

public enum LeadFillMode

typedef NS_ENUM(NSInteger, LTLeadFillMode) {
 LTLeadFillModeAlternate,
 LTLeadFillModeWinding
};

public final class LeadFillMode
    extends java.lang.Enum<LeadFillMode>

public enum class LeadFillMode

class LeadFillMode(Enum):
   Alternate = 0
   Winding = 1

Members

Value	Member	Description
0	Alternate	The filled area includes the area between odd-numbered and even-numbered polygon sides on each scan line.
1	Winding	All pixels that are inside the resulting exterior lines are filled.

Remarks

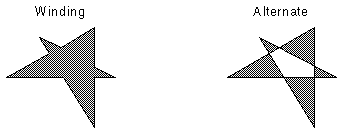

The following figure describes how fill mode is used:

Example

Java

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing;
using Leadtools.ImageProcessing.Core;
using Leadtools.ImageProcessing.Color;
using Leadtools.Dicom;
using Leadtools.Drawing;
using Leadtools.Controls;
using Leadtools.Svg;


public void AddPolygonToRegionExample()
{
   RasterCodecs codecs = new RasterCodecs();

   string srcFileName = Path.Combine(LEAD_VARS.ImagesDir, "Image1.cmp");
   string destFileName = Path.Combine(LEAD_VARS.ImagesDir, "Image1_AddPolygonToRegion.bmp");

   // Load the image
   RasterImage image = codecs.Load(srcFileName);

   // Add a polygon region

   RasterRegionXForm xform = new RasterRegionXForm();
   xform.ViewPerspective = RasterViewPerspective.TopLeft;
   xform.XOffset = 0;
   xform.YOffset = 0;
   xform.XScalarDenominator = 1;
   xform.XScalarNumerator = 1;
   xform.YScalarDenominator = 1;
   xform.YScalarNumerator = 1;

   int x1 = image.ImageWidth / 4;
   int y1 = image.ImageHeight / 4;
   int x2 = image.ImageWidth / 3;
   int y2 = image.ImageHeight / 3;

   LeadPoint[] pts =
   {
   new LeadPoint(x1, y1),
   new LeadPoint(x2, y1),
   new LeadPoint(x1, y2),
   new LeadPoint(x2, y2)
 };

   image.AddPolygonToRegion(xform, pts, LeadFillMode.Winding, RasterRegionCombineMode.Set);

   // Draw something on the image
   InvertCommand command = new InvertCommand();
   command.Run(image);

   // Save the image
   codecs.Save(image, destFileName, RasterImageFormat.Bmp, 24);

   image.Dispose();
   codecs.Dispose();
}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS23\Resources\Images";
}


import java.io.File;
import java.io.FileInputStream;
import java.io.IOException;
import java.io.InputStream;
import java.util.ArrayList;
import java.util.List;

import org.junit.*;
import org.junit.runner.JUnitCore;
import org.junit.runner.Result;
import org.junit.runner.notification.Failure;
import static org.junit.Assert.*;

import leadtools.*;
import leadtools.codecs.*;
import leadtools.imageprocessing.core.*;
import leadtools.svg.*;
import leadtools.imageprocessing.CloneCommand;
import leadtools.imageprocessing.FillCommand;
import leadtools.imageprocessing.FlipCommand;
import leadtools.imageprocessing.GrayscaleCommand;
import leadtools.imageprocessing.color.InvertCommand;
import leadtools.imageprocessing.color.PosterizeCommand;


public void addPolygonToRegionExample() {
   final String LEAD_VARS_IMAGES_DIR = "C:\\LEADTOOLS23\\Resources\\Images";
   RasterCodecs codecs = new RasterCodecs();
   String srcFileName = combine(LEAD_VARS_IMAGES_DIR, "Image1.cmp");
   String destFileName = combine(LEAD_VARS_IMAGES_DIR, "Image1_AddPolygonToRegion.bmp");

   // Load the image
   RasterImage image = codecs.load(srcFileName);

   // Add a polygon region
   RasterRegionXForm xform = new RasterRegionXForm();
   xform.setRasterViewPerspective(RasterViewPerspective.TOP_LEFT);
   xform.setXOffset(0);
   xform.setYOffset(0);
   xform.setXScalarDenominator(1);
   xform.setXScalarNumerator(1);
   xform.setYScalarDenominator(1);
   xform.setYScalarNumerator(1);

   int x1 = image.getImageWidth() / 4;
   int y1 = image.getImageHeight() / 4;
   int x2 = image.getImageWidth() / 3;
   int y2 = image.getImageHeight() / 3;

   LeadPoint[] pts = { new LeadPoint(x1, y1), new LeadPoint(x2, y1), new LeadPoint(x1, y2), new LeadPoint(x2, y2) };

   image.addPolygonToRegion(xform, pts, LeadFillMode.WINDING, RasterRegionCombineMode.SET);

   // Draw something on the image
   InvertCommand command = new InvertCommand();
   command.run(image);

   // Save it
   codecs.save(image, destFileName, RasterImageFormat.BMP, 24);

   // Clean up
   image.dispose();
   codecs.dispose();

   assertTrue("file unsuccessfully saved to " + destFileName, (new File(destFileName)).exists());
   System.out.printf("File saved successfully to %s%n", destFileName);
}
