RasterOpenDialog Class

Syntax
C#
VB
C++
public class RasterOpenDialog : IDisposable

Public Class RasterOpenDialog
   Implements System.IDisposable
public ref class RasterOpenDialog : public System.IDisposable
Remarks

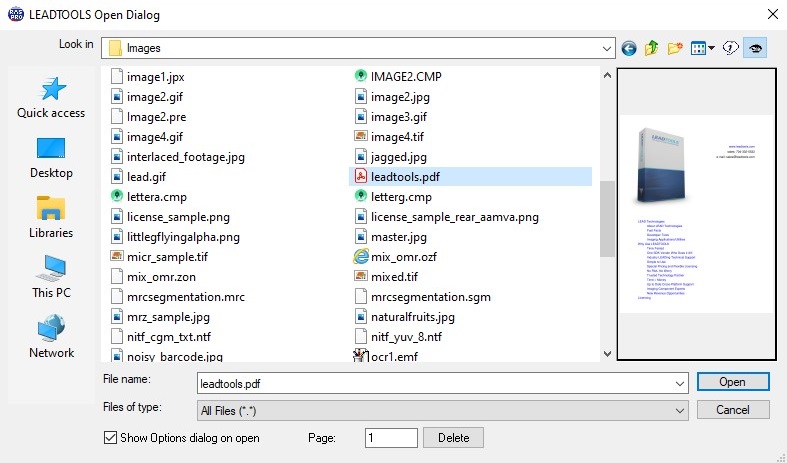

The Raster Open Dialog can be seen below:

Raster Open Dialog
Example
C#
VB
using Leadtools;
using Leadtools.Codecs;
using Leadtools.WinForms.CommonDialogs.File;


public void RasterOpenDialogExample()
{
	RasterCodecs rasterCodecs = new RasterCodecs();

	RasterOpenDialog openDlg = new RasterOpenDialog(rasterCodecs);

	openDlg.Filter = new RasterOpenDialogLoadFormat[]
	{
	new RasterOpenDialogLoadFormat ( "All Files", "*.*" ),
	new RasterOpenDialogLoadFormat ( "LEAD", "*.cmp" )
	};

	openDlg.CheckFileExists = true;
	openDlg.CheckPathExists = true;
	openDlg.DefaultExt = "cmp";
	openDlg.DereferenceLinks = true;
	openDlg.EnableSizing = true;
	openDlg.FileName = "Image1.cmp";
	openDlg.FilterIndex = 2;
	openDlg.GenerateThumbnail = false;
	openDlg.InitialDirectory = LEAD_VARS.ImagesDir;
	openDlg.InitialView = FileDialogInitialView.List;
	openDlg.LoadCompressed = true;
	openDlg.LoadFileImage = false;
	openDlg.LoadOptions = false;
	openDlg.LoadRotated = false;
	openDlg.Multiselect = true;
	openDlg.PreviewWindowVisible = true;
	openDlg.ShowDeletePage = true;
	openDlg.ShowFileInformation = true;
	openDlg.ShowGeneralOptions = true;
	openDlg.ShowHelp = true;
	openDlg.ShowLoadCompressed = true;
	openDlg.ShowLoadOptions = true;
	openDlg.ShowLoadRotated = true;
	openDlg.ShowMultipage = true;
	openDlg.ShowPdfOptions = true;
	openDlg.ShowXpsOptions = true;
	openDlg.ShowXlsOptions = true;
	openDlg.ShowVffOptions = true;
	openDlg.ShowAnzOptions = true;
	openDlg.ShowVectorOptions = true;
	openDlg.ShowPreview = true;
	openDlg.ShowProgressive = true;
	openDlg.ShowRasterOptions = true;
	openDlg.ShowTotalPages = true;
	openDlg.Title = "Open Dialog";
	openDlg.UseFileStamptoPreview = true;
	openDlg.Help += new EventHandler<RasterDialogHelpEventArgs>(openDlg_Help);
	openDlg.LoadCorrupted = true;

	// if you set "openDlg.LoadFileImage = true" this event will be fired
	openDlg.LoadProgress += new EventHandler<RasterDialogLoadProgressEventArgs>(openDlg_LoadProgress);

	if (DialogResult.OK == openDlg.ShowDialog(null))
	{
		for (int i = 0; i < openDlg.OpenedFileData.Count; i++)
		{
			RasterDialogFileData fileDataItem = openDlg.OpenedFileData[i];

			// this is not an image file.
			if (fileDataItem.Options == null)
			{
				continue;
			}

			rasterCodecs.Options.RasterizeDocument.Load.PageWidth = fileDataItem.Options.RasterizeDocumentOptions.PageWidth;
			rasterCodecs.Options.RasterizeDocument.Load.PageHeight = fileDataItem.Options.RasterizeDocumentOptions.PageHeight;
			rasterCodecs.Options.RasterizeDocument.Load.LeftMargin = fileDataItem.Options.RasterizeDocumentOptions.LeftMargin;
			rasterCodecs.Options.RasterizeDocument.Load.TopMargin = fileDataItem.Options.RasterizeDocumentOptions.TopMargin;
			rasterCodecs.Options.RasterizeDocument.Load.RightMargin = fileDataItem.Options.RasterizeDocumentOptions.RightMargin;
			rasterCodecs.Options.RasterizeDocument.Load.BottomMargin = fileDataItem.Options.RasterizeDocumentOptions.BottomMargin;
			rasterCodecs.Options.RasterizeDocument.Load.Unit = fileDataItem.Options.RasterizeDocumentOptions.Unit;
			rasterCodecs.Options.RasterizeDocument.Load.XResolution = fileDataItem.Options.RasterizeDocumentOptions.XResolution;
			rasterCodecs.Options.RasterizeDocument.Load.YResolution = fileDataItem.Options.RasterizeDocumentOptions.YResolution;
			rasterCodecs.Options.RasterizeDocument.Load.SizeMode = fileDataItem.Options.RasterizeDocumentOptions.SizeMode;

			switch (fileDataItem.Options.FileType)
			{
				case RasterDialogFileOptionsType.Meta:
					{
						if (null != fileDataItem.Options.MetaOptions)
						{
							rasterCodecs.Options.Wmf.Load.XResolution = fileDataItem.Options.MetaOptions.XResolution;
							rasterCodecs.Options.Wmf.Load.YResolution = fileDataItem.Options.MetaOptions.XResolution;
						}
						break;
					}

				case RasterDialogFileOptionsType.Pdf:
					{
						if ((null != fileDataItem.Options.PdfOptions) &&
							  rasterCodecs.Options.Pdf.IsEngineInstalled)
						{
							rasterCodecs.Options.Pdf.Load.DisplayDepth = fileDataItem.Options.PdfOptions.DisplayDepth;
							rasterCodecs.Options.Pdf.Load.GraphicsAlpha = fileDataItem.Options.PdfOptions.GraphicsAlpha;

							if (fileDataItem.Options.PdfOptions.Password != null)
							{
								rasterCodecs.Options.Pdf.Load.Password = fileDataItem.Options.PdfOptions.Password;
							}

							rasterCodecs.Options.Pdf.Load.TextAlpha = fileDataItem.Options.PdfOptions.TextAlpha;
							rasterCodecs.Options.Pdf.Load.UseLibFonts = fileDataItem.Options.PdfOptions.UseLibFonts;
						}
						break;
					}

				case RasterDialogFileOptionsType.Misc:
					{
						if (null == fileDataItem.Options.MiscOptions)
						{
							continue;
						}

						switch (fileDataItem.FileInfo.Format)
						{
							case RasterImageFormat.Jbig:
								{
									rasterCodecs.Options.Jbig.Load.Resolution = new LeadSize(fileDataItem.Options.MiscOptions.XResolution,
									   fileDataItem.Options.MiscOptions.YResolution);
									break;
								}

							case RasterImageFormat.Cmw:
								{
									rasterCodecs.Options.Jpeg2000.Load.CmwResolution = new LeadSize(fileDataItem.Options.MiscOptions.XResolution,
									   fileDataItem.Options.MiscOptions.YResolution);
									break;
								}

							case RasterImageFormat.Jp2:
								{
									rasterCodecs.Options.Jpeg2000.Load.Jp2Resolution = new LeadSize(fileDataItem.Options.MiscOptions.XResolution,
									   fileDataItem.Options.MiscOptions.YResolution);
									break;
								}

							case RasterImageFormat.J2k:
								{
									rasterCodecs.Options.Jpeg2000.Load.J2kResolution = new LeadSize(fileDataItem.Options.MiscOptions.XResolution,
									   fileDataItem.Options.MiscOptions.YResolution);
									break;
								}
						}
						break;
					}

				case RasterDialogFileOptionsType.Xls:
					rasterCodecs.Options.Xls.Load.MultiPageSheet = fileDataItem.Options.XlsOptions.MultiPageSheet;
					rasterCodecs.Options.Xls.Load.MultiPageEnableMargins = fileDataItem.Options.XlsOptions.MultiPageEnableMargins;
					rasterCodecs.Options.Xls.Load.MultiPageUseSheetWidth = fileDataItem.Options.XlsOptions.MultiPageUseSheetWidth;
					rasterCodecs.Options.Xls.Load.PageOrderDownThenOver = fileDataItem.Options.XlsOptions.PageOrderDownThenOver;
					break;

				case RasterDialogFileOptionsType.Vff:
					rasterCodecs.Options.Vff.Load.View = fileDataItem.Options.VffOptions.View;
					break;

				case RasterDialogFileOptionsType.Anz:
					rasterCodecs.Options.Anz.Load.View = fileDataItem.Options.AnzOptions.View;
					break;

				case RasterDialogFileOptionsType.Vector:
					rasterCodecs.Options.Vector.Load.BackgroundColor = fileDataItem.Options.VectorOptions.Options.BackgroundColor;
					rasterCodecs.Options.Vector.Load.BitsPerPixel = fileDataItem.Options.VectorOptions.Options.BitsPerPixel;
					rasterCodecs.Options.Vector.Load.ForceBackgroundColor = fileDataItem.Options.VectorOptions.Options.ForceBackgroundColor;
					rasterCodecs.Options.Vector.Load.ViewHeight = fileDataItem.Options.VectorOptions.Options.ViewHeight;
					rasterCodecs.Options.Vector.Load.ViewMode = fileDataItem.Options.VectorOptions.Options.ViewMode;
					rasterCodecs.Options.Vector.Load.ViewWidth = fileDataItem.Options.VectorOptions.Options.ViewWidth;
					break;
			}

			rasterCodecs.Options.Load.Passes = fileDataItem.Passes;
			rasterCodecs.Options.Load.Rotated = fileDataItem.LoadRotated;
			rasterCodecs.Options.Load.Compressed = fileDataItem.LoadCompressed;

			RasterImage loadedImage = rasterCodecs.Load(fileDataItem.Name,
			   0,
			   CodecsLoadByteOrder.BgrOrGray,
			   fileDataItem.PageNumber,
			   fileDataItem.PageNumber);

			// COPY THE 'loadedImage' IMAGE.

			loadedImage.Dispose();
		}
	}
}
public void openDlg_Help(object sender, RasterDialogHelpEventArgs e)
{
	switch (e.Dialog)
	{
		case RasterDialogHelpName.Open:
			{
				MessageBox.Show("Open dialog Help");
				break;
			}

		case RasterDialogHelpName.LoadOptions:
			{
				MessageBox.Show("Load Options dialog Help");
				break;
			}
	}
}

public void openDlg_LoadProgress(object sender, RasterDialogLoadProgressEventArgs e)
{
	string displayText;

	displayText = "(" + e.FilePercent.ToString() + "%) of" + e.LoadRasterFileData.Name + "file is loaded";
	MessageBox.Show(displayText);

	displayText = "(" + e.TotalPercent.ToString() + "%) of all file(s) loading process is completed";
	MessageBox.Show(displayText);
}


static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS22\Resources\Images";
}
Imports Leadtools
Imports Leadtools.Codecs
Imports Leadtools.WinForms.CommonDialogs.File

Public Sub openDlg_Help(ByVal sender As Object, ByVal e As RasterDialogHelpEventArgs) Handles openDlg.Help
   Select Case e.Dialog
      Case RasterDialogHelpName.Open
         MessageBox.Show("Open dialog Help")
         Exit Select

      Case RasterDialogHelpName.LoadOptions
         MessageBox.Show("Load Options dialog Help")
         Exit Select
   End Select
End Sub

Public Sub openDlg_LoadProgress(ByVal sender As Object, ByVal e As RasterDialogLoadProgressEventArgs) Handles openDlg.LoadProgress
   Dim displayText As String

   displayText = "(" & e.FilePercent.ToString() & "%) of" & e.LoadRasterFileData.Name & "file is loaded"
   MessageBox.Show(displayText)

   displayText = "(" & e.TotalPercent.ToString() & "%) of all file(s) loading process is completed"
   MessageBox.Show(displayText)
End Sub

WithEvents openDlg As RasterOpenDialog

Public Sub RasterOpenDialogExample()
   Dim rasterCodecs As RasterCodecs = New RasterCodecs()

   openDlg = New RasterOpenDialog(rasterCodecs)

   openDlg.Filter = New RasterOpenDialogLoadFormat() {New RasterOpenDialogLoadFormat("All Files", "*.*"), New RasterOpenDialogLoadFormat("LEAD", "*.cmp")}

   openDlg.CheckFileExists = True
   openDlg.CheckPathExists = True
   openDlg.DefaultExt = "cmp"
   openDlg.DereferenceLinks = True
   openDlg.EnableSizing = True
   openDlg.FileName = "Image.cmp"
   openDlg.FilterIndex = 2
   openDlg.GenerateThumbnail = False
   openDlg.InitialDirectory = LEAD_VARS.ImagesDir
   openDlg.InitialView = FileDialogInitialView.List
   openDlg.LoadCompressed = True
   openDlg.LoadFileImage = False
   openDlg.LoadOptions = False
   openDlg.LoadRotated = False
   openDlg.Multiselect = True
   openDlg.PreviewWindowVisible = True
   openDlg.ShowDeletePage = True
   openDlg.ShowFileInformation = True
   openDlg.ShowGeneralOptions = True
   openDlg.ShowHelp = True
   openDlg.ShowLoadCompressed = True
   openDlg.ShowLoadOptions = True
   openDlg.ShowLoadRotated = True
   openDlg.ShowMultipage = True
   openDlg.ShowPdfOptions = True
   openDlg.ShowXpsOptions = True
   openDlg.ShowXlsOptions = True
   openDlg.ShowVffOptions = True
   openDlg.ShowAnzOptions = True
   openDlg.ShowVectorOptions = True
   openDlg.ShowPreview = True
   openDlg.ShowProgressive = True
   openDlg.ShowRasterOptions = True
   openDlg.ShowTotalPages = True
   openDlg.Title = "Open Dialog"
   openDlg.UseFileStamptoPreview = True
   openDlg.LoadCorrupted = True

   If DialogResult.OK = openDlg.ShowDialog(Nothing) Then
      For i As Integer = 0 To openDlg.OpenedFileData.Count
         Dim fileDataItem As RasterDialogFileData = CType(openDlg.OpenedFileData(i), RasterDialogFileData)

         ' this is not an image file.
         If fileDataItem.Options Is Nothing Then
            Continue For
         End If

         rasterCodecs.Options.RasterizeDocument.Load.PageWidth = fileDataItem.Options.RasterizeDocumentOptions.PageWidth
         rasterCodecs.Options.RasterizeDocument.Load.PageHeight = fileDataItem.Options.RasterizeDocumentOptions.PageHeight
         rasterCodecs.Options.RasterizeDocument.Load.LeftMargin = fileDataItem.Options.RasterizeDocumentOptions.LeftMargin
         rasterCodecs.Options.RasterizeDocument.Load.TopMargin = fileDataItem.Options.RasterizeDocumentOptions.TopMargin
         rasterCodecs.Options.RasterizeDocument.Load.RightMargin = fileDataItem.Options.RasterizeDocumentOptions.RightMargin
         rasterCodecs.Options.RasterizeDocument.Load.BottomMargin = fileDataItem.Options.RasterizeDocumentOptions.BottomMargin
         rasterCodecs.Options.RasterizeDocument.Load.Unit = fileDataItem.Options.RasterizeDocumentOptions.Unit
         rasterCodecs.Options.RasterizeDocument.Load.XResolution = fileDataItem.Options.RasterizeDocumentOptions.XResolution
         rasterCodecs.Options.RasterizeDocument.Load.YResolution = fileDataItem.Options.RasterizeDocumentOptions.YResolution
         rasterCodecs.Options.RasterizeDocument.Load.SizeMode = fileDataItem.Options.RasterizeDocumentOptions.SizeMode

         Select Case fileDataItem.Options.FileType
            Case RasterDialogFileOptionsType.Meta
               If Not Nothing Is fileDataItem.Options.MetaOptions Then
                  rasterCodecs.Options.Wmf.Load.XResolution = fileDataItem.Options.MetaOptions.XResolution
                  rasterCodecs.Options.Wmf.Load.YResolution = fileDataItem.Options.MetaOptions.XResolution
               End If
               Exit Select

            Case RasterDialogFileOptionsType.Pdf
               If (Not Nothing Is fileDataItem.Options.PdfOptions) AndAlso rasterCodecs.Options.Pdf.IsEngineInstalled Then
                  rasterCodecs.Options.Pdf.Load.DisplayDepth = fileDataItem.Options.PdfOptions.DisplayDepth
                  rasterCodecs.Options.Pdf.Load.GraphicsAlpha = fileDataItem.Options.PdfOptions.GraphicsAlpha

                  If Not fileDataItem.Options.PdfOptions.Password Is Nothing Then
                     rasterCodecs.Options.Pdf.Load.Password = fileDataItem.Options.PdfOptions.Password
                  End If

                  rasterCodecs.Options.Pdf.Load.TextAlpha = fileDataItem.Options.PdfOptions.TextAlpha
                  rasterCodecs.Options.Pdf.Load.UseLibFonts = fileDataItem.Options.PdfOptions.UseLibFonts
               End If
               Exit Select

            Case RasterDialogFileOptionsType.Misc
               If Nothing Is fileDataItem.Options.MiscOptions Then
                  Continue For
               End If

               Select Case fileDataItem.FileInfo.Format
                  Case RasterImageFormat.Jbig
                     rasterCodecs.Options.Jbig.Load.Resolution = New LeadSize(fileDataItem.Options.MiscOptions.XResolution,
                                                                              fileDataItem.Options.MiscOptions.YResolution)
                     Exit Select

                  Case RasterImageFormat.Cmw
                     rasterCodecs.Options.Jpeg2000.Load.CmwResolution = New LeadSize(fileDataItem.Options.MiscOptions.XResolution,
                                                                                     fileDataItem.Options.MiscOptions.YResolution)
                     Exit Select

                  Case RasterImageFormat.Jp2
                     rasterCodecs.Options.Jpeg2000.Load.Jp2Resolution = New LeadSize(fileDataItem.Options.MiscOptions.XResolution,
                                                                                     fileDataItem.Options.MiscOptions.YResolution)
                     Exit Select

                  Case RasterImageFormat.J2k
                     rasterCodecs.Options.Jpeg2000.Load.J2kResolution = New LeadSize(fileDataItem.Options.MiscOptions.XResolution,
                                                                                     fileDataItem.Options.MiscOptions.YResolution)
                     Exit Select
               End Select
               Exit Select
            Case RasterDialogFileOptionsType.Xls
               rasterCodecs.Options.Xls.Load.MultiPageSheet = fileDataItem.Options.XlsOptions.MultiPageSheet
               rasterCodecs.Options.Xls.Load.MultiPageEnableMargins = fileDataItem.Options.XlsOptions.MultiPageEnableMargins
               rasterCodecs.Options.Xls.Load.MultiPageUseSheetWidth = fileDataItem.Options.XlsOptions.MultiPageUseSheetWidth
               rasterCodecs.Options.Xls.Load.PageOrderDownThenOver = fileDataItem.Options.XlsOptions.PageOrderDownThenOver
               Exit Select
            Case RasterDialogFileOptionsType.Vff
               rasterCodecs.Options.Vff.Load.View = fileDataItem.Options.VffOptions.View
               Exit Select
            Case RasterDialogFileOptionsType.Anz
               rasterCodecs.Options.Anz.Load.View = fileDataItem.Options.AnzOptions.View
               Exit Select
            Case RasterDialogFileOptionsType.Vector
               rasterCodecs.Options.Vector.Load.BackgroundColor = fileDataItem.Options.VectorOptions.Options.BackgroundColor
               rasterCodecs.Options.Vector.Load.BitsPerPixel = fileDataItem.Options.VectorOptions.Options.BitsPerPixel
               rasterCodecs.Options.Vector.Load.ForceBackgroundColor = fileDataItem.Options.VectorOptions.Options.ForceBackgroundColor
               rasterCodecs.Options.Vector.Load.ViewHeight = fileDataItem.Options.VectorOptions.Options.ViewHeight
               rasterCodecs.Options.Vector.Load.ViewMode = fileDataItem.Options.VectorOptions.Options.ViewMode
               rasterCodecs.Options.Vector.Load.ViewWidth = fileDataItem.Options.VectorOptions.Options.ViewWidth
               Exit Select
         End Select

         rasterCodecs.Options.Load.Passes = fileDataItem.Passes
         rasterCodecs.Options.Load.Rotated = fileDataItem.LoadRotated
         rasterCodecs.Options.Load.Compressed = fileDataItem.LoadCompressed

         Dim loadedImage As RasterImage = rasterCodecs.Load(fileDataItem.Name, 0, CodecsLoadByteOrder.BgrOrGray, fileDataItem.PageNumber, fileDataItem.PageNumber)

         ' COPY THE 'loadedImage' IMAGE.

         loadedImage.Dispose()
      Next
   End If
End Sub

Public NotInheritable Class LEAD_VARS
   Public Const ImagesDir As String = "C:\LEADTOOLS22\Resources\Images"
End Class
Requirements

Target Platforms

Help Version 22.0.2021.8.20
Products | Support | Contact Us | Intellectual Property Notices
© 1991-2021 LEAD Technologies, Inc. All Rights Reserved.

Leadtools.WinForms.CommonDialogs.File Assembly
Products | Support | Contact Us | Intellectual Property Notices
© 1991-2021 LEAD Technologies, Inc. All Rights Reserved.
