LDicomAssociate::AddUserInfo

#include "ltdic.h"

L_INT LDicomAssociate::AddUserInfo(nType, pData, nLength)

Appends a User-defined item to the DICOM Associate.

Parameters

L_UCHAR nType

Type of the User-defined item.

L_UCHAR * pData

Buffer that contains the data for the User-defined item.

L_UINT16 nLength

Length of the User-defined item.

Returns

Value Meaning
0 SUCCESS
>0 An error occurred. Refer to Return Codes.

Comments

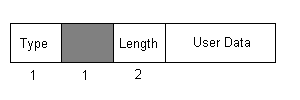

User-defined items may be included in the DICOM Associate to provide any other data the user finds necessary when establishing a DICOM Associate connection. The basic structure of the User-defined item is


where the Type, Length and User Data are all determined by the user. The values shown are the lengths, in bytes, of the elements of the User-defined item.

Required DLLs and Libraries

Platforms

Win32, x64
