LineRemoveCommand Class

Summary
Removes horizontal and vertical lines in a 1-bit black and white image.
Syntax
C#
Objective-C
C++/CLI
Java
Python
public class LineRemoveCommand : RasterCommand
@interface LTLineRemoveCommand : LTRasterCommand
public class LineRemoveCommand
    extends RasterCommand
public ref class LineRemoveCommand : public RasterCommand
class LineRemoveCommand(RasterCommand):
Remarks

This command is available in the Document/Medical Toolkits.

  • This command removes horizontal and vertical lines from scanned text documents. If the lines pass through text, the LineRemoveCommand properties/Constructor parameters can be configured to remove or preserve the text. The behavior of this command can be further modified by using an Event Handler that handles the LineRemoveCommandEventArgs.
  • This command works only on 1-bit black and white images.
  • If a region is selected, only the selected region will be changed by this command. If no region is selected, the whole image will be processed.
  • This command does not support signed data images.
  • This command does not support 32-bit grayscale images.

For more information, refer to Cleaning Up 1-Bit Images.

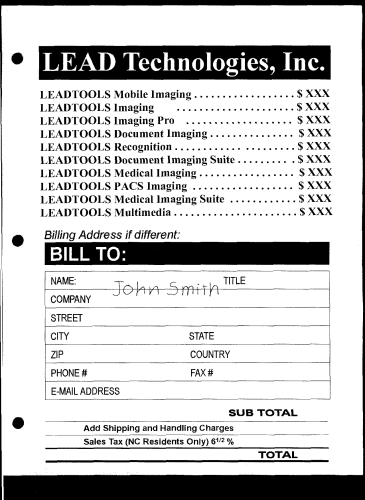

Line Remove Function - Before

Line Remove Function - Before

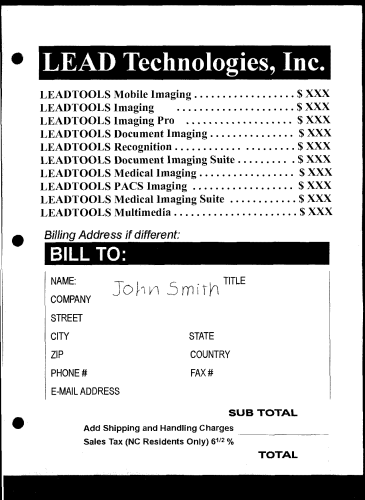

Line Remove Function - After

Line Remove Function - After

View additional platform support for this Line Remove function.

Example

Run the LineRemoveCommand on an image.

C#
Java
using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.Core;

public void LineRemoveCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "Clean.tif"));

   // Prepare the command
   LineRemoveCommand command = new LineRemoveCommand();
   command.LineRemove += new EventHandler<LineRemoveCommandEventArgs>(LineRemoveEvent_S1);
   command.Type = LineRemoveCommandType.Horizontal;
   command.Flags = LineRemoveCommandFlags.UseGap;
   command.GapLength = 2;
   command.MaximumLineWidth = 5;
   command.MinimumLineLength = 200;
   command.MaximumWallPercent = 10;
   command.Wall = 7;
   command.Run(image);

}

private void LineRemoveEvent_S1(object sender, LineRemoveCommandEventArgs e)
{
   MessageBox.Show("Row Col " + "( " + e.StartRow.ToString() + ", " + e.StartColumn + " )" +
      "\n Length " + e.Length.ToString());
   e.Status = RemoveStatus.Remove;
}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS23\Resources\Images";
}

import java.io.File;
import java.io.IOException;

import org.junit.*;
import org.junit.runner.JUnitCore;
import org.junit.runner.Result;
import org.junit.runner.notification.Failure;
import static org.junit.Assert.*;

import leadtools.*;
import leadtools.codecs.*;
import leadtools.imageprocessing.core.*;


public void lineRemoveCommandExample() {
   final String LEAD_VARS_IMAGES_DIR = "C:\\LEADTOOLS23\\Resources\\Images";

   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.setThrowExceptionsOnInvalidImages(true);

   RasterImage image = codecs.load(combine(LEAD_VARS_IMAGES_DIR, "Clean.tif"));

   // Prepare the command
   LineRemoveCommand command = new LineRemoveCommand();
   command.addLineRemoveCommandListener(lineRemoveEvent_S1);
   command.setType(LineRemoveCommandType.HORIZONTAL);
   command.setFlags(LineRemoveCommandFlags.USE_GAP.getValue());
   command.setGapLength(2);
   command.setMaximumLineWidth(5);
   command.setMinimumLineLength(200);
   command.setMaximumWallPercent(10);
   command.setWall(7);

   command.run(image);
   codecs.save(image, combine(LEAD_VARS_IMAGES_DIR, "Result.jpg"), RasterImageFormat.JPEG, 24);

   assertTrue(new File(combine(LEAD_VARS_IMAGES_DIR, "Result.jpg")).exists());
   System.out.println("Command run and image saved to " + combine(LEAD_VARS_IMAGES_DIR, "Result.jpg"));
}

LineRemoveCommandListener lineRemoveEvent_S1 = new LineRemoveCommandListener() {
   @Override
   public void onLineRemoveEvent(LineRemoveCommandEvent e) {
      System.out.println("Row Col " + "( " + e.getStartRow() + ", " + e.getStartColumn() + " )" +
            "\n Length " + e.getLength());
      e.setStatus(RemoveStatus.REMOVE);
   }
};
Requirements
