WatershedCommand Class

Summary
Separates the image into different segments using the Watershed algorithm.
Syntax
C#
Objective-C
C++/CLI
Java
Python
public class WatershedCommand : RasterCommand
@interface LTWatershedCommand : LTRasterCommand
public class WatershedCommand
    extends RasterCommand
public ref class WatershedCommand : public RasterCommand
class WatershedCommand(RasterCommand):
Remarks
  • Each segment's pixels has the same color. The Watershed algorithm treats an image as if it were a topographic surface. The dark areas are basins. The light areas are the ridges around the basins.
  • The user is responsible for determining the number of output segments and the location of each segment in the input array.
  • This command supports 8, 16-bit grayscale and colored images and 24, 32-bit colored images.
  • This command does not support 32-bit grayscale images.
  • This command supports signed/unsigned images.

Watershed Segmentation Function - Before

Watershed Segmentation Function - Before

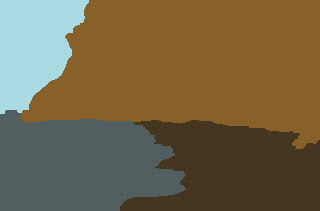

Watershed Segmentation Function - After

Watershed Segmentation Function - After

View additional platform support for this Watershed Segmentation function.

Example
C#
Java
using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.Core;

public void WatershedCommandExample()
{
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   //Load an image
   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "IMAGE3.dcm"));

   LeadPoint[][] pointsArray = new LeadPoint[4][];

   for (int idx = 0; idx < 4; idx++)
      pointsArray[idx] = new LeadPoint[2];

   // Set starting point and end point for each segment path.
   pointsArray[0][0] = new LeadPoint(35, 100);
   pointsArray[0][1] = new LeadPoint(35, 200);

   pointsArray[1][0] = new LeadPoint(180, 115);
   pointsArray[1][1] = new LeadPoint(300, 115);

   pointsArray[2][0] = new LeadPoint(235, 220);
   pointsArray[2][1] = new LeadPoint(260, 220);

   pointsArray[3][0] = new LeadPoint(180, 330);
   pointsArray[3][1] = new LeadPoint(350, 330);

   //Prepare the command
   WatershedCommand command = new WatershedCommand(pointsArray);

   //Apply
   command.Run(image);
}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS23\Resources\Images";
}

import java.io.File;
import java.io.IOException;
import java.util.ArrayList;

import org.junit.*;
import org.junit.runner.JUnitCore;
import org.junit.runner.Result;
import org.junit.runner.notification.Failure;
import static org.junit.Assert.assertTrue;

import leadtools.*;
import leadtools.codecs.*;
import leadtools.imageprocessing.core.*;


public void watershedCommandExample() {
   final String LEAD_VARS_IMAGES_DIR = "C:\\LEADTOOLS23\\Resources\\Images";

   RasterCodecs codecs = new RasterCodecs();
   codecs.setThrowExceptionsOnInvalidImages(true);

   // Load an image
   RasterImage image = codecs.load(combine(LEAD_VARS_IMAGES_DIR, "DICOM\\image3.dcm"));

   ArrayList<ArrayList<LeadPoint>> pointsArray = new ArrayList<ArrayList<LeadPoint>>();

   for (int idx = 0; idx < 4; idx++) {
      pointsArray.add(new ArrayList<LeadPoint>());
      for (int i = 0; i < 2; i++) {
         pointsArray.get(idx).add(new LeadPoint());
      }
   }

   // Set starting point and end point for each segment path.
   pointsArray.get(0).set(0, new LeadPoint(35, 100));
   pointsArray.get(0).set(1, new LeadPoint(35, 200));

   pointsArray.get(1).set(0, new LeadPoint(180, 115));
   pointsArray.get(1).set(1, new LeadPoint(300, 115));

   pointsArray.get(2).set(0, new LeadPoint(235, 220));
   pointsArray.get(2).set(1, new LeadPoint(260, 220));

   pointsArray.get(3).set(0, new LeadPoint(180, 330));
   pointsArray.get(3).set(1, new LeadPoint(350, 330));

   // Prepare the command
   WatershedCommand command = new WatershedCommand();
   command.setPointsArray(pointsArray);

   // Apply
   int change = command.run(image);
   assertTrue(change != RasterImageChangedFlags.NONE);

   codecs.save(image, combine(LEAD_VARS_IMAGES_DIR, "DICOM\\Result.dcm"), RasterImageFormat.DICOM_COLOR, 0);
   System.out.println("Command run and image saved to: " + combine(LEAD_VARS_IMAGES_DIR, "DICOM\\Result.dcm"));
}
Requirements
