LevelsetCommand Class

Summary

Performs semi-automatic segmentation (using the Levelset algorithm) by shrinking or expanding a contour represented by a region to the objects in the image.

Syntax

Objective-C

C++/CLI

Java

public class LevelsetCommand : RasterCommand

@interface LTLevelsetCommand : LTRasterCommand

public class LevelsetCommand
    extends RasterCommand

public ref class LevelsetCommand : public RasterCommand

Remarks

If the image has no region this command assumes a rectangular region that covers the image.
The Levelset algorithm finds the best-fitting contour that encapsulates the object.
This function supports 12 and 16-bit grayscale and 48 and 64-bit color images. Support for 12 and 16-bit grayscale and 48 and 64-bit color images is available in the Document/Medical Imaging toolkits.
This command supports signed/unsigned images.

Levelset Region Function - Before

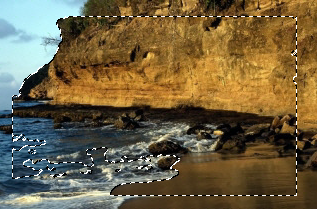

Levelset Region Function - After

View additional platform support for this Levelset Region function.

Example

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.Core;

public void LevelsetCommandExample()
{
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   //Load an image
   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "IMAGE3.dcm"));

   //Add a region to the image from which to start the level set function.
   LeadRect region = new LeadRect(200, 200, 100, 50);
   image.AddRectangleToRegion(null, region, RasterRegionCombineMode.Set);

   //Prepare the command
   LevelsetCommand command = new LevelsetCommand();

   command.LambdaIn = 1;
   command.LambdaOut = 1;

   //Apply
   command.Run(image);
}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS22\Resources\Images";
}
