LEAD Video EFX Maze Filter User Interface

The Video EFX Maze Filter distorts the video into a crystal maze. The property page is shown in the figure below:

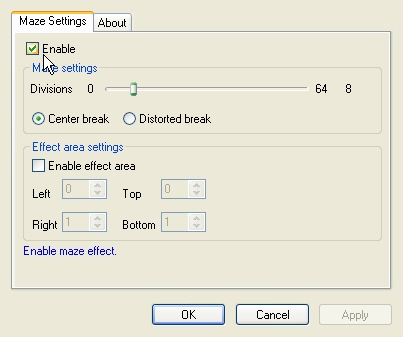

Video EFX Maze Filter property page

The Video EFX Maze Filter property page provides a user interface for changing the filter's attributes.

Changes will be applied directly to the streaming media with the ability to set them permanently by selecting Apply or OK, or to abandon changes by selecting Cancel. Positioning the mouse pointer over a control displays general information for that control. The following table shows the controls and their descriptions:

Control Description
Enable check box Enables/Disables the effect.
Divisions slider Number of fragments. Range: 0 to 64.
Center break radio button Indicates how each frame will be distorted. If selected, the reflection will be distorted around the center.
Distorted break radio button Indicates how each frame will be distorted. If selected, the reflection will be distorted diagonally.
Enable effect area check box Enables/Disables the effect for a cropped video area. Area limits are set using the Left, Top, Right and Bottom controls.
Left spin edit control Left boundary of the effect area.
Top spin edit control Top boundary of the effect area.
Right spin edit control Right boundary of the effect area.
Bottom spin edit control Bottom boundary of the effect area.
