AntiAliasingCommand Class

Summary
Applies an anti-aliasing filter to the specified image. This method is available in the Document/Medical Toolkits.
Syntax
C#
Objective-C
C++/CLI
Java
Python
public class AntiAliasingCommand : RasterCommand
@interface LTAntiAliasingCommand : LTRasterCommand
public class AntiAliasingCommand
    extends RasterCommand
public ref class AntiAliasingCommand : public RasterCommand
class AntiAliasingCommand(RasterCommand):
Remarks
  • The best results for anti-aliasing text can be obtained with the filter AntiAliasingCommandType.Type2.
  • The value of the Dimension property determines the extent of the anti-aliasing.
  • The threshold range for 16, 48 and 64-bit images is from 0 to 65535 and for 12-bit images the threshold range is from 0 to 4095. Otherwise, it is from 0 to 255. The threshold is applied on channels separately.
  • This command supports 12 and 16-bit grayscale and 48 and 64-bit color images. And can process the whole image or a region of the image. Support for 12 and 16-bit grayscale and 48 and 64-bit color images is available only in the Document/Medical toolkits.
  • This command does not support 32-bit grayscale images.

For more information, refer to Correcting Colors.

Anti Aliasing Function - Before

Anti Aliasing Function - Before

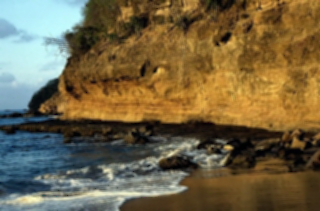

Anti Aliasing Function - After

Anti Aliasing Function - After

View additional platform support for this Anti Aliasing function.

Example

Run the AntiAliasingCommand on an image and does anti-aliasing on it.

C#
Java
using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.Effects;


public void AntiAliasingCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "Jagged.jpg"));

   // Prepare the command
   AntiAliasingCommand command = new AntiAliasingCommand();
   //do the anti-aliasing on the image.
   command.Threshold = 25;
   command.Dimension = 7;
   command.Filter = AntiAliasingCommandType.Type1;
   command.Run(image);
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS23\Resources\Images";
}

import java.io.File;
import java.io.IOException;

import org.junit.*;
import org.junit.runner.JUnitCore;
import org.junit.runner.Result;
import org.junit.runner.notification.Failure;
import static org.junit.Assert.*;

import leadtools.*;
import leadtools.codecs.*;
import leadtools.imageprocessing.effects.*;


public void antiAliasingCommandExample() {
    final String LEAD_VARS_IMAGES_DIR = "C:\\LEADTOOLS23\\Resources\\Images";

    // Load an image
    RasterCodecs codecs = new RasterCodecs();
    codecs.setThrowExceptionsOnInvalidImages(true);

    RasterImage image = codecs.load(combine(LEAD_VARS_IMAGES_DIR, "image1.jpg"));

    // Prepare the command
    AntiAliasingCommand command = new AntiAliasingCommand();

    // do the anti-aliasing on the image.
    command.setThreshold(25);
    command.setDimension(7);
    command.setFilter(AntiAliasingCommandType.TYPE1);
    int change = command.run(image);
    assertTrue(change != RasterImageChangedFlags.NONE);

    String outputFileName = combine(LEAD_VARS_IMAGES_DIR, "Result.jpg");
    codecs.save(image, outputFileName, RasterImageFormat.JPEG, 24);

    System.out.println("Command run and image saved to " + outputFileName);
}
Requirements

Target Platforms

Help Version 23.0.2024.3.3
