EdgeDetectorCommand Class

Summary
Applies the specified edge filter to an image. This command is available in the Document/Medical Toolkits.
Syntax
C#
Objective-C
C++/CLI
Java
Python
public class EdgeDetectorCommand : RasterCommand
@interface LTEdgeDetectorCommand : LTRasterCommand
public class EdgeDetectorCommand
    extends RasterCommand
public ref class EdgeDetectorCommand : public RasterCommand
class EdgeDetectorCommand(RasterCommand):
Remarks
  • Filters such as Sobel filter, Prewitt filter, Laplacian filter, and Gradient filter are used to determine the pixels belonging to edges in the image.
  • The threshold range for the 16, 48, and 64-bit images is from 0 to 65535 and for 12-bit images from 0 to 4095. Otherwise, it is from 0 to 255. The threshold is applied on channels separately.
  • This command supports 12 and 16-bit grayscale and 48 and 64-bit color images. Support for 12 and 16-bit grayscale and 48 and 64-bit color images is available only in the Document/Medical toolkits.
  • This command does not support 32-bit grayscale images.
  • This command supports signed/unsigned data images.

For more information, refer to Detecting and Enhancing Edges and Lines.

Edge Detector Function - Before

Edge Detector Function - Before

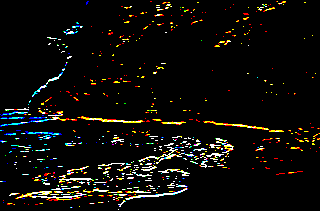

Edge Detector Function - After

Edge Detector Function - After

View additional platform support for this Edge Detector function.

Example

Run the EdgeDetectorCommand on an image.

C#
Java
using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.Effects;


public void EdgeDetectorCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "ImageProcessingDemo\\NaturalFruits.jpg"));

   // Prepare the command
   EdgeDetectorCommand command = new EdgeDetectorCommand();
   command.Threshold = 60;
   command.Filter = EdgeDetectorCommandType.SobelBoth;
   //find the edges of the image.
   command.Run(image);
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS23\Resources\Images";
}

import java.io.File;
import java.io.IOException;

import org.junit.*;
import org.junit.runner.JUnitCore;
import org.junit.runner.Result;
import org.junit.runner.notification.Failure;
import static org.junit.Assert.*;

import leadtools.*;
import leadtools.codecs.*;
import leadtools.imageprocessing.effects.*;


public void edgeDetectorCommandExample() {
   final String LEAD_VARS_IMAGES_DIR = "C:\\LEADTOOLS23\\Resources\\Images";

   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.setThrowExceptionsOnInvalidImages(true);

   RasterImage image = codecs.load(combine(LEAD_VARS_IMAGES_DIR, "NaturalFruits.jpg"));

   // Prepare the command
   EdgeDetectorCommand command = new EdgeDetectorCommand();
   command.setThreshold(60);
   command.setFilter(EdgeDetectorCommandType.SOBEL_BOTH);
   // find the edges of the image.
   int change = command.run(image);
   assertTrue(change != RasterImageChangedFlags.NONE);

   codecs.save(image, combine(LEAD_VARS_IMAGES_DIR, "Result.jpg"), RasterImageFormat.JPEG, 24);
   System.out.println("Command run and image saved to " + combine(LEAD_VARS_IMAGES_DIR, "Result.jpg"));
}
