#include "l_bitmap.h"

L_LTANN_API L_INT L_AnnRestrictCursor( hContainer, lpRect, pPoint, prcOldClip, bRestrictClient)

HANNOBJECT hContainer;

handle to the container object

LPRECT lpRect;

pointer to a RECT structure


pointer to a POINT structure

LPRECT prcOldClip;

pointer a RECT structure that contains the previous clip rectangle

L_BOOL bRestrictClient;

flag that specifies whether the cursor is restricted to the client window

Restricts the mouse cursor in conjunction with annotation objects.

Parameter Description
hContainer Handle to the container object
lpRect Pointer to a RECT structure that contains the rectangle within which the cursor is restricted .
pPoint Pointer to a POINT structure that contains the point around which the lpRect rectangle is centered.
prcOldClip Pointer to a RECT structure that contains the previous clip rectangle.
bRestrictClient Flag that specifies whether the cursor is restricted to the client window. Possible values are:
  Value Meaning
  TRUE Restrict the cursor to the client window.
  FALSE Do not restrict the cursor to the client window.



The function was successful.

< 1

An error occurred. Refer to Return Codes.


This function is used to restrict the mouse cursor. It should be used when creating custom annotation objects.

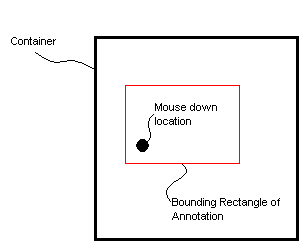

Calling this function always restricts the mouse cursor to the annotation container. However, depending on the arguments passed, the mouse cursor can be restricted further .

This function can be used in the following ways:


Required DLLs and Libraries


For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application.


Win32, x64.

See Also


L_AnnDefine, L_AnnAddUserHandle, L_AnnAdjustPoint, L_AnnChangeUserHandle, L_AnnConvert, L_AnnDefine2, L_AnnDeleteUserHandle, L_AnnEnumerateHandles, L_AnnGetRestrictToContainer, L_AnnGetRotateAngle, L_AnnGetUserHandle, L_AnnGetUserHandles, L_AnnRestrictCursor, L_AnnSetRestrictToContainer, L_AnnSetAutoSnapCursor, L_AnnGetAutoSnapCursor


Annotation Functions: Creating and Deleting Annotations


Implementing Custom Annotations


Implementing Annotations


Implementing an Automated Annotation Program


Implementing a Non-automated Annotation Program


Example for L_AnnConvert, L_AnnRestrictCursor This example restricts the cursor to 10 pixels on either side of the bounding box of the annotation object. For example, if the object is a rectangle, the mouse cursor will be restricted to an area that is 10 pixels larger than the rectangle.

L_INT AnnRestrictCursorExample(HANNOBJECT hObject)
   L_INT nRet;
   L_UINT      uType;
   ANNRECT     arcBounds;
   RECT        rcBounds;
   HANNOBJECT  hContainer;
   RECT        rcClipOld;
   nRet = L_AnnGetType(hObject, &uType);
   if(nRet != SUCCESS)
      return nRet;
      nRet = L_AnnGetTopContainer(hObject, &hContainer);
      if(nRet != SUCCESS)
         return nRet;
      nRet = L_AnnGetRect(hObject, &arcBounds, NULL);
      if(nRet != SUCCESS)
         return nRet;
      nRet = L_AnnConvert(hObject, (LPPOINT)&rcBounds, (pANNPOINT)&arcBounds, 2, ANNCONVERT_TO_CLIENT);
      if(nRet != SUCCESS)
         return nRet;
      rcBounds.left -= 10;
      rcBounds.top -= 10;
      rcBounds.right += 10;
      rcBounds.bottom += 10;
      nRet = L_AnnRestrictCursor(hContainer, &rcBounds, NULL, &rcClipOld, FALSE);
      if(nRet != SUCCESS)
         return nRet;
      // When done with restricting cursor, call the line below
      // ClipCursor(&rcClipOld);
   return SUCCESS;
