L_OceanBitmap

#include "l_bitmap.h"

L_INT EXT_FUNCTION L_OceanBitmap(pBitmap, uAmplitude, uFrequency, bLowerTrnsp)

pBITMAPHANDLE pBitmap;

/* pointer to the bitmap handle */

L_UINT uAmplitude;

/* wave’s magnitude */

L_UINT uFrequency;

/* number of repeated waves */

L_BOOL bLowerTrnsp;

/* flag */

Reflects the bitmap on an ocean surface. This function is available in the Raster Pro and above toolkits.

Parameter

Description

pBitmap

Pointer to the bitmap handle that references the bitmap to reflect.

uAmplitude

Wave magnitude, in pixels.

uFrequency

Number of repeated waves.

bLowerTrnsp

Flag that indicates the transparency direction. Possible values are:



Value

Meaning



TRUE

Transparency increases as you move from the bottom of the bitmap to the top of the bitmap, line by line.



FALSE

Transparency increases as you move from the top of the bitmap to the bottom of the bitmap, line by line.

Returns

SUCCESS

The function was successful.

< 1

An error occurred. Refer to Return Codes.

Comments

If the bitmap has a region, the effect will be applied on the region only.

This function supports 12 and 16-bit grayscale and 48 and 64-bit color images. Support for 12 and 16-bit grayscale and 48 and 64-bit color images is available only in the Document/Medical toolkits.

To update a status bar or detect a user interrupt during execution of this function, refer to L_SetStatusCallback.

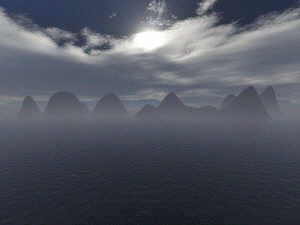

For an example, see the following figure:

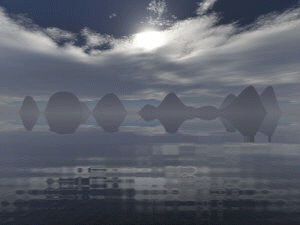

The following figure shows the same bitmap, after the effect has been applied:




To obtain this effect, the following settings were used with the function:

uAmplitude=15
uFrequency=20
bLowerTrnsp=TRUE

This function does not support signed data images. It returns the error code ERROR_SIGNED_DATA_NOT_SUPPORTED if a signed data image is passed to this function.

Required DLLs and Libraries

LTIMG

For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application.

Platforms

Windows 95 / 98 / Me, Windows 2000 / XP.

See Also

Functions:

L_AddBitmapNoise, L_EmbossBitmap, L_MosaicBitmap, L_MotionBlurBitmap, L_OilifyBitmap, L_PosterizeBitmap, L_RemoveRedeyeBitmap, L_SolarizeBitmap, L_UnderlayBitmap, L_BumpMapBitmap, L_CubismBitmap, L_DrawStarBitmap, L_FreePlaneBendBitmap, L_FreeRadBendBitmap, L_DryBitmap, L_GlowFilterBitmap, L_GlassEffectBitmap, L_LensFlareBitmap, L_LightBitmap, L_PlaneBendBitmap, L_PlaneBitmap, L_SampleTargetBitmap, L_TunnelBitmap, L_BendingBitmap, L_CylindricalBitmap, L_FreeHandShearBitmap, L_FreeHandWaveBitmap, L_ImpressionistBitmap, L_PixelateBitmap, L_PolarBitmap, L_PunchBitmap, L_RadialBlurBitmap, L_RadWaveBitmap, L_RippleBitmap, L_SpherizeBitmap, L_SwirlBitmap, L_WaveBitmap, L_WindBitmap, L_ZoomBlurBitmap, L_ZoomWaveBitmap, L_BricksTextureBitmap, L_CanvasBitmap, L_CloudsBitmap, L_ColoredBallsBitmap, L_DiffuseGlowBitmap, L_DisplaceMapBitmap, L_FragmentBitmap, L_HalfTonePatternBitmap, L_MaskConvolutionBitmap, L_MosaicTilesBitmap, L_OffsetBitmap, L_PerspectiveBitmap, L_PlasmaFilterBitmap, L_PointillistBitmap, L_RomanMosaicBitmap, L_VignetteBitmap, L_ZigZagBitmap, L_AdjustBitmapTint, L_ColorHalfToneBitmap

Topics:

Raster Image Functions: Artistic Effects



Applying Artistic Effects



Raster Image Functions: Correcting Colors

Example

BITMAPHANDLE LeadBitmap;   /* Bitmap handle for the image */

/* Load a bitmap at its own bits per pixel  */

L_LoadBitmap
(TEXT("IMAGE3.CMP"), &LeadBitmap, sizeof(BITMAPHANDLE), 0, ORDER_BGR, NULL, NULL);
L_OceanBitmap
(&LeadBitmap, 20,6,TRUE);
