Configuring the LEADTOOLS Storage Server Application using the Control Panel: Gateway

User Interface

Control Name Description Image
Gateway button Use the Gateway Button to configure multiple LEADTOOLS Storage Servers from different locations into one query source.
Storage Server Gateway Button
Control Name
Gateway Dialog Simplifies the client communication, allowing the client to send, query and receive requests to and from the gateway and have it relay the requests to other servers. Clicking the Gateway button on the Control Panel of the LEADTOOLS Storage Server main window opens the Server Settings dialog with the Gateway branch selected in the tree view.

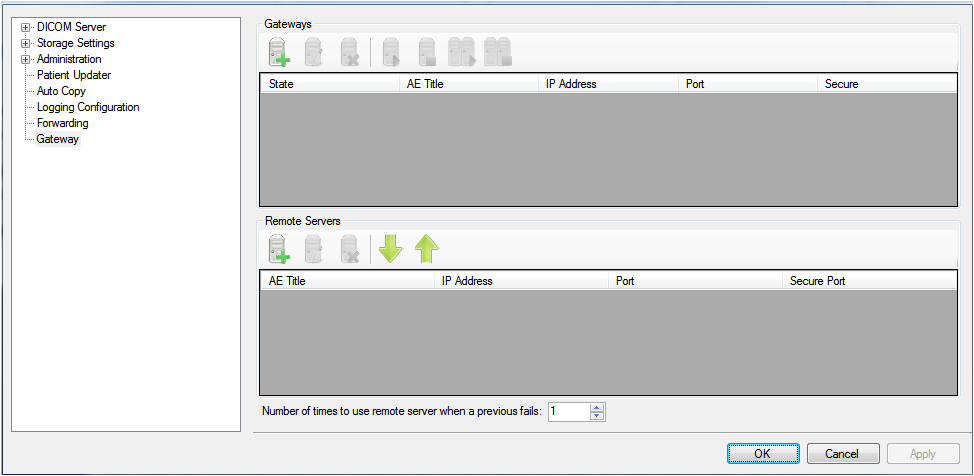

Storage Server Gateway Dialog

Gateways group

Control Name Description Image
Create Gateway button Click to create and configure the Gateway AE and IP address for a Gateway Storage Server.
Storage Server Gateway Create Gateway Button
Modify Gateway button Click to modify the AE and IP address configuration of a Gateway Storage Server.
Storage Server Gateway Modify Gateway Button
Remove Gateway button Click to remove the configuration of a Gateway Storage Server.
Storage Server Gateway Remove Gateway Button
Start button Click to start the selected Gateway Storage Server.
Storage Server Gateway Start Gateway Button
Stop button Click to stop the selected Gateway Storage Server.
Storage Server Gateway Stop Gateway Button
Start All button Click to start all of the configured Gateway Storage Servers.
Storage Server Gateway Start All Button
Stop All button Click to stop all of the configured Gateway Storage Servers.
Storage Server Gateway Stop All Button

Remote Servers group

Control Name Description Image
Add Server button Adds a Remote Server that the Gateway can query.
Storage Server Gateway Add Server Button
Modify Server button Modify the selected Remote Server.
Storage Server Gateway Modify Server Button
Delete Server button Remove the Remote Server from the list available for the Gateway to query.
Storage Server Gateway Delete Server Button
Move Server Down button Move the Remote Server down in the priority for the Gateway.
Storage Server Gateway Move Server Down Button
Move Server Up button Move the Remote Server up in the priority for the Gateway.
Storage Server Gateway Move Server Up Button
Remote Servers Spinner Box Sets the number of times the Gateway will attempt to query the Remote Server before moving to the next Remote Server in the list.

Gateway Configuration for Storage Server 2.0

Perform the following steps in order to configure a gateway for Storage Server 2.0:

The Gateway tab is shown in the following figure:

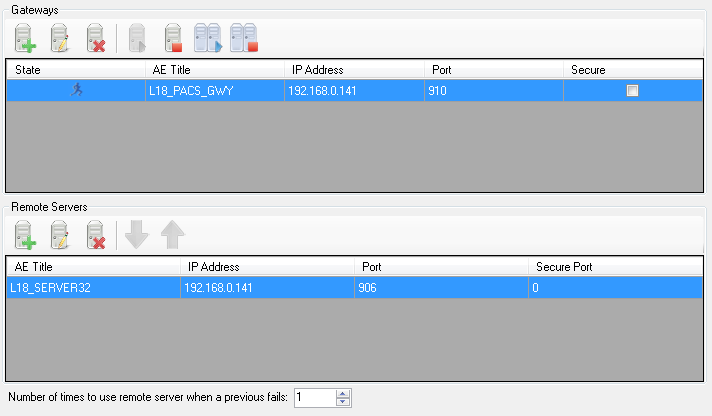

Gateway for Storage Server 2.0
  1. Set up the Gateway name by clicking the Add Gateway Server button (highlighted in yellow in the following figure):

    Add Gateway

    The following dialog appears:

    Create Gateway Server Dialog for Storage Server 2.0
    • AETitle

      Gateway Title, generally the server name with "GW" appended.

    • Address

      IPv4 address of the gateway server.

    • Port

      Gateway port-- this should be different from the server port.

  2. Next, set up the remote server information (the server the gateway will be querying). To do so, click the Add Remote Server Button (highlighted in the following figure).

    Add Remote Server

    The following dialog appears:

    Add Remote Server Dialog for Storage Server 2.0
    • AETitle

      Remote Server Title.

    • Address

      IPv4 address of the remote server.

    • Port

      Port of the remote server.

    Now that the gateway is configured, add in the AE titles on both the gateway server and the remote server to facilitate image transfers.

  3. Gateway Server

    On the gateway server, enter the remote server's AE title. When connecting to a server created with the PACS Config demo the remote server will already be in the list, as shown in the following figure:

    Gateway Server for Storage Server 2.0
    • AETitle

      Remote Server AE Title.

    • Port

      Port of the remote server.

  4. Remote Server

    On the remote server, enter the AE title for the gateway into the remote server's AE title list, as shown in the following figure:

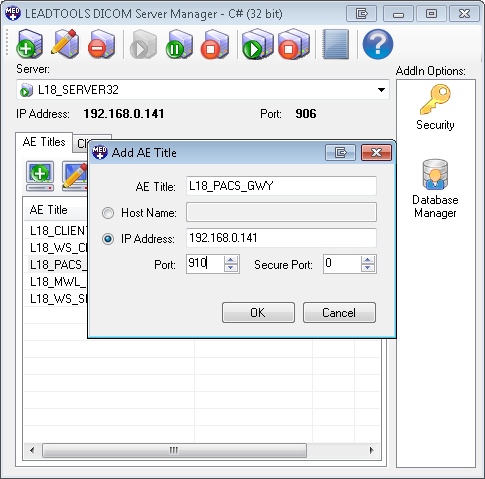

    Add AE Title Dialog for Storage Server 2.0
