tension Property

Summary

Gets or sets a value that specifies the amount that this AnnCurveObject curve bends between control points.

Syntax
TypeScript
JavaScript
Object.defineProperty(AnnCurveObject.prototype, 'tension',
	get: function(),
	set: function(value)
)
tension: number;

Property Value

A value that specifies the amount that this AnnCurveObject curve bends between control points.

Remarks

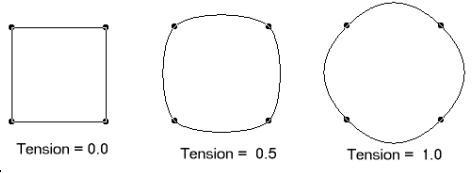

Valid values are between 0.0 and 1.0, where 0.0 indicates straight lines, and 1.0 indicates lines with the highest curvature. A typical value is 0.5. These values for Tension for a Closed Curve object are shown in the following bitmap:

tension
Requirements
Target Platforms
Help Version 21.0.2021.6.30
