LensFlareCommandBitmapEffect Class
See Also  Members   Example
Leadtools.Windows.Media.Effects.SpecialEffects Namespace : LensFlareCommandBitmapEffect Class





Simulates the secondary reflections caused when bright lights are facing the camera lens. The lens flare is refracted into a series of lightened circles that surround the flare.

Syntax

Visual Basic (Declaration)
Public Class LensFlareCommandBitmapEffect
   Inherits RasterCommandBitmapEffect
Visual Basic (Usage)Copy Code
Dim instance As LensFlareCommandBitmapEffect
C#
public class LensFlareCommandBitmapEffect : RasterCommandBitmapEffect
C++/CLI
public ref class LensFlareCommandBitmapEffect : public RasterCommandBitmapEffect
XAML Property Element Usage

LensFlareCommandBitmapEffect ...

XAML Property Element Usage

LensFlareCommandBitmapEffect ...

Example

Run the LensFlareCommandBitmapEffect on an image.

Visual BasicCopy Code
Public Sub LensFlareCommandBitmapEffectExample(ByVal element As FrameworkElement)
   ' Initialize Effect
   Dim effect As LensFlareCommandBitmapEffect = New LensFlareCommandBitmapEffect()
   effect.Brightness = 100
   effect.Type = LensFlareCommandBitmapEffectsType.Type1
   effect.Color = System.Windows.Media.Color.FromRgb(100, 150, 10)
   effect.CenterPoint = New System.Windows.Point(CInt(element.ActualWidth) / 4, CInt(element.ActualHeight) / 4)
   element.BitmapEffect = effect

   ' Initialize Animations
   Dim animation1 As PointAnimation = New PointAnimation()
   animation1.From = New System.Windows.Point(50, 50)
   animation1.To = New System.Windows.Point(100, 100)
   animation1.By = New System.Windows.Point(1, 1)
   animation1.Duration = New Duration(TimeSpan.FromSeconds(2.0))
   animation1.AutoReverse = True
   animation1.RepeatBehavior = RepeatBehavior.Forever

   ' Initialize and run Storyboard
   Dim storyboard As Storyboard = New Storyboard()
   storyboard.SetTargetName(animation1, "AnimatedBitmapEffect")
   storyboard.SetTargetProperty(animation1, New PropertyPath(LensFlareCommandBitmapEffect.CenterPointProperty))
   element.RegisterName("AnimatedBitmapEffect", effect)
   storyboard.Children.Add(animation1)

   storyboard.Begin(element)
End Sub
C#Copy Code
public void LensFlareCommandBitmapEffectExample(FrameworkElement element)

   // Initialize Effect
   LensFlareCommandBitmapEffect effect = new LensFlareCommandBitmapEffect();
   effect.Brightness = 100;
   effect.Type = LensFlareCommandBitmapEffectsType.Type1;
   effect.Color = System.Windows.Media.Color.FromRgb(100, 150, 10);
   effect.CenterPoint = new System.Windows.Point((int)element.ActualWidth / 4, (int)element.ActualHeight / 4);
   element.BitmapEffect = effect;

   // Initialize Animations
   PointAnimation animation1 = new PointAnimation();
   animation1.From = new Point(50, 50);
   animation1.To = new Point(100, 100);
   animation1.By = new Point(1, 1);
   animation1.Duration = new Duration(TimeSpan.FromSeconds(2.0));
   animation1.AutoReverse = true;
   animation1.RepeatBehavior = RepeatBehavior.Forever;

   // Initialize and run Storyboard
   Storyboard storyboard = new Storyboard();
   Storyboard.SetTargetName(animation1, "AnimatedBitmapEffect");
   Storyboard.SetTargetProperty(animation1, new PropertyPath(LensFlareCommandBitmapEffect.CenterPointProperty));
   element.RegisterName("AnimatedBitmapEffect", effect);
   storyboard.Children.Add(animation1);

   storyboard.Begin(element);
}
XAMLCopy Code
<Page Title="CSAnimateEffect" Height="391" Width="300" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:lteffects="clr-namespace:Leadtools.Windows.Media.Effects.SpecialEffects;assembly=Leadtools.Windows.Media.Effects">
  <Grid>
    <Image Margin="10,10,10,10" HorizontalAlignment="Center" VerticalAlignment="Center" Source="C:\Program Files\LEAD Technologies, Inc\LEADTOOLS 16\Images\slave.jpg">
      <Image.BitmapEffect>
        <lteffects:LensFlareCommandBitmapEffect x:Name="MyBitmapEffect" Brightness="100" CenterPoint="50.0,50.0" />
      </Image.BitmapEffect>
      <Image.Triggers>
        <EventTrigger RoutedEvent="Image.Loaded">
          <BeginStoryboard>
            <Storyboard>
              <PointAnimation Storyboard.TargetName="MyBitmapEffect" Storyboard.TargetProperty="CenterPoint" From="50.0,50.0" To="100.0,100.0" Duration="0:0:2" RepeatBehavior="Forever" AutoReverse="True" />
            </Storyboard>
          </BeginStoryboard>
        </EventTrigger>
      </Image.Triggers>
    </Image>
  </Grid>
</Page>

Remarks

  • Secondary reflections are caused when bright lights are facing the camera lens. These reflections can show up as spots or banding. The command adds this effect to the image by controlling their number, position, brightness and size of the spots or banding. Each lens type has its own spot distribution and ray thickness.
  • This command does not support signed data images.

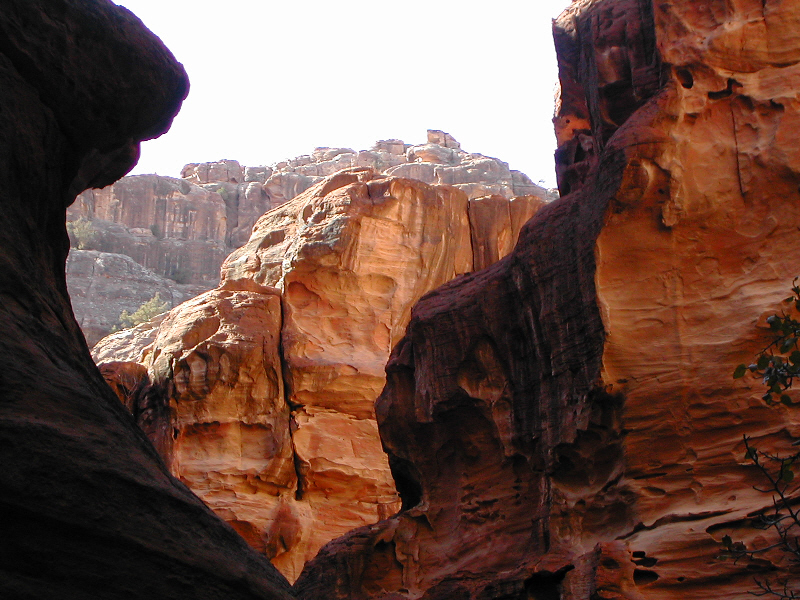

  • For an example, see the following figure:

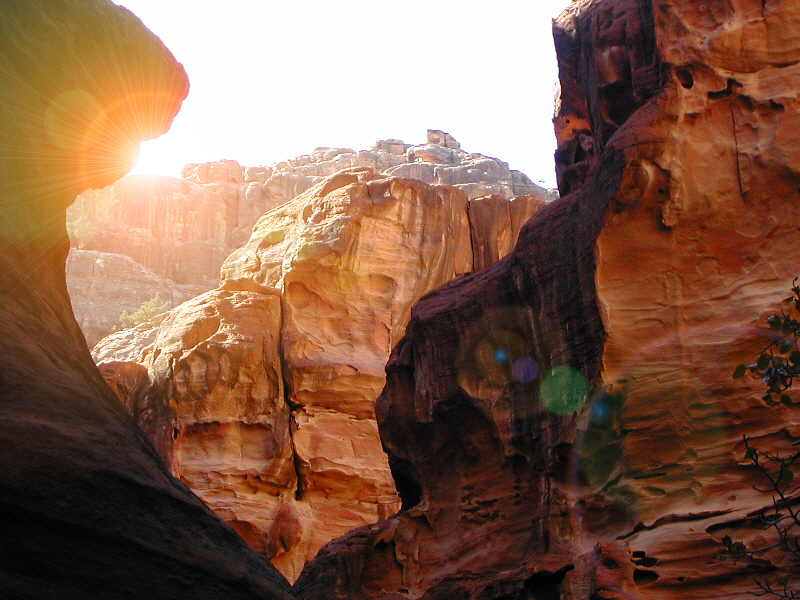

  • The following figure shows the same image, after the effect has been applied:

  • This command does not support 32-bit grayscale images.

Inheritance Hierarchy

System.Object
   System.Windows.Threading.DispatcherObject
      System.Windows.DependencyObject
         System.Windows.Freezable
            System.Windows.Media.Animation.Animatable
               System.Windows.Media.Effects.BitmapEffect
                  Leadtools.Windows.Media.Effects.RasterCommandBitmapEffect
                     Leadtools.Windows.Media.Effects.SpecialEffects.LensFlareCommandBitmapEffect

Requirements

Target Platforms: Microsoft .NET Framework 3.0, Windows XP, Windows Vista, Windows Server 2003 family, Windows Server 2008 family
