MedicalViewerFusion Class

Summary

A class that contains the fused image along with properties that handle the fusion process.

Syntax

C#
VB
C++
public class MedicalViewerFusion

Public Class MedicalViewerFusion

            public ref class MedicalViewerFusion


Remarks
  • This class is used with the MedicalViewerSubCell.Fusion property.
  • Fusion is a process used to display multiple, overlapped images at the same time, each having a degree of transparency. Fusion can be used to blend many different modalities such as CT/MR, CT/MR/PET, CT/NM, CT/US, CT/PET...etc.
  • For example, soft tissue information from a PET scan can be combined with a CT scan, creating an anatomical context for the soft tissue information. As a result, diagnosis and treatment of ailments are improved. For more information, refer to MedicalViewerFusion.
Head and Neck CT/PET Data Set

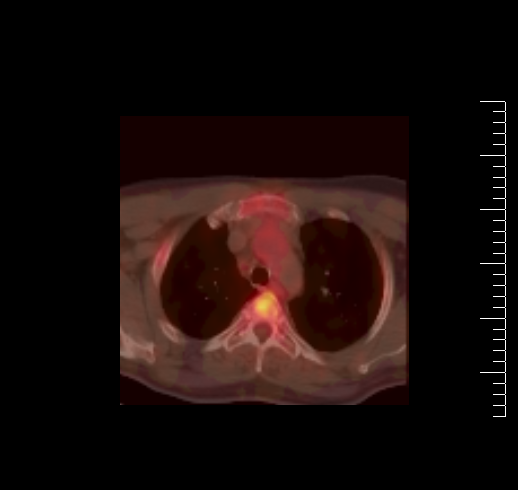

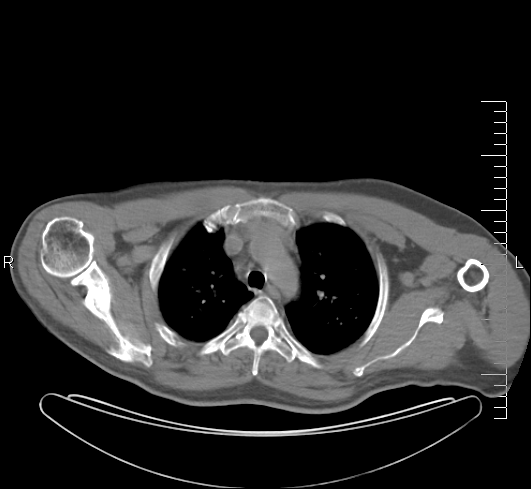

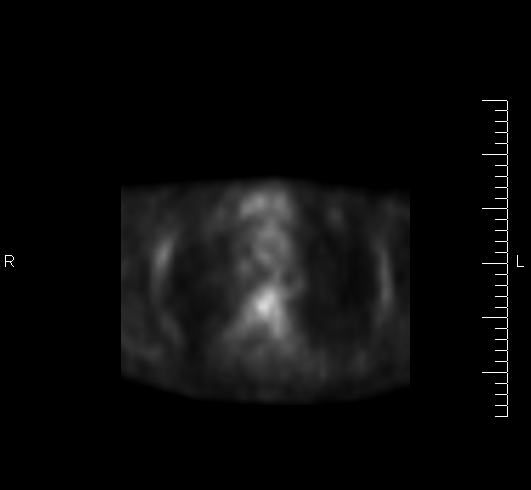

1. CT Scan Image 2. PET Image 3. CT/PET Fused Image
Example

C#
VB
using Leadtools;
using Leadtools.Dicom;
using Leadtools.Medical3D;
using Leadtools.Codecs;
using Leadtools.MedicalViewer;
using Leadtools.ImageProcessing;
using Leadtools.ImageProcessing.Core;
using Leadtools.ImageProcessing.Color;
using Leadtools.Annotations.Core;
using Leadtools.Annotations.Designers;

class MedicalViewerFusionForm : Form
{
    private MedicalViewer _medicalViewer;

    void MedicalViewerLocalizer_SizeChanged(object sender, EventArgs e)
    {
        _medicalViewer.Size = new Size(this.ClientRectangle.Right, this.ClientRectangle.Bottom);
    }

    public MedicalViewerFusionForm()
    {
        DicomEngine.Startup();
        RasterCodecs _codecs = new RasterCodecs();

        this.SizeChanged += new EventHandler(MedicalViewerLocalizer_SizeChanged);

        // Create the medical viewer and adjust the size and the location.
        _medicalViewer = new MedicalViewer(1, 2);
        _medicalViewer.Location = new Point(0, 0);
        _medicalViewer.Size = new Size(this.ClientRectangle.Right, this.ClientRectangle.Bottom);

        // Load an image and then add it to the control.
        RasterImage _image = _codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "xa.dcm"));
        MedicalViewerMultiCell cell = new MedicalViewerMultiCell(_image, true, 1, 1);

        cell.FitImageToCell = false;

        // add some action that will be used to change the properties of the images inside the control.
        cell.AddAction(MedicalViewerActionType.Scale);
        cell.AddAction(MedicalViewerActionType.Offset);
        cell.AddAction(MedicalViewerActionType.WindowLevel);
        cell.AddAction(MedicalViewerActionType.Stack);

        // assign the added actions to a mouse button, meaning that when the user click and drag the mouse button, the associated action will be activated.
        cell.SetAction(MedicalViewerActionType.Scale, MedicalViewerMouseButtons.Middle, MedicalViewerActionFlags.Active);
        cell.SetAction(MedicalViewerActionType.Offset, MedicalViewerMouseButtons.Right, MedicalViewerActionFlags.Active);
        cell.SetAction(MedicalViewerActionType.WindowLevel, MedicalViewerMouseButtons.Left, MedicalViewerActionFlags.Active);
        cell.SetAction(MedicalViewerActionType.Stack, MedicalViewerMouseButtons.Wheel, MedicalViewerActionFlags.Active);

        // Creates a new fusion object, this object will hold the image (image3.dcm) that will be fused with the original image (xa.dcm).
        MedicalViewerFusion fusion = new MedicalViewerFusion();

        // the fused image.
        fusion.FusedImage = _codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "image3.dcm"));
        // the fusion scale.
        fusion.FusionScale = 0.5f;
        // the color palette that will be used in the fusion process.
        fusion.ColorPalette = MedicalViewerPaletteType.Cool;

        // start the fusion.
        cell.SubCells[0].Fusion.Add(fusion);


        _medicalViewer.Cells.Add(cell);
        // adjust some properties to the cell and add some tags.
        _medicalViewer.Cells[0].SetTag(2, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.UserData, "EX. ID 230-36-5448");
        _medicalViewer.Cells[0].SetTag(4, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.Frame);
        _medicalViewer.Cells[0].SetTag(6, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.Scale);
        _medicalViewer.Cells[0].SetTag(2, MedicalViewerTagAlignment.BottomLeft, MedicalViewerTagType.WindowLevelData);
        _medicalViewer.Cells[0].SetTag(1, MedicalViewerTagAlignment.BottomLeft, MedicalViewerTagType.FieldOfView);

        cell.ScaleType = MedicalViewerScaleType.Dynamic;

        Controls.Add(_medicalViewer);
        _medicalViewer.Dock = DockStyle.Fill;
        DicomEngine.Shutdown();
    }

    void MedicalViewerLocalizer_FormClosing(object sender, FormClosingEventArgs e)
    {
    }


    public MedicalViewer Viewer
    {
        get { return _medicalViewer; }
    }
}

MedicalViewerFusionForm GetMedicalViewerFusionForm()
{
    return new MedicalViewerFusionForm();
}

// This examples fuses the xa.dcm image with the image3.dcm image, and uses the preset palette (Cool) to do the fusion process.
public void MedicalViewerFusionExample()
{
    MedicalViewerFusionForm myForm = GetMedicalViewerFusionForm();
    MedicalViewer medicalViewer = myForm.Viewer;

    myForm.ShowDialog();
}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\Users\Public\Documents\LEADTOOLS Images";
}
Imports Leadtools
Imports Leadtools.Dicom
Imports Leadtools.Medical3D
Imports Leadtools.Codecs
Imports Leadtools.MedicalViewer
Imports Leadtools.Annotations.Core
Imports Leadtools.Annotations.Designers
Imports Leadtools.ImageProcessing.Core

Private Class MedicalViewerFusionForm : Inherits Form
   Private _medicalViewer As MedicalViewer

   Private Sub MedicalViewer_SizeChanged(ByVal sender As Object, ByVal e As EventArgs)
      _medicalViewer.Size = New Size(Me.ClientRectangle.Right, Me.ClientRectangle.Bottom)
   End Sub

   Public Sub New()
      DicomEngine.Startup()
      Dim _codecs As RasterCodecs = New RasterCodecs()

      AddHandler SizeChanged, AddressOf MedicalViewer_SizeChanged

      ' Create the medical viewer and adjust the size and the location.
      _medicalViewer = New MedicalViewer(1, 2)
      _medicalViewer.Location = New Point(0, 0)
      _medicalViewer.Size = New Size(Me.ClientRectangle.Right, Me.ClientRectangle.Bottom)

      ' Load an image and then add it to the control.
      Dim _image As RasterImage = _codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "xa.dcm"))
      Dim cell As MedicalViewerMultiCell = New MedicalViewerMultiCell(_image, True, 1, 1)

      cell.FitImageToCell = False

      ' add some action that will be used to change the properties of the images inside the control.
      cell.AddAction(MedicalViewerActionType.Scale)
      cell.AddAction(MedicalViewerActionType.Offset)
      cell.AddAction(MedicalViewerActionType.WindowLevel)
      cell.AddAction(MedicalViewerActionType.Stack)

      ' assign the added actions to a mouse button, meaning that when the user click and drag the mouse button, the associated action will be activated.
      cell.SetAction(MedicalViewerActionType.Scale, MedicalViewerMouseButtons.Middle, MedicalViewerActionFlags.Active)
      cell.SetAction(MedicalViewerActionType.Offset, MedicalViewerMouseButtons.Right, MedicalViewerActionFlags.Active)
      cell.SetAction(MedicalViewerActionType.WindowLevel, MedicalViewerMouseButtons.Left, MedicalViewerActionFlags.Active)
      cell.SetAction(MedicalViewerActionType.Stack, MedicalViewerMouseButtons.Wheel, MedicalViewerActionFlags.Active)

      ' Creates a new fusion object, this object will hold the image (image3.dcm) that will be fused with the original image (xa.dcm).
      Dim fusion As MedicalViewerFusion = New MedicalViewerFusion()

      ' the fused image.
      fusion.FusedImage = _codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "image3.dcm"))

      ' the fusion scale.
      fusion.FusionScale = 0.5F

      ' the color palette that will be used in the fusion process.
      fusion.ColorPalette = MedicalViewerPaletteType.Cool

      ' start the fusion.
      cell.SubCells(0).Fusion.Add(fusion)


      _medicalViewer.Cells.Add(cell)
      ' adjust some properties to the cell and add some tags.
      _medicalViewer.Cells(0).SetTag(2, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.UserData, "EX. ID 230-36-5448")
      _medicalViewer.Cells(0).SetTag(4, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.Frame)
      _medicalViewer.Cells(0).SetTag(6, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.Scale)
      _medicalViewer.Cells(0).SetTag(2, MedicalViewerTagAlignment.BottomLeft, MedicalViewerTagType.WindowLevelData)
      _medicalViewer.Cells(0).SetTag(1, MedicalViewerTagAlignment.BottomLeft, MedicalViewerTagType.FieldOfView)

      cell.ScaleType = MedicalViewerScaleType.Dynamic

      Controls.Add(_medicalViewer)
      _medicalViewer.Dock = DockStyle.Fill
      DicomEngine.Shutdown()
   End Sub

   Private Sub MedicalViewerLocalizer_FormClosing(ByVal sender As Object, ByVal e As FormClosingEventArgs)
   End Sub


   Public ReadOnly Property Viewer() As MedicalViewer
      Get
         Return _medicalViewer
      End Get
   End Property
End Class

Private Function GetMedicalViewerFusionForm() As MedicalViewerFusionForm
   Return New MedicalViewerFusionForm()
End Function

' This examples fuses the xa.dcm image with the image3.dcm image, and uses the preset palette (Cool) to do the fusion process.
<TestMethod()> _
Public Sub MedicalViewerFusionExample()
   Dim myForm As MedicalViewerFusionForm = GetMedicalViewerFusionForm()
   Dim medicalViewer As MedicalViewer = myForm.Viewer

   myForm.ShowDialog()
End Sub

Public NotInheritable Class LEAD_VARS
   Public Const ImagesDir As String = "C:\Users\Public\Documents\LEADTOOLS Images"
End Class
