RasterImageUnderlayFlags Enumeration

Summary

Indicators of how the underlying image is to be positioned.

Syntax

Java

Objective-C

WinRT C#

C++

[FlagsAttribute()]
public enum RasterImageUnderlayFlags

<FlagsAttribute()>
Public Enum RasterImageUnderlayFlags

[FlagsAttribute()]
public enum RasterImageUnderlayFlags

typedef NS_OPTIONS(NSUInteger, LTRasterImageUnderlayFlags)

public enum RasterImageUnderlayFlags

Leadtools.RasterImageUnderlayFlags = function() { };
Leadtools.RasterImageUnderlayFlags.prototype = {<br/>
  None = 0x00000000,
    Stretch = 0x00000001,

 };

[FlagsAttribute()]
public enum class RasterImageUnderlayFlags

Members

Value	Member	Description
0x00000000	None	Tile the underlay. This repeats the underlying image, so that it fills the target image. This function does not do any resizing; you are responsible for the size of the tiles
0x00000001	Stretch	Stretch the underlay to fit the dimensions of the target image

Remarks

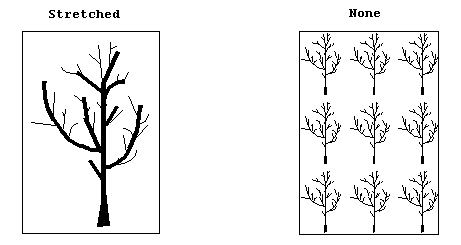

The underlying image can either be stretched or tiled to fill the target image, as shown in the following illustration:
