LeadFillMode Enumeration

Summary

Specifies how a polygonal shape with crossing lines is filled.

Syntax

C#
VB
Java
WinRT C#
C++
public enum LeadFillMode
Public Enum LeadFillMode


public enum LeadFillMode
public enum LeadFillMode
Leadtools.LeadFillMode = function() { };
Leadtools.LeadFillMode.prototype = {<br/>
  Alternate = 0,
    Winding = 1,

 };
public enum class LeadFillMode

Members

ValueMemberDescription
0AlternateThe filled area includes the area between odd-numbered and even-numbered polygon sides on each scan line.
1WindingAll pixels that are inside the resulting exterior lines are filled.
Remarks

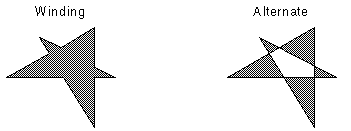

The following figure describes how fill mode is used:

Example

For an example, refer to AddPolygonToRegion.

Requirements

Target Platforms

See Also

Reference

Leadtools Namespace
