ZigZagCommand Class

Summary
Radially distorts the image by creating waves that twist the image around a specified center. This command is available in the Imaging Pro and above toolkits.
Syntax
C#
VB
C++
public class ZigZagCommand : RasterCommand

Public Class ZigZagCommand
   Inherits RasterCommand
public ref class ZigZagCommand : public RasterCommand
Remarks
  • As an example, if you use the following image:

    And you were to call ZigZagCommand using the following settings:

    Parameter Value
    Amplitude 47
    Attenuation 92
    Frequency 13
    Phase -162
    CenterPoint (192, 82)
    FillColor Black
    Flags Color | RadialWave

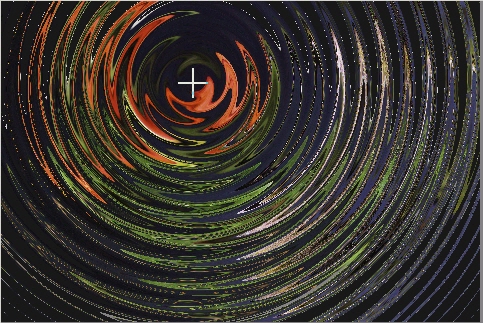

    The following figure results:

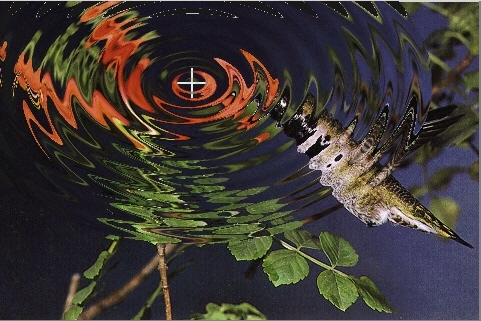

    As another settings, if you use the same settings except you use the PondRippleWave flag, the following figure results:

  • If the image has a region, the effect will be applied on the region only.

  • This command supports 12-bit and 16-bit grayscale and 48-bit and 64-bit color images. Support for 12-bit and 16-bit grayscale and 48 and 64 bit color images is available only in the Document/Medical toolkits.
  • This command does not support signed data images.
  • This command does not support 32-bit grayscale images.

For more information, refer to Removing Noise.

Example

Run the ZigZagCommand on an image and applies the ZigZag filter.

C#
VB
using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.SpecialEffects;

public void ZigZagCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample5.cmp"));

   // Prepare the command
   LeadPoint ptCenter = new LeadPoint(192, 82);
   RasterColor fillColor = new RasterColor(0, 0, 0);
   ZigZagCommand command = new ZigZagCommand();

   command.Amplitude = 47;
   command.Attenuation = 92;
   command.Frequency = 13;
   command.Phase = -162;
   command.CenterPoint = ptCenter;
   command.FillColor = fillColor;
   command.Flags = ZigZagCommandFlags.Color | ZigZagCommandFlags.RadialWave;
   command.Run(image);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS21\Resources\Images";
}
Imports Leadtools
Imports Leadtools.Codecs
Imports Leadtools.ImageProcessing.SpecialEffects

Public Sub ZigZagCommandExample()
   Dim codecs As New RasterCodecs()
   codecs.ThrowExceptionsOnInvalidImages = True

   Dim leadImage As RasterImage = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample5.cmp"))

   ' Prepare the command
   Dim ptCenter As LeadPoint = New LeadPoint(192, 82)
   Dim fillColor As RasterColor = New RasterColor(0, 0, 0)
   Dim command As ZigZagCommand = New ZigZagCommand

   command.Amplitude = 47
   command.Attenuation = 92
   command.Frequency = 13
   command.Phase = -162
   command.CenterPoint = ptCenter
   command.FillColor = fillColor
   command.Flags = ZigZagCommandFlags.Color Or ZigZagCommandFlags.RadialWave
   command.Run(leadImage)
   codecs.Save(leadImage, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24)

End Sub

Public NotInheritable Class LEAD_VARS
   Public Const ImagesDir As String = "C:\LEADTOOLS21\Resources\Images"
End Class
