BricksTextureCommand Class

Creates a brick texture that makes the image look like it has been drawn on a brick wall. This command is available in the Imaging Pro and above toolkits.
public class BricksTextureCommand : RasterCommand
Public Class BricksTextureCommand
   Inherits RasterCommand
public ref class BricksTextureCommand : public RasterCommand
  • This command creates a brick-like texture. Edges that are in the angle of the light source are brightened and the others are darkened. Apply this texture to an image by using image as the source image. You can obtain the best result by applying this command on a medium brightness image.
  • Using the shading option of BricksTextureCommandFlags.SmoothedOutEdges results in bricks that have a more chiseled look than the same settings with a shading option of BricksTextureCommandFlags.SmoothedInEdges.
  • As an example, suppose you were to start with a gray image, like the following figure:


  • Now suppose you call the BricksTextureCommand command. The following settings apply to all of the following figures:

    Parameter Value
    OffsetX 0
    OffsetY 0
    RowDifference 35
    BricksWidth 60
    BricksHeight 20
  • If you were to use the following additional settings:

    Parameter Value
    MortarRoughness 0
    MortarRoughnessEvenness 0
    BricksRoughness 0
    BricksRoughnessEvenness 0
    Flags BricksTextureCommandFlags.SmoothedOutEdges

    The following figure results:

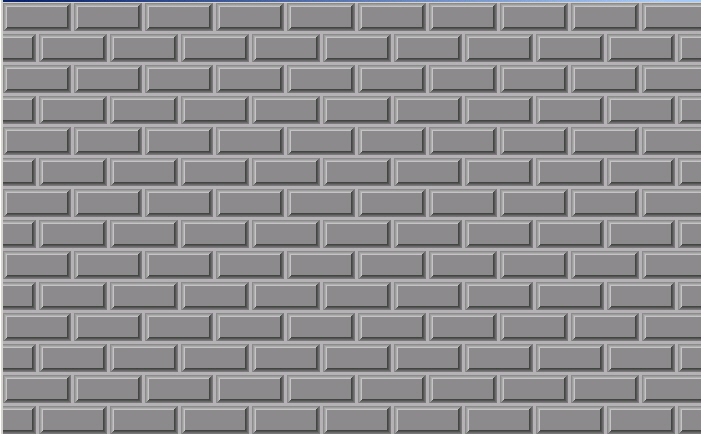

  • Note how smooth the surface of both the mortar and the bricks is. In the following figure, the only change from the previous settings is the value of BricksRoughness, which is set to 196:

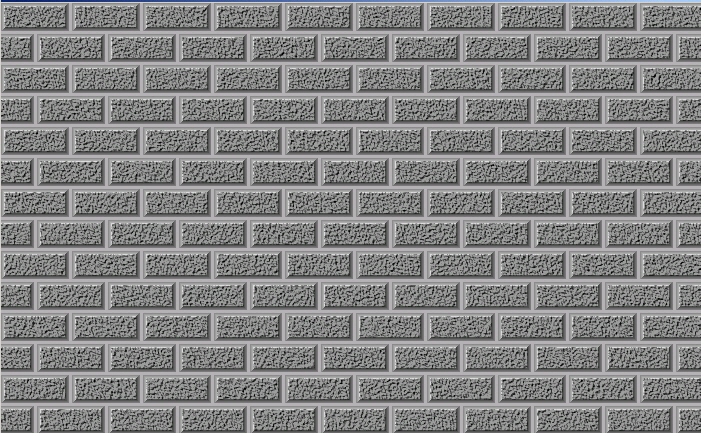

  • In the following figure, BricksRoughness remains set to 196 and in addition, BricksRoughnessEvenness is set to 4:


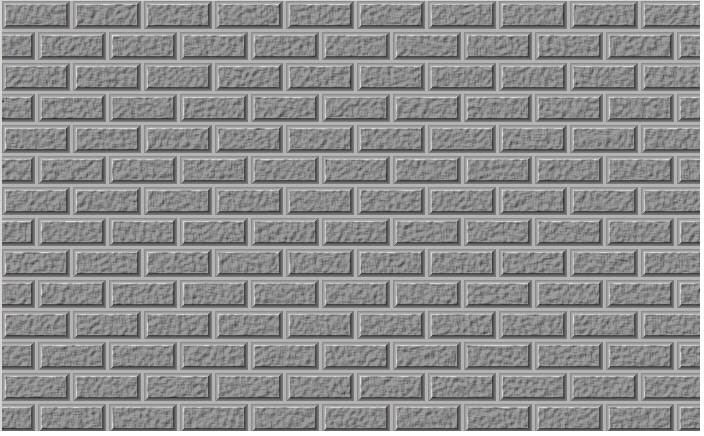

  • The next two figures show the difference between the BricksTextureCommandFlags.SmoothedOutEdges flag and the BricksTextureCommandFlags.SmoothedInEdges flag. For these figures the following settings are used:

    Parameter Value
    MortarRoughness 0
    MortarRoughnessEvenness 0
    BricksRoughness 250
    BricksRoughnessEvenness 0
    EdgeWidth 7
    MortarWidth 4

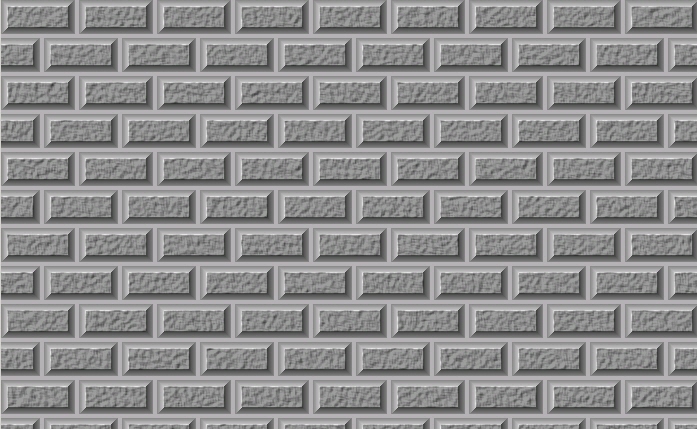

  • In the following figure the BricksTextureCommandFlags.SmoothedOutEdges flag is set:

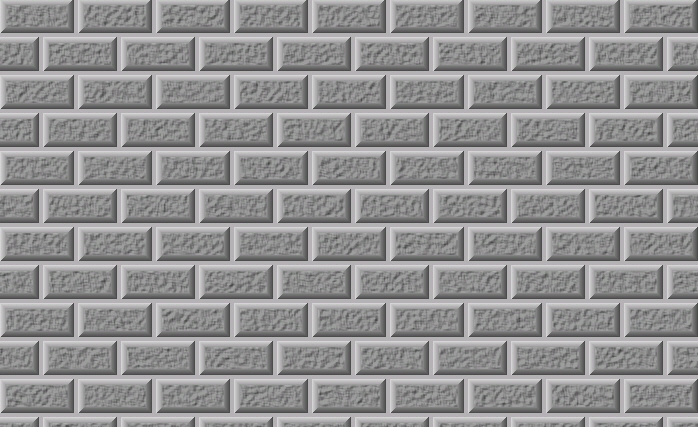

  • In the following figure the BricksTextureCommandFlags.SmoothedInEdges flag is set:


  • This command supports 12-bit and 16-bit grayscale and 48-bit and 64-bit color images. Support for 12-bit and 16-bit grayscale and 48-bit and 64-bit color images is available only in the Document/Medical toolkits.

  • This command does not support signed data images.
  • This command does not support 32-bit grayscale images.

For more information Refer to Applying Artistic Effects.


Run the BricksTextureCommand on an empty gray image.

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing;
using Leadtools.ImageProcessing.SpecialEffects;
public void BricksCommandExample()
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;
   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "ImageProcessingDemo\\Image3.cmp"));
   // Prepare the command
   FillCommand cmd = new FillCommand(new RasterColor(128, 128, 128));
   BricksTextureCommand command = new BricksTextureCommand();
   command.BricksWidth = 60;
   command.BricksHeight = 20;
   command.OffsetX = 0;
   command.OffsetY = 0;
   command.EdgeWidth = 3;
   command.MortarWidth = 4;
   command.ShadeAngle = 315;
   command.RowDifference = 33;
   command.MortarRoughness = 20;
   command.MortarRoughnessEvenness = 0;
   command.BricksRoughness = 10;
   command.BricksRoughnessEvenness = 0;
   command.MortarColor = new RasterColor(0, 0, 0);
   command.Flags = BricksTextureCommandFlags.SmoothedOutEdges | BricksTextureCommandFlags.TransparentMortar;
   //Apply Bricks Texture on the image.
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);
static class LEAD_VARS
   public const string ImagesDir = @"C:\LEADTOOLS21\Resources\Images";
Imports Leadtools
Imports Leadtools.Codecs
Imports Leadtools.ImageProcessing
Imports Leadtools.ImageProcessing.SpecialEffects
Public Sub BricksCommandExample()
   Dim codecs As New RasterCodecs()
   codecs.ThrowExceptionsOnInvalidImages = True
   Dim leadImage As RasterImage = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "ImageProcessingDemo\\Image3.cmp"))
   ' Prepare the command
   Dim cmd As New FillCommand(New RasterColor(128, 128, 128))
   Dim command As BricksTextureCommand = New BricksTextureCommand
   command.BricksWidth = 60
   command.BricksHeight = 20
   command.OffsetX = 0
   command.OffsetY = 0
   command.EdgeWidth = 3
   command.MortarWidth = 4
   command.ShadeAngle = 315
   command.RowDifference = 33
   command.MortarRoughness = 20
   command.MortarRoughnessEvenness = 0
   command.BricksRoughness = 10
   command.BricksRoughnessEvenness = 0
   command.MortarColor = New RasterColor(0, 0, 0)
   command.Flags = BricksTextureCommandFlags.SmoothedOutEdges Or BricksTextureCommandFlags.TransparentMortar
   'Apply Bricks Texture on the Image.
   codecs.Save(leadImage, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24)
End Sub
Public NotInheritable Class LEAD_VARS
   Public Const ImagesDir As String = "C:\LEADTOOLS21\Resources\Images"
End Class
