FreePlaneBendCommand Class

Summary

Wraps the image onto a 3D plane shaped by Curve. This command is available in the Imaging Pro and above toolkits.

Syntax
C#
VB
C++
public class FreePlaneBendCommand : RasterCommand

Public Class FreePlaneBendCommand
   Inherits RasterCommand
public ref class FreePlaneBendCommand : public RasterCommand

Remarks
  • If the image has a region, the effect will be applied on the region only.

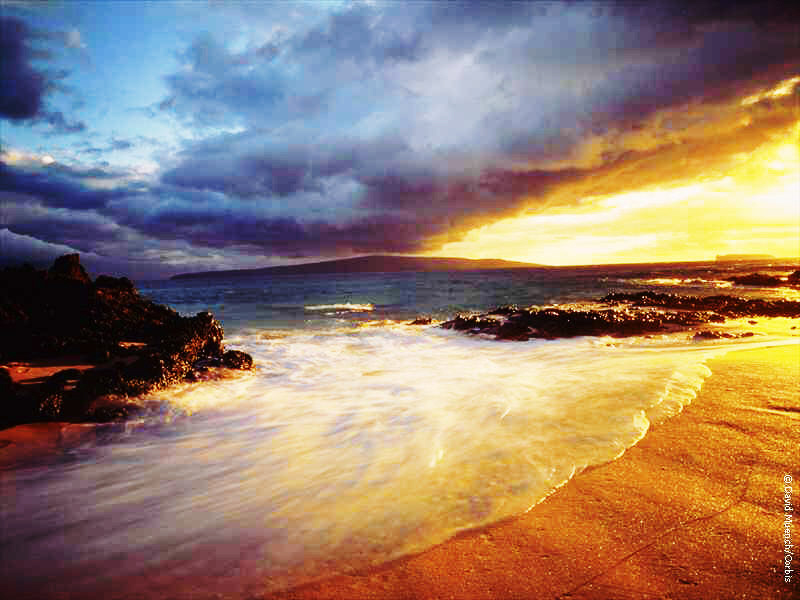

  • For an example, the following figure shows an image before the effect is applied.

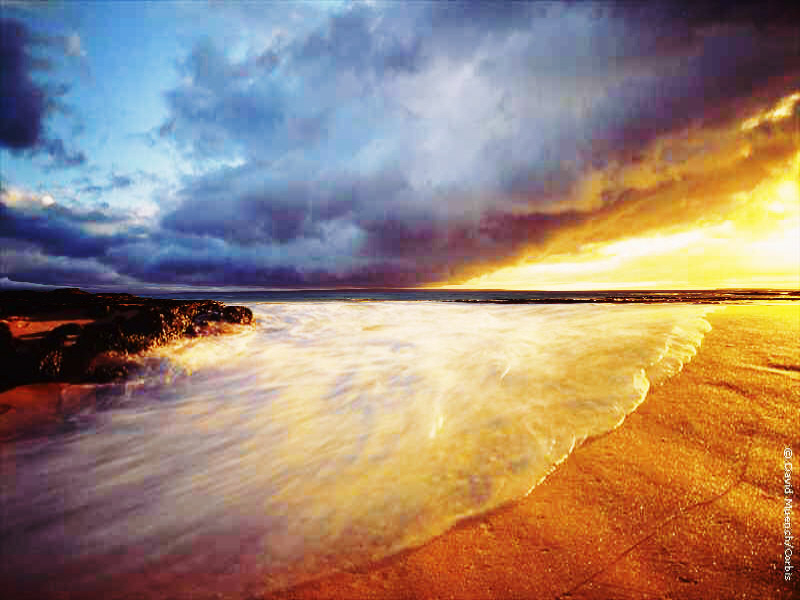

    The following figure shows the same image after the effect has been applied.

  • This command supports 12-bit and 16-bit grayscale and 48-bit and 64-bit color images. Support for 12-bit and 16-bit grayscale and 48-bit and 64-bit color images is available only in the Document/Medical toolkits.

  • This command does not support signed data images.
  • This command does not support 32-bit grayscale images.

Example

Run the FreePlaneBendCommand on an image.

C#
VB
using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.SpecialEffects;
using Leadtools.ImageProcessing.Effects;

public void FreePlaneBendCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample5.cmp"));

   // Prepare the command
   FreePlaneBendCommand command = new FreePlaneBendCommand();
   LeadPoint[] UserPoint = new LeadPoint[4];
   int[] Curve = new int[13];

   //Apply the filter
   UserPoint[0].X = 0;
   UserPoint[0].Y = 0;
   UserPoint[1].X = 3;
   UserPoint[1].Y = 10;
   UserPoint[2].X = 9;
   UserPoint[2].Y = -10;
   UserPoint[3].X = 12;
   UserPoint[3].Y = 0;

   EffectsUtilities.GetCurvePoints(Curve, UserPoint, CurvePointsType.Linear);
   for (int i = 0; i < Curve.Length; i++)
      Curve[i] /= 50;
   command.Flags = FreePlaneBendCommandFlags.Color | FreePlaneBendCommandFlags.Vertical;
   command.Scale = 200;
   command.FillColor = new RasterColor(255, 0, 0);
   command.Curve = Curve;
   command.Run(image);
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\Users\Public\Documents\LEADTOOLS Images";
}
Imports Leadtools
Imports Leadtools.Codecs
Imports Leadtools.ImageProcessing.SpecialEffects
Imports Leadtools.ImageProcessing.Effects

Public Sub FreePlaneBendCommandExample()
   Dim codecs As New RasterCodecs()
   codecs.ThrowExceptionsOnInvalidImages = True

   Dim leadImage As RasterImage = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample5.cmp"))

   ' Prepare the command
   Dim command As FreePlaneBendCommand = New FreePlaneBendCommand
   Dim UserPoint() As LeadPoint
   ReDim UserPoint(3)

   Dim Curve() As Integer
   ReDim Curve(12)

   'Apply the filter
   UserPoint(0).X = 0
   UserPoint(0).Y = 0
   UserPoint(1).X = 3
   UserPoint(1).Y = 10
   UserPoint(2).X = 9
   UserPoint(2).Y = -10
   UserPoint(3).X = 12
   UserPoint(3).Y = 0

   EffectsUtilities.GetCurvePoints(Curve, UserPoint, CurvePointsType.Linear)
   command.Flags = FreePlaneBendCommandFlags.Color Or FreePlaneBendCommandFlags.Vertical
   command.Scale = 200
   command.FillColor = New RasterColor(255, 0, 0)
   command.Curve = Curve
   command.Run(leadImage)
   codecs.Save(leadImage, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24)

End Sub

Public NotInheritable Class LEAD_VARS
   Public Const ImagesDir As String = "C:\Users\Public\Documents\LEADTOOLS Images"
End Class
