ColoredPencilCommand Class

Summary

Applies an effect to an image that makes it look like it has been drawn with colored pencils. This method is available in the Imaging Pro and above toolkits.

Syntax

C++

public class ColoredPencilCommand : RasterCommand


Public Class ColoredPencilCommand
   Inherits RasterCommand

public ref class ColoredPencilCommand : public RasterCommand

Remarks

This method applies an effect to an image that makes it look like it has been drawn with colored pencils.

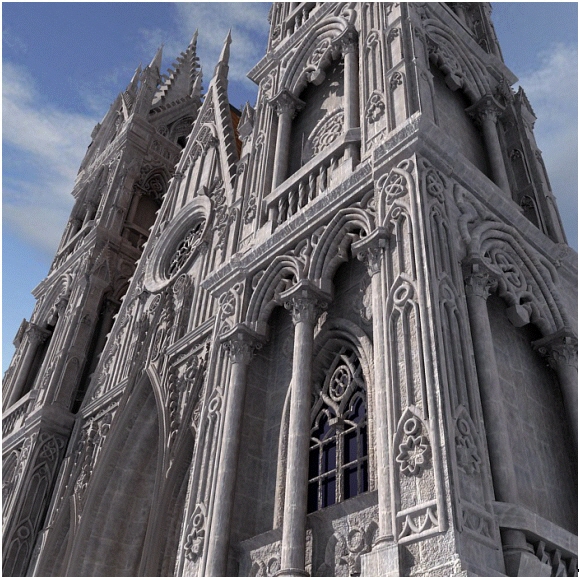

As an example, if you use the following figure:

If you call the ColoredPencilCommand using the following values:

Parameter Value

Ratio 90

Dimension 3

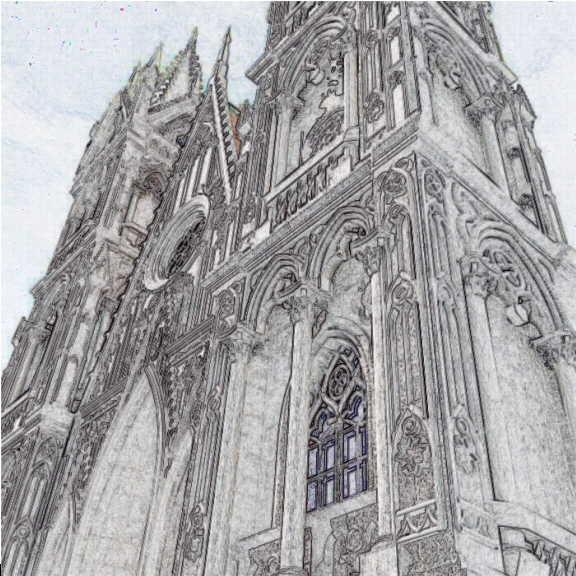

The following figure results:
This method supports 12-bit and 16-bit grayscale and 48-bit and 64-bit color images. Support for 12-bit and 16-bit grayscale and 48 and 64 bit Effects images is available only in the Document/Medical toolkits.
This method does not support signed data images.
This command does not support 32-bit grayscale images.

For more information, refer to Removing Noise.

Example

Run the ColoredPencilCommand on an image and applies the Colored Pencil filter.

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.SpecialEffects;

public void ColoredPencilCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, @"ImageProcessingDemo\NaturalFruits.jpg"));

   // Prepare the command
   ColoredPencilCommand command = new ColoredPencilCommand();
   command.Ratio = 50;
   command.Dimension = 3;
   command.Run(image);
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\Users\Public\Documents\LEADTOOLS Images";
}

Imports Leadtools
Imports Leadtools.Codecs
Imports Leadtools.ImageProcessing.SpecialEffects

Public Sub ColoredPencilCommandExample()
   Dim codecs As New RasterCodecs()
   codecs.ThrowExceptionsOnInvalidImages = True

   Dim leadImage As RasterImage = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "ImageProcessingDemo\\NaturalFruits.jpg"))

   ' Prepare the command
   Dim command As ColoredPencilCommand = New ColoredPencilCommand
   command.Ratio = 50
   command.Dimension = 3
   command.Run(leadImage)
   codecs.Save(leadImage, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24)

End Sub

Public NotInheritable Class LEAD_VARS
   Public Const ImagesDir As String = "C:\Users\Public\Documents\LEADTOOLS Images"
End Class

Requirements

Target Platforms

Reference

ColoredPencilCommand Members

Leadtools.ImageProcessing.SpecialEffects Namespace

Applying Artistic Effects

Removing Noise

ImpressionistCommand Class

DryCommand Class

ColoredPencilExtendedCommand Class
