DiffuseGlowCommand Class

Summary

Adds a colored glow to an image's light or dark areas, making these areas shine with a neon glow. This method is available in the Imaging Pro and above toolkits

Syntax

WinRT C#

C++

public class DiffuseGlowCommand : RasterCommand


Public Class DiffuseGlowCommand
   Inherits Leadtools.Imageprocessing.Leadtools.ImageProcessing.RasterCommand
   Implements Leadtools.Imageprocessing.Leadtools.ImageProcessing.IRasterCommand

public sealed class DiffuseGlowCommand : Leadtools.Imageprocessing.Leadtools.ImageProcessing.IRasterCommand

function Leadtools.ImageProcessing.SpecialEffects.DiffuseGlowCommand()

public ref class DiffuseGlowCommand : public Leadtools.Imageprocessing.Leadtools.ImageProcessing.RasterCommand, Leadtools.Imageprocessing.Leadtools.ImageProcessing.IRasterCommand

Remarks

This command adds pixels randomly to the image. A glow is added based on a combination of the pixel colors and the glow color.

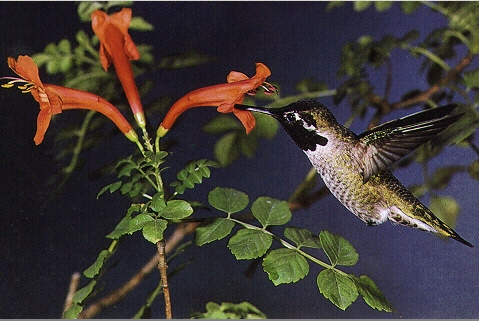

As an example, if you use the following image: And you were to call DiffuseGlowCommand using the following settings:

Parameter	Value
GlowAmount	50
ClearAmount	50
SpreadAmount	10
WhiteNoiseRange	10
GlowColor	white

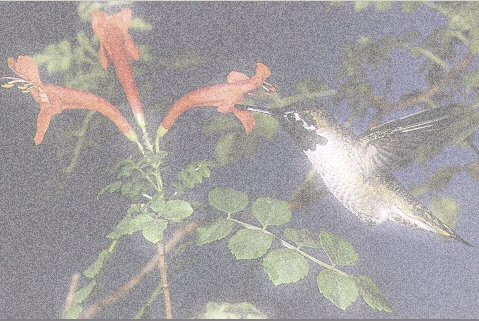

The following figure results:

If the image has a region, the effect will be applied on the region only.
This method supports 12-bit and 16-bit grayscale and 48-bit and 64-bit color images. Support for 12-bit and 16-bit grayscale and 48-bit and 64-bit color images is available only in the Document/Medical toolkits.
This method does not support signed data images.
This command does not support 32-bit grayscale images.

For more information, refer to Removing Noise.

Example

Run the DiffuseGlowCommand on an image and applies the Diffuse Glow filter.

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.SpecialEffects;

public void DiffuseGlowCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample5.cmp"));

   // Prepare the command
   RasterColor fillColor = new RasterColor(255, 255, 255);
   DiffuseGlowCommand command = new DiffuseGlowCommand();
   command.GlowAmount = 50;
   command.ClearAmount = 50;
   command.SpreadAmount = 10;
   command.WhiteNoiseRange = 10;
   command.GlowColor = fillColor;
   command.Run(image);
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\Users\Public\Documents\LEADTOOLS Images";
}

Imports Leadtools
Imports Leadtools.Codecs
Imports Leadtools.ImageProcessing.SpecialEffects
      Leadtools.Examples.Support.SetLicense()

Public Sub DiffuseGlowCommandExample()
   Dim codecs As New RasterCodecs()
   codecs.ThrowExceptionsOnInvalidImages = True

   Dim leadImage As RasterImage = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample5.cmp"))

   ' Prepare the command
   Dim fillColor As New RasterColor(255, 255, 255)
   Dim command As New DiffuseGlowCommand
   command.GlowAmount = 50
   command.ClearAmount = 50
   command.SpreadAmount = 10
   command.WhiteNoiseRange = 10
   command.GlowColor = fillColor
   command.Run(leadImage)
   codecs.Save(leadImage, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24)

End Sub

Public NotInheritable Class LEAD_VARS
   Public Const ImagesDir As String = "C:\Users\Public\Documents\LEADTOOLS Images"
End Class
